Broiler Feed Production Line in Afghanistan
After comparing several equipment manufacturers, we finally chose RICHI, and it was definitely the right choice! This broiler feed production line is a perfect fit for our local power supply and factory conditions, and the machines run very smoothly. From the initial planning to the final setup, everything was handled in one go. We had no experience whatsoever, but we were able to start production smoothly.
— Client Feedback
Project Overview
Сountry:
Afghanistan
Investment Cost:
$55,100 USD
Product Demand:
Mash&Pellet&Crumble
Production Capacity:
1-2 Tons Per Hour
Raw Materials：Wheat, corn, soybean meal, wheat bran, fish meal, premix, limestone powder, salt. The raw materials need to be ground into a fine powder.
Product Requirements：Produce powdered, pelleted, and crumbled feed suitable for broiler chickens. Feed pellets with a diameter of 2-4 mm.
Packaging Specifications：Packaged in bags. Each bag weighs 25-50 kg. Sealed with thread.
Capacity Requirements：Stable production capacity of 1-2 T/H, with continuous and stable operation capability.
Automation Requirements：Apart from the packaging process, other production processes require almost no manual intervention and are all operated by a single button in an electronic control cabinet.
Core Needs：The client requires us to provide a complete design solution for a broiler feed production line and to be fully responsible for transportation, installation, commissioning, and operation training.
Why the Client Choose RICHI
This Afghan client was investing in a factory for the first time and lacked practical experience in equipment procurement, on-site installation and commissioning, as well as familiarity with the complete broiler feed production process. Therefore, the client hoped that the supplier could provide a one-stop turnkey service, taking full responsibility for all aspects of the production line, including planning, equipment manufacturing, cross-border logistics, and on-site installation and commissioning.
The client required that this broiler feed production line could flexibly produce powdered feed, finished pelleted feed, and crushed feed to match the feeding needs of broilers at different growth stages. The client had previously contacted several suppliers, but their overseas turnkey project experience was limited, and their supporting service systems were incomplete, failing to meet the client’s needs.
Subsequently, the client learned that RICHI Manufacture possessed mature turnkey capabilities for complete feed plant projects, and the company had previously implemented a large-scale poultry feed project in Afghanistan. After visiting the completed project, the client fully recognized our technology and delivery capabilities and ultimately selected RICHI as the contractor for this project.

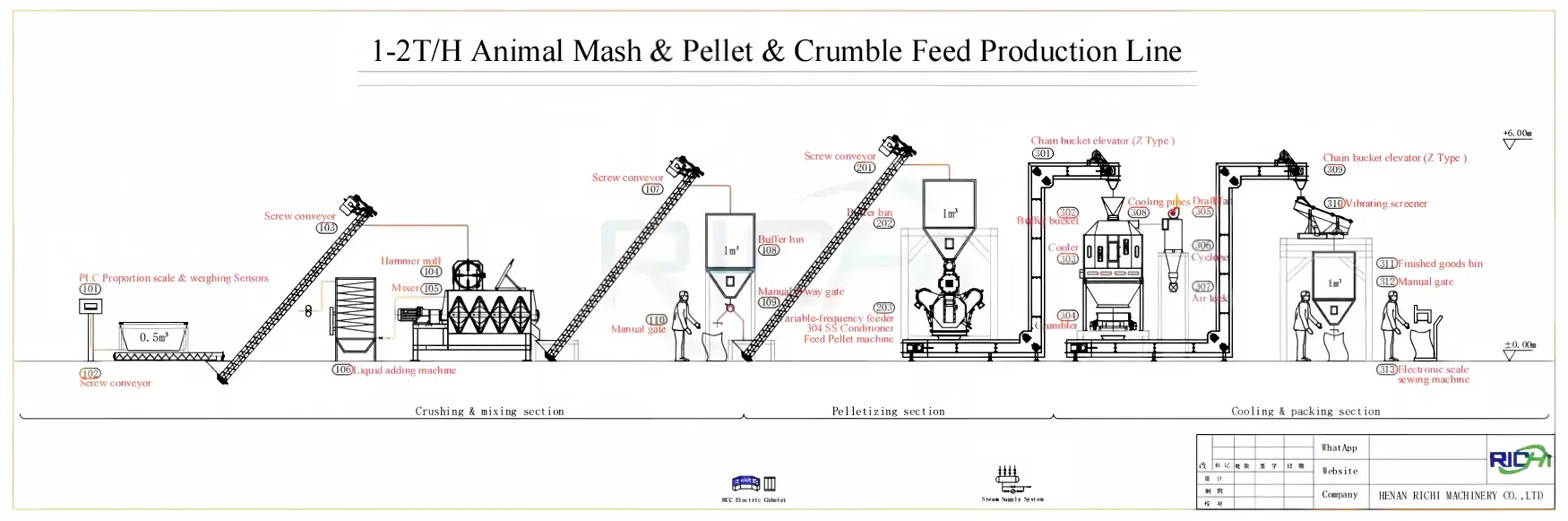

Afghanistan Customized Broiler Feed Production Line
This 1-2T/H broiler feed production line in Afghanistan, which integrates powder, pellets, and crushed feed, follows a segmented and modular design. The entire line is divided into a batching section, a crushing and mixing section, a powder packaging section, a pelleting section, a cooling section, and a pellet packaging section. A single production line can flexibly produce three types of broiler feed products: powder, whole pellets, and crushed pellets, comprehensively adapting to the feeding needs of broiler farming at all stages in the local area.
1
Batching Section:
First, use a PLC batching scale to accurately weigh and proportion raw materials such as corn, wheat and soybean meal according to the formula, ensuring a stable nutritional formula for broiler feed. The proportioned raw materials are stored in a 0.5m³ storage silo and then fed into the feed grinder via a screw conveyor.
2
Crushing & Mixing Section:
Next, use a feed hammer mill to grind materials such as corn, wheat, wheat bran, and rice bran to a suitable fineness for broiler feed improves feed digestibility and absorption. Then, feed the crushed materials into the mixer for thorough stirring and mixing. Evenly add oils and liquid additives using the liquid addition system to enhance the palatability and nutritional value of the broiler feed.
3
Pelleting Section:
A conveyor transports the mixed ingredients into a chicken feed pellet mill, which presses them into pellets. The pellet mill features a steam conditioner that softens materials, gelatinizes starch, increases pellet durability, and aids broiler digestion.
4
Cooling and Crumbling Section:
Freshly produced high-temperature, high-humidity pellets must be cooled and dried to reduce moisture and prevent mold growth. A portion of the cooled pellets is crumbled into fine fragments specifically for chicks. Another portion is fed to a vibrating grading screen to remove fine powder; the qualified-sized broiler feed pellets are stored in the finished product buffer silo.
5
Packaging Section:
The packaging process requires manual bagging, quantitative weighing, and sealing and packing.
Equipment Configuration
The Afghanistan broiler feed production line includes systems for ingredient preparation, grinding, mixing, pelleting, cooling, crushing, screening, quantitative packaging, as well as auxiliary systems for conveying and dust removal. Each piece of equipment operates smoothly with no material waste.
| Equipment Configuration | Number (unit) |
|---|---|
| PLC Batching Scale | 1 |
| Animal Feed Hammer Mill | 1 |
| Animal Feed Mixer Machine | 1 |
| Chicken Feed Pellet Making Machine | 1 |
| Counterflow Pellet Cooling Machine | 1 |
| Poultry Feed Crumbler | 1 |
| Vibrating Screening Machine | 1 |
| Automatic Packaging Machine | 1 |
| Screw Conveyor | 3 |
| Z Type Bucket Elevator | 2 |
| Cyclone Separator | 1 |
Our Turnkey Project Service Process
RICHI Manufacture carefully figure out exactly what our clients needs. With that in mind, we offer full one‑stop services for their broiler chicken production line in Afghanistan. We don’t just sell standard machines; instead, we tailor the whole solution specifically for them. From understanding their exact needs at the start to providing long‑term after‑sales support later on, we help our clients stay competitive for years to come.
Tailor‑Made Project Solutions
We plan broiler chicken feed production lines built exactly for your situation. We take your raw material types and features, final feed products, production capacity, pellet sizes, workshop space, investment cost and local power supply into full consideration.
Equipement Manufacturing
Once the final design is approved, we start making your machines right away. All our equipment is built within RICHI’s own workshop. Every finished machine gets a strict full‑unit check and factory trial run before it leaves our plant.
Logistics and Delivery
After production is done, we pack your core equipment, supporting machines and spare parts by category. We take care of all customs‑clearance paperwork and book ocean shipping to send the cargo to your required port.
On-site Installation & Commission
When all machines reach your plant, our experienced engineers will come to your site. They help assemble the equipment, fit pipes and run electric cables. We keep monitoring the whole test run until the production line works steadily and hits your expected production targets.
Operation & Maintenance Training
After the production line is installed, our engineers will provide systematic operation training, including equipment operation methods, daily maintenance, replacement of vulnerable parts, and troubleshooting of common faults.
Warranty & After-Sales Support
All equipment enjoys a 12‑month warranty. Additionally, we keep in regular touch after delivery and can supply original spare parts for years to come. When your machine breaks down, our technicians can check the problem remotely or come to your site for repairs as you require.
