Precision-Engineered Sinking Fish Feed Machine
Sinking Fish Feed Machine Overview
The sinking fish feed machine is a specialized device for producing sedimentary or slow-sedimentary fish food pellets. It can precisely control the processing process of various raw materials to produce high-quality feed grains.
Not only that, but our machine also possesses powerful versatility. In addition to producing fish feed grains, it can also produce shrimp and crab feed. Our device can precisely adjust parameters according to the needs of different breeding objects to produce the most suitable feed grains.
- Capacity：0.5-40 T/H
- Pellet Size: 2-12 mm
- Customization Available: Yes
- International Certification: CE, ISO, SGS, BV, etc.
Hot-selling sinking fish feed Machine model
RICHI sinking fish feed machines mainly include two types: fish feed pellet mills and fish feed extruders. These two machines use different feed processing technologies. The fish feed pellet making machine compresses raw materials into dense pellets through strong pressure between the ring die and rollers. In contrast, the fish feed extruder processes materials under high temperature and pressure. It cooks and modifies the material inside the extrusion chamber. When the material is pushed out from the die holes, it expands and puffs up rapidly. As a result, it forms porous and loose feed pellets.

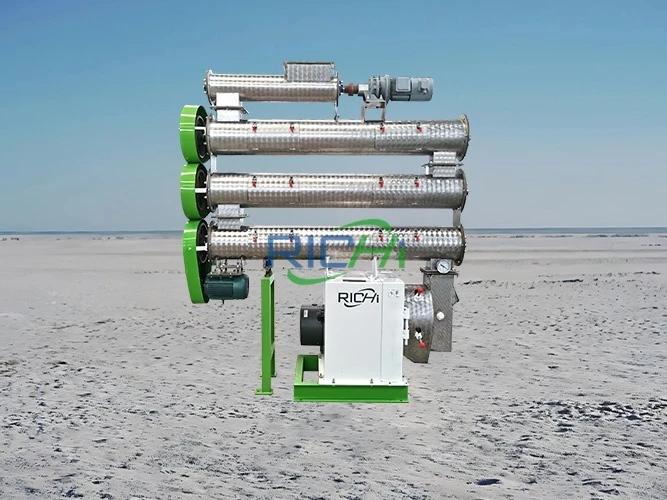

Fish Feed Pellet Making Machine
- Capacity: 1-40 T/H
- Main Motor Power: 22-315 kW

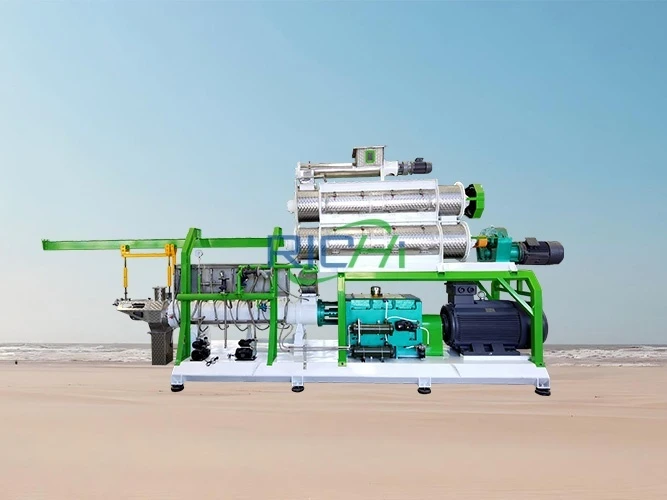

Fish Feed Extruder Machine
- Capacity: 0.5-12 T/H
- Main Motor Power: 37-355 kW
RICHI sinking fish feed Machine parameters
Fish Feed Pellet Making Machine
RICHI fish feed pellet making machine includes the ring die pellet mill and the flat die pellet mill. We recommend that customers purchase ring die feed pellet mills because they have higher capacity, more uniform pellets, and longer die life, resulting in long-term overall benefits that far exceed those of flat die pellet mills.
| Model | SZLH-250 | SZLH-320 | SZLH-350 | SZLH-420 | SZLH-508 | SZLH-558 | SZLH-678 | SZLH-768 |
| Capacity（T/H） | 1.0-1.5 | 3-4 | 5-6 | 10-12 | 15-16 | 20-22 | 30-33 | 38-40 |
| Main Motor Power(kW) | 22 | 37 | 55 | 110 | 160 | 185 | 250 | 315 |
| Feeder Power(kW) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Conditioner Power(kW) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 | 11 | 11 |
| Ring Die Diameter（mm） | 250 | 320 | 350 | 420 | 508 | 558 | 673 | 762 |
| Pellet Diameter(mm) | 2~12 | |||||||
Wet Type Fish Feed Extruder
The wet type fish feed extruder includes single-screw fish feed extruder and dual-screw fish feed extruder depending on the number of screws.
1. Wet-Type Single-Screw Fish Feed Extruder
| Model | DSP-90B | DSP-135B |
| Main Power (kW) | 37 | 75 |
| Feeding Power (kW) | 7.5 | 7.5 |
| Conditioning Power (kW) | 1.1 | 2.2 |
| Cutting Power （kW） | 1.1 | 1.5 |
| Screw Diameter (mm） | 90 | 135 |
| Capacity (T/H) | 0.5-0.6 | 0.8-1.0 |
| Overall Dimension (mm) | 2600*1600*1900 | 3750*1980*1950 |
2. Wet-Type Dual-Screw Fish Feed Extruder
| Model | SPHS75*2 | SPHS120*2 | SPHS150*2 | SPHS185*2 | |
| Capacity (T/H) | 0.5-1.0 | 1.5-2.0 | 3.0-4.0 | 5.0-6.0 | 10-12 |
| Main Power (kW) | 55 | 90 | 110 | 200 | 355 |
| Feeder Power (kW) | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Conditioner Model | DC400-244 | DC500-244 | DC500-244 | DC600-300 | DC600-300 |
| Conditioner Power (kW) | 7.5 | 11 | 11 | 11 | 11 |
| Dual-Shaft Differential Conditioner Model | DC400*300-244 | DC500*400-300 | DC500*400-300 | DC600*500-300 | DC600*500-300 |
| Dual-Shaft Differential Conditioner Power (kW) | 11 | 11 | 11 | 15 | 15 |
| Screw Diameter (mm） | 75 | 120 | 120 | 150 | 185 |
Capacity varies depending on formulation, bulk density, and sinking/floating requirements. Customized screw configurations available.
Because RICHI’s technology is constantly being updated and iterated, we will continuously upgrade and innovate our equipment. Therefore, the specific equipment parameters are subject to the actual quotation. We will provide more professional customized design and production services for each customer.
Technical features of RICHI Sinking Fish Feed Machine
Our sinking fish feed machine is efficient and stable, capable of continuous operation, supporting long-term production. The machine employs durable, abrasion-resistant materials and precision manufacturing processes, providing reliable performance and long lifespan.
In addition, our sinking fish feed making machine meets multiple international certifications such as ISO9001, CE, BV, and SGS. These certifications ensure product quality stability and safe operation, and comply with global market requirements. Therefore, customers can use this machine with confidence.
The technical advantages of each key component are detailed below. Each component contributes to improving production efficiency and optimizing feed processing effects.
Ring Die & Press Rollers
- Made of high-quality alloy steel with wear and corrosion resistance for a long service life. Ensures stable pelleting, high pellet density and good sinking performance. Supports quick switching between 2–12mm particle sizes to meet the feeding needs of different fish species.
Gear Transmission
- Transmission efficiency reaches up to 98% for higher energy savings.
- Delivers large output torque to adapt to high-compression-ratio materials.
- Designed with hard-tooth-surface gears (carburizing, quenching + gear grinding), featuring long service life and low maintenance cost.

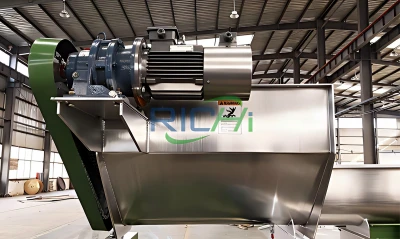

Variable-Frequency Feeder
- Automatically adjusts feeding speed and volume according to material properties and flow rate to avoid blockage or idling.
- Built-in screw conveyor ensures continuous and stable material feeding into the pelleting chamber, making it suitable for high-oil formulas.
Three-Layer Conditioner
- Equipped with a three-layer conditioner to greatly extend conditioning time. It fully gelatinizes starch and improves pellet water resistance and digestibility.
- Conditioning time and temperature are adjustable.
Siemens Motor
- Highly efficient and energy-saving, reducing operating costs.
- Waterproof and dustproof, it runs stably under various extreme working conditions.
Cutter Device
- The distance between the cutter and the ring die is adjustable to produce fish feed pellets of different lengths.
- The blade has a flat, thin edge to ensure smooth pellet cross-sections.
Videos of RICHI Sinking Fish Feed Machine
The video below showcases our sinking fish feed machine in real-time operation across various fish feed production lines. We invite you to witness firsthand the powerful performance, exceptional stability, and superior product quality delivered by this core piece of equipment.
worldwide Cases of RICHI sinking Fish Feed Machine
RICHI sinking fish feed machines have been successfully exported to many countries and regions across the globe. They are widely recognized for their high efficiency, stable output and excellent pellet quality, and highly praised by aquafeed producers worldwide.
5-6 T/H Sinking Fish Feed Machine for Sale Russia
A large Russian aquatic feed producer has purchased a sinking fish feed machine to produce high-end sinking fish feed for cold-water fish such as trout, sturgeon, catfish, and salmon.
1-2 T/H Sinking Fish Feed Making Machine in Indonesia
An Indonesian customer purchased a sinking fish feed making machine to produce sinking and slow-sinking fish feed pellets suitable for carp and bass. In addition, the equipment can also produce shrimp feed pellets to meet the feed needs of Indonesian shrimp farming.
10-12T/H Sinking Fish Feed Machine for Sale Algeria
This Algerian customer purchased a heavy-duty sinking fish feed machine, capable of continuous and stable production. Furthermore, by adjusting the formula, the machine can also produce chicken feed.
500 KG/H Sinking Fish Feed Making Machine in Bangladesh
A small feed processing plant in Bangladesh purchased a fish feed extruder to produce feed for sinking fish. It also purchased a chicken feed pellet making machine to produce pellets for broilers and laying hens.
3-4 T/H Sinking Fish Feed Machine for Sale Iran
The sinking fish feeder purchased by this Iranian customer can simultaneously produce sinking and slow-sinking feeds suitable for trout, bass, and whiteleg shrimp, as well as chicken feed.
1.5-2T/H Sinking Fish Feed Making Machine in Nigeria
A Nigerian aquaculture feed company uses our sinking fish feed making machine to produce sinking and slow-sinking feeds to meet the needs of local fish farmers raising catfish, tilapia, and ribbonfish.
Versatile Applications for Various Aquatic Species
Richi sinking fish feed machine can processes a wide variety of raw materials, including maize, soybean meal, fish powder, wheat bran, rapeseed meal, and various grain byproducts. Through steam conditioning and high-temperature compression, it can produce stable-quality slow-sinking, or sinking pellet feed. With its strong formula adaptability and precise density control, it can meet the diverse feed needs of various aquatic animals such as fish, shrimp, and crabs.
soybean meal
wheat
corn
fish meal
fish oil
mineral additive
catfish
trouts
salmon
shrimp
crab
lobster
Other Equipment in a Fish Feed Production Line
RICHI sells not just the sinking fish feed machine, but also the whole set of aqua feed machine for feed production lines like grinding machines, mixing machines, drying machines, pellet cooling machines, screening machines, packaging machines and more.
Ultra-Fine Grinder
Liquid Adding Machine
Feed Drying Machine
Counterflow Pellet Cooler
Storage Silo
Vibrating Screen
oil coating machine
Frequently Asked Questions
Below are some questions you may have. If you have any inquiries, please feel free to contact us.
–
How well do your sinking fish feed mills handle high-oil formulations?
Our sinking fish feed machine utilizes a high-compression-ratio ring die and a forced feeding system to ensure that high-oil materials are still tightly formed, resulting in smooth, non-loose pellets. The pressure rollers and ring die are specially coated to reduce material slippage or die blockage caused by oil. However, if your formulation contains more than 10% oil, we recommend using an oil spraying machine to apply the coating after the pellets have cooled.
–
How long is the service life of wear parts (screw, barrel, die)?
With proper maintenance, our wear-resistant alloy steel components typically last 1000+ hours, depending on the abrasiveness of the raw materials.
–
How much does a sinking fish feed making machine cost?
The price depends on capacity, configuration, and automation level. Please contact us with your requirements (capacity, target species, pellet type) for a customized quotation.
–
Can the pellet size be adjusted according to different fish growth stages?
Yes. By changing the ring mold of the sinking fish feed making machine and adjusting the cutting device, the size and length of the pellets can be precisely controlled to meet the feeding needs of fish of different sizes (from fry to adults).
–
What kind of after-sales service do you offer?
RICHI Machinery provides a 12-month warranty on its sinking fish feeders. In addition, we offer a long-term supply of original spare parts at competitive prices. Furthermore, RICHI provides on-site installation and operation training services for all customers. (view our YouTube)
