Organic Fertilizer Production Line in Germany
Overview of Organic Fertilizer Production Line in Germany
— Richi Machinery —
10 T/H
Capacity（tons/hour）
6-8 mm
Pellet Size（mm）
90 Days
Installation Period（days）
$195,500
Guide Price（USD）
Brief Introduction
Germany stands as one of Europe’s largest, most mature, and most stable organic fertilizer markets. The country maintains rigorous environmental standards, imposing strict regulations on the processing of waste materials such as bio-waste, sewage sludge, and livestock manure. Concurrently, Germany boasts the largest area of organic farmland in Europe, generating a substantial demand for organic fertilizers.
Keenly recognizing this market opportunity, the German client decided to invest in the construction of an organic fertilizer production line. Their objective was to fully leverage abundant local organic waste resources—transforming them into high-value organic fertilizer granules—to supply both the domestic market and surrounding regions.
After conducting extensive research and comparisons, the client ultimately chose to partner with us. They commissioned us to custom-design and build a 3–4 tons/hour organic fertilizer production line, specifically engineered to process livestock manure—along with agricultural residues such as crop stalks and straw—into granulated fertilizer.
Key Equipment of Organic Fertilizer Production Line in Germany
RICHI has supplied a complete set of production equipment for the organic fertilizer production line in Germany, covering the entire process flow—from raw material crushing, batching, and mixing to granulation, cooling, and screening, through to the final packaging of the finished product. Additionally, we provided the client with auxiliary equipment such as conveyors, pulse dust collectors, and silos.
| Main Machine | Application in Organic Fertilizer Production Line in Germany |
| Water Drop Hammer Mill | Grinding the raw materials into mesh ( < 3 mm) |
| Fertilizer Mixer Machine | Mixing different raw materials evenly |
| Liquid Adding Machine | Adding liquid addition |
| Organic Fertilizer Pellet Making Machine | Turning powdery materials into dense pellets |
| Counterflow Pellet Cooler | Cooling down the pellets |
| Vibrating Screen Machine | Screening finished pellets |
| Automatic Packaging Machine | Weighing and packing the finished pellets |
Water Drop Hammer Mill
Liquid Adding Machine

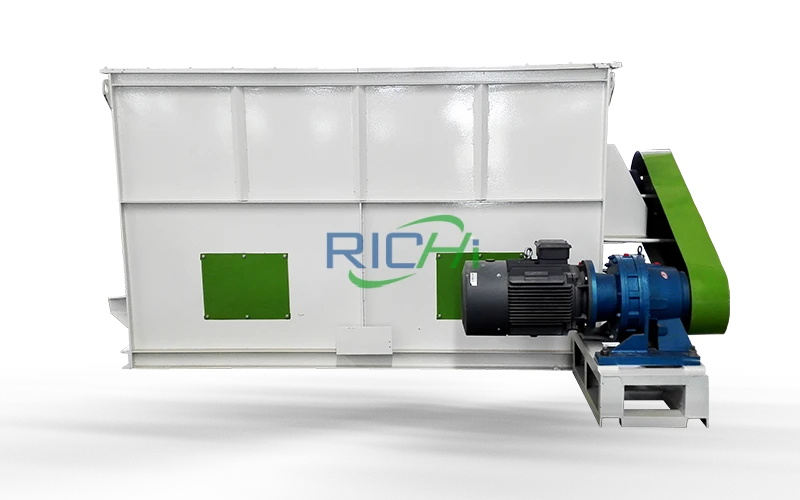

Fertilizer Mixer Machine
Organic Fertilizer Pellet Making Machine
Raw Materials of Organic Fertilizer Production Line in Germany
This organic fertilizer production line in Germany processes a wide variety of raw materials, including agricultural waste such as straw, rice husks, and rice straw, as well as animal manure such as cow dung, pig dung, and sheep dung, kitchen waste, and rotten fruits and vegetables.
Wheat Straw
Corn Stalk
Rice Husks
Forage Grass
Bagasse
Soybean Meal
Chicken Manure
Cow Dung
Sheep Manure
Pig Manure
Horse Manure
Food Waste

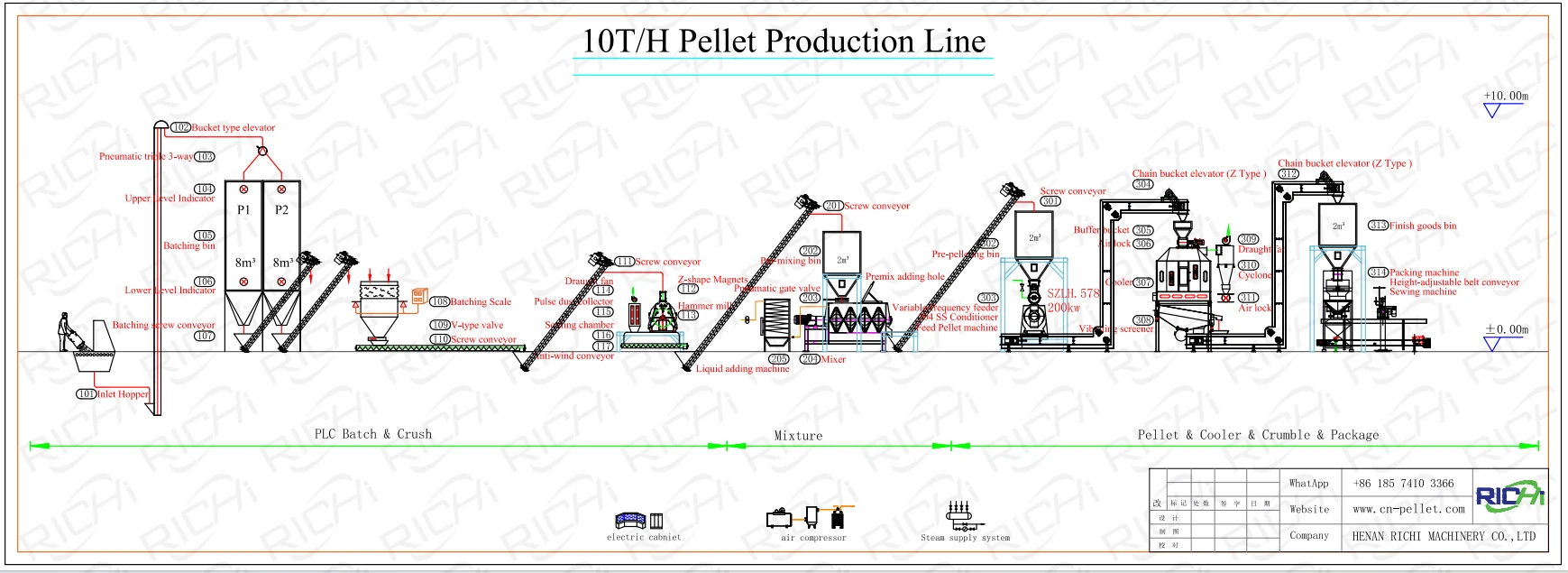

Process Flow of Organic Fertilizer Production Line in Germany
The organic fertilizer production line designed by RICHI for this German customer features an automated control system and encompasses a comprehensive and efficient process covering crushing, batching and mixing, pelletizing, cooling, screening, and packaging. All processes are smoothly connected.
1
Fermentation & Maturation Process:
First, put raw materials such as livestock manure, straw, rice husk and food waste into a fermentation tank for high-temperature fermentation to kill bacteria and insect eggs and remove odors. During fermentation, a compost turner is used to continuously turn the materials.
2
Batching Process:
Add trace elements (NPK) or probiotics to adjust the nutrient ratio of the fertilizer.
3
Crushing Process:
Crush the fermented materials into uniform powder to improve the subsequent pelleting effect.
4
Mixing Process:
Mix the crushed materials with trace elements evenly.
5
Pelleting Process:
Feed the well-mixed materials into the organic fertilizer pellet mill. Under the pressure of the ring die and press rollers, the materials are extruded from the die holes to form long strips. At the same time, cutters outside the ring die cut the long strips into small pellets of uniform length as preset.
6
Cooling & Screening Process:
Send the newly pressed high-temperature organic fertilizer pellets into a counterflow pellet cooler to cool down to room temperature. The cooled pellets are screened by a vibrating sieve to obtain qualified products. Oversized or undersized pellets are recycled for secondary processing.
7

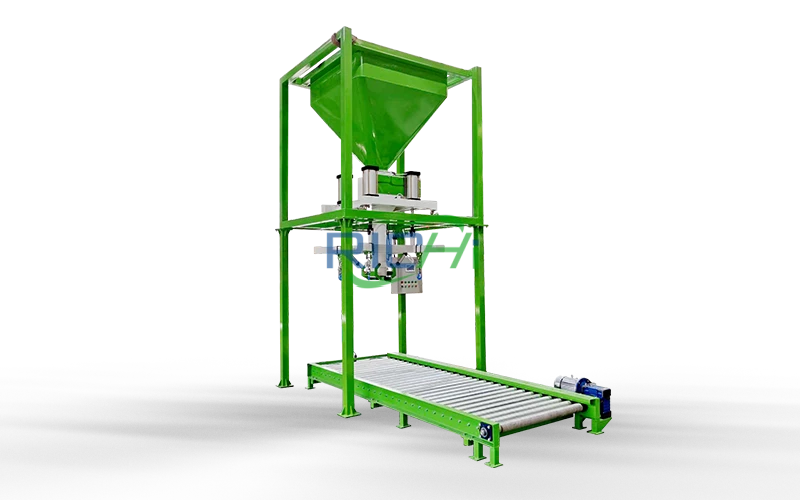

Packaging Process:
An automatic packing machine weighs and bags the finished pellets according to the preset weight, with each bag being 20 kg or 50 kg.
Full-Service Process of Organic Fertilizer Production Line in Germany
RICHI Machinery deeply analyzes our client’s requirements. Based on this, we provide end-to-end turnkey services for this Germany organic fertilizer production line project. Our core offering is a fully customized solution. It goes far beyond basic equipment supply. Furthermore, every stage—from targeted demand analysis to lifelong after-sales support—is designed to help you gain lasting competitive advantages.
Needs Assessment
We start with detailed communication to fully understand your raw materials, target capacity, and product requirements. Our team is always ready to support you. Feel free to contact us.
Customized Engineering
We develop customized process flows and plant layouts, enabling efficient production of organic compound fertilizer.
Specialized Manufacturing
We select high-quality raw materials and adopt advanced production technologies in the industry to carefully build high-performance organic feed machine for customers, ensuring stable operation
On-Site Implementation
Our experienced engineers handle installation and commissioning at your site. We ensure the line runs smoothly and reaches its designed production capacity.
Operator Training
We provide hands-on training covering operation, maintenance, formula adjustment, and emergency handling.
Sustained Support
We offer continuous technical support, maintenance guidance, and spare parts supply to ensure long-term performance. (View our YouTube)
