Corn Stalk Pellet Machine
RICHI Corn Stalk Pellet Machine Overview
RICHI corn stalk pellet machine can process corn stalks, wheat stalks, rice straw and other biomass into fuel pellets, animal bedding, organic fertilizer and even ruminant feed.
Our machine offers flexible production capacities, ranging from 0.5 tons to 8 tons per hour, and can be customized to meet specific customer needs. We provide comprehensive turnkey solutions, from design to delivery, creating complete production lines to ensure a worry-free experience for our clients.
- Capacity: 0.5-8 T/H (standard models)
- Main Motor Power: 22-250 kW
- Pellet Size: 4-12 mm
- Customization Available: Yes
- International certification: CE, ISO, SGS, BV, etc.
Technical Features of RICHI Corn Stalk Pellet Machine
Corn stalks have high fiber content and light texture. If you process them with an ordinary corn stalk pellet machine, you will easily face problems like die clogging, fast wear and unstable pelletizing.
Therefore, RICHI has specially optimized the structure design and key components of the corn stalk pellet machine for corn stalk pelletizing.
RICHI’s advantage does not lie in a single part. Instead, it builds a complete pelletizing system that meets the specific needs of corn stalk pelletizing. Every core component of RICHI corn stalk pellet machine is carefully designed. It balances durability, stability and efficiency, and provides a cost-effective solution for high-quality corn stalk pelletizing.
01
Transmission System
We use a high-precision gear transmission system with transmission efficiency of over 98%. This makes our machine more efficient and energy-saving compared with traditional belt drives.
02
Ring Die & Press Rollers
Adopting premium 42CrMo alloy steel and carburizing heat treatment, our ring dies and press rollers exhibit outstanding hardness and remarkable wear resistance.
03
Anti-Bridging Feeder
The feeding hopper is fitted with a rotating lever that efficiently prevents bridging and blockage caused by corn stalk, ensuring raw materials flow steadily into the pelletizing chamber.
04
Forced Feeder
A worm gear reducer is adopted to provide strong extrusion pressure, enabling smooth material extrusion through the ring die and production of high-density pellets.
05
Cutting Device
Our cutter adopts replaceable high-hardness blades for precise, clean cutting, resulting in pellets with highly uniform length.
06
Overload Protection Device
The machine comes with a safety pin that cuts off power transmission immediately under abnormal loads, effectively protecting the machine from damage, reducing maintenance costs, and ensuring safety for operators and equipment.
RICHI Corn Stalk Pellet Machine Models &Technical Parameters
RICHI offers corn stalk pellet machines with various capacities to meet different production needs. Custom capacity options are also available. Additionally, if you are producing animal feed, you can choose a corn stalk pellet mill with a conditioner.

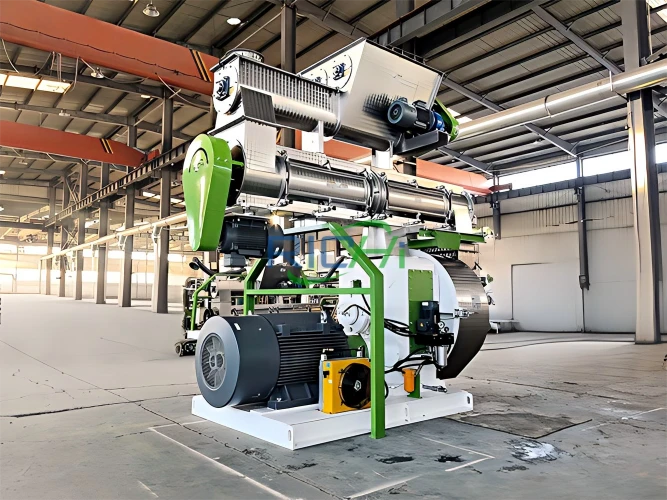

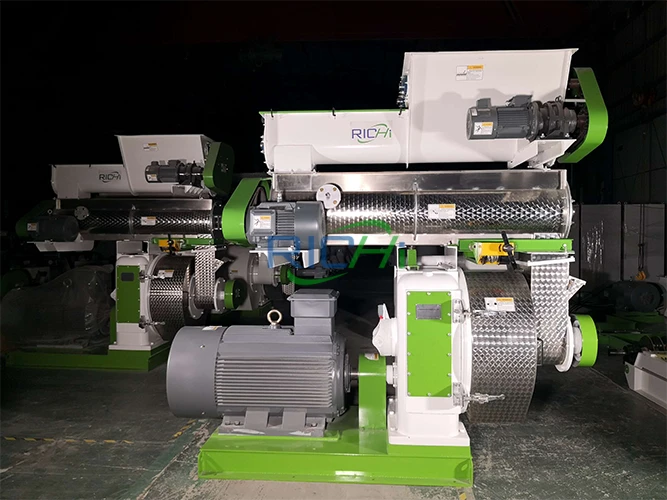

| Model | CZLH-320 | CZLH-350 | CZLH-420 | CZLH-520 | CZLH-678 | CZLH-768 |
| Capacity（T/H） | 0.2-0.3 | 0.3-0.5 | 1.0-1.2 | 1.5-2.0 | 2.5-3.0 | 3.0-4.0 |
| Main Motor Power(kW) | 22 | 37 | 90 | 132 | 185 | 250 |
| Arch-Breaking Feeder Power(kW) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Forced Feeder Power(kW) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 |
| Ring Die Diameter（mm） | 250 | 320 | 350 | 420 | 508 | 558 |
| Pellet Diameter(mm) | 4-12 | |||||
Because RICHI’s technology is constantly being updated and iterated, we will continuously upgrade and innovate our equipment. Therefore, the specific equipment parameters are subject to the actual quotation. We will provide more professional customized design and production services for each customer.
Videos of Corn Stalk Pellet Machine
The following videos showcase our corn stalk pellet machines in real-time operation across different biomass production lines. Witness firsthand the power, stability, and superior output quality of this core equipment.
Global Customer Cases
RICHI corn stalk pellet machine has been put into operation in dozens of countries around the world, providing strong support for multiple industries such as biomass fuel production, animal feed manufacturing, organic fertilizer production, and farm waste recycling. Here are some success project cases for your reference.
Uzbekistan 1-2 T/H Corn Stalk Pellet Machine
RICHI provided a corn stalk pellet machine with a capacity of 1-2 tons per hour to a customer in Uzbekistan for producing cattle and sheep feed. The pellet diameter is 6-8 mm, suitable for the feeding habits of cattle and sheep.
8-10 T/H Corn Stalk Pellet Machine in Egypt
To meet the needs of Egyptian customers for large-scale camel feed production, RICHI provided a large corn stalk pellet mill with a capacity of 8-10 tons per hour. The pellet diameter is 10-12 mm, and the larger pellets are more suitable for camels’ chewing habits and rumination needs.
Russia 5-6 T/H Corn Stalk Pellet Machine
RICHI designed a biomass pellet fuel production line with a capacity of 5-6 tons per hour for a Russian client, using corn stalk pellet machine as the core processing equipment. The pellet diameter is 6-10 mm, conforming to the general specifications for biomass fuel boilers.
South Africa 3-4 T/H Corn Stalk Pellet Machine
A South African customer wanted to produce roughage pellets from corn stalks, so he purchased our corn stalk pellet machine. The pellets have a diameter of 8-10 mm; larger pellets help extend the feeding time and maintain rumen health in ruminants.
1-2 T/H Corn Stalk Pellet Machine in Germany
In response to the high environmental standards of German customers regarding biomass fuels, RICHI offers a compact corn stalk pelleting system with a production capacity of 1-2 tons per hour. The pellet diameter is 6-8 mm.
2-3 T/H Corn Stalk Pellet Machine for Sale Singapore
RICHI has provided a corn stalk pelleting solution with a production capacity of 2-3 tons per hour for its Singapore customers, used for the energy utilization of urban greening waste and imported straw. The pellet diameter is 6-10 mm.
Wide Application Range of Corn Stalk Pellet Machine
RICHI corn stalk pellet machine boasts powerful performance and stable operation, easily meeting various industrial and agricultural pelleting needs. It efficiently processes a variety of raw materials, including corn stalks, hay, and nutshells, producing pellets with high density, uniform size, and excellent pelleting results.
Suitable Raw Materials
Our straw pellet press boasts broad raw material compatibility. It can efficiently process various agricultural straws, forages and forestry waste fiber materials. Furthermore, we realize the standardized, high-value on-site conversion of all types of biomass waste through customized pre-treatment and pelleting processes.
corn stalk
wheat straw
rice straw
cotton stalk
hay
sunflow seed shell
multiple industrial scenarios
The corn stalk pellet machine has wide range of applications and is key equipment for achieving large-scale, efficient, and resource-based utilization of agricultural waste. It can provide clean and environmentally friendly pellet fuel for biomass fuel plants and power plants, and can also be used to produce bedding material for livestock and poultry farming. Furthermore, the equipment can also process organic fertilizer.
Biomass fuel plants
Biomass fuel plants producing straw pellets for boilers and heating systems.
Feed Manufacturer
Feed manufacturer and farms producing feed pellets for ruminant and livestock.
Animal bedding production
Animal bedding production, especially for poultry, horses, and livestock.
Organic Fertilizer
Farmers or fertilizer manufacturers can purchase our rice husk pellet mills to produce organic fertilizer.
Other Equipment of A Corn Stalk Pellet Production Line
RICHI Machinery believes that a high-performance corn stalk pellet machine constitutes merely one critical link in the production process, rather than the entirety of it. We are dedicated to providing our clients with comprehensive corn stalk pelletizing solutions, ensuring that every stage operates with high efficiency and seamless integration.
Corn Stalk Bale Breaker
Corn Stalk Crushing Machine
Water Drop Hammer Mill
Frequently Asked Questions
Below is a compilation of frequently asked questions from customers regarding the purchase of our corn stalk pellet machine. If you have any questions, please feel free to contact us. Click here to know more about RICHI.
–
What are the moisture content requirements for corn stalks in pelleting? Is pretreatment necessary?
The ideal moisture content for corn stalk pelleting is between 10-12%. Excessive moisture content results in loose, brittle pellets; insufficient moisture content increases energy consumption and equipment wear. RICHI pellet mills can be equipped with a drying system; if the raw material moisture content is too high, we recommend a matching drum dryer for pretreatment.
–
What are the density and durability of the finished pellets? Can they meet the requirements for transportation and storage?
Our corn stalk pellet machine produces pellets with a smooth surface and high hardness, which are not easily pulverized and can meet the requirements of long-distance sea and land transportation and long-term storage without the problem of moisture absorption or breakage.
–
What is the lifespan of the ring die and pressure rollers on your corn stalk pellet machine? Are they easy to replace?
The service life of ring dies and pressure rollers depends on the raw materials and output, typically exceeding 1000 hours. RICHI uses high-strength alloy steel ring dies, which undergo vacuum heat treatment, improving wear resistance by 30%. The ring dies feature a quick-release design, requiring no special tools.
–
Besides corn stalks, can this machine process other raw materials? Does switching materials require adjustments?
Yes. The same machine can process various biomass raw materials such as corn stalks, wheat stalks, rice straw, soybean straw, peanut shells, and sawdust. When switching materials, simply adjust the ring die aperture, pressure roller gap, and conditioning temperature according to the material’s characteristics. Operation is simple and highly flexible.
–
Do you provide installation and after-sales support?
Yes. We provide professional installation guidance, operator training, and long-term technical support to ensure smooth equipment operation and reliable performance. Furthermore, our straw pellet mills come with a 12-month warranty. We stock a full range of spare parts for vulnerable components (including ring dies and pressure rollers) at competitive prices to ensure your production runs smoothly.(View our YouTube)
