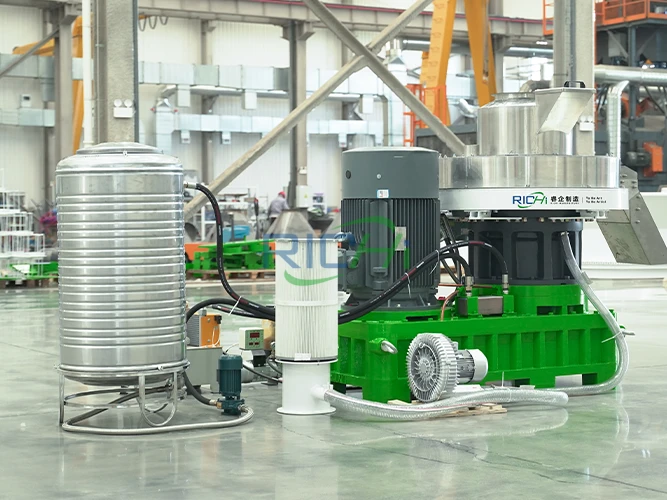

Vertical Ring Die Wood Pellet Mill

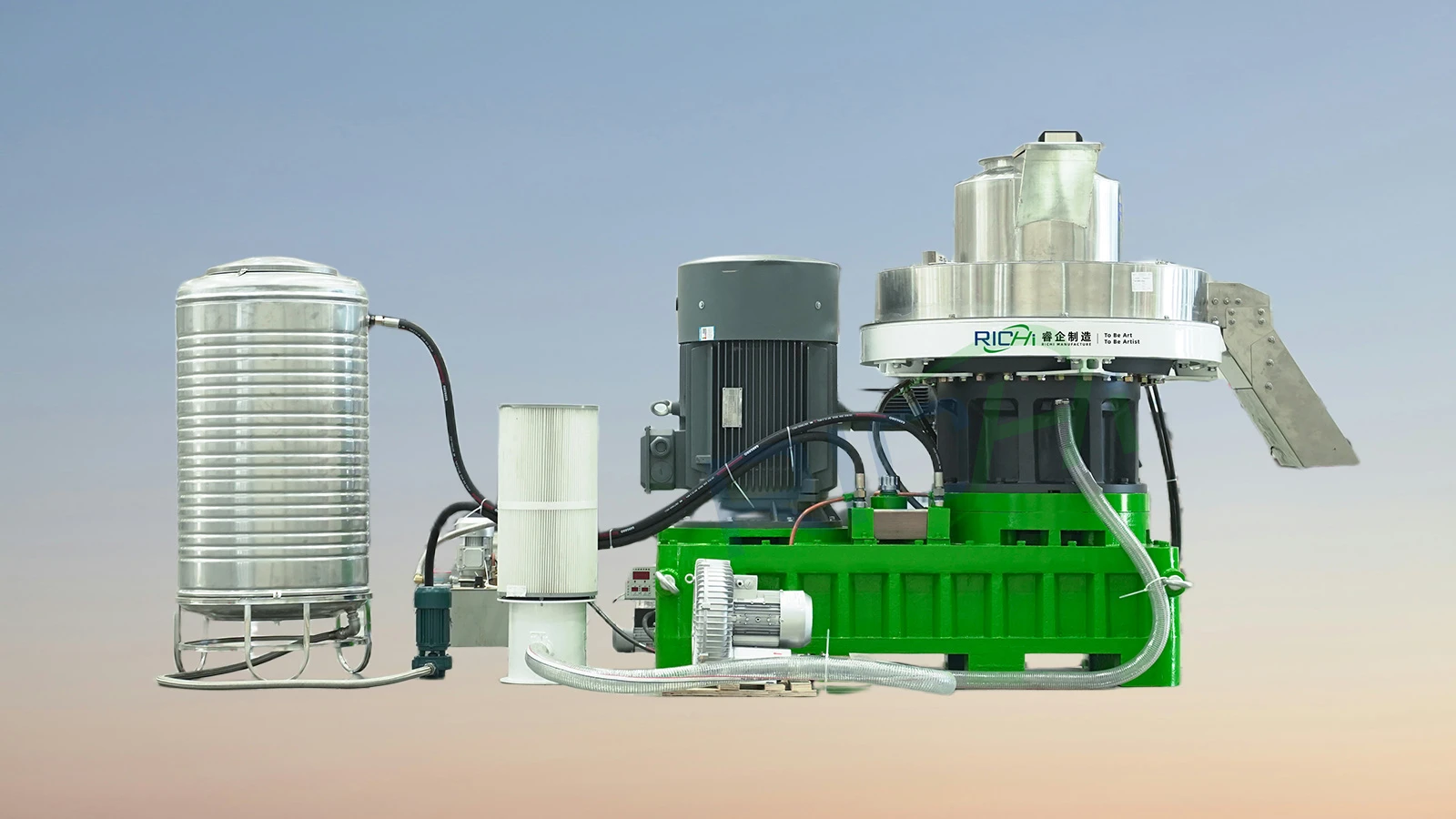

Vertical Ring Die Wood Pellet Mill Overview
The vertical ring die wood pellet mill, also known as a vertical wood pellet production machine, has its ring die fixed horizontally inside the machine body. The feeding method is that the material falls vertically by its own gravity, which is the main difference between it and the horizontal wood pellet mill.
With its unique top-feed design, the vertical pellet mill machine for wood waste is particularly good at processing various lightweight materials, such as wood chips, shavings, sawdust, straw, alfalfa, rice husks, palm fiber and other biomass raw materials.
Richi Machinery offers a variety of vertical sawdust pellet mills with hourly outputs ranging from 1 to 10 tons. In addition, we can customize integrated solutions to meet specific customer needs based on their actual operating conditions.
Vertical Ring Die Wood Pellet Mill Adantages
This vertical ring die wood pellet mill adopts a unique vertical ring die structure design. Its core components include the ring die pressure roller assembly, feeding equipment, transmission system, automatic lubrication, feeding and cooling system, and transmission system. The quality of the core components directly determines whether the machine can produce efficiently, save energy, and be durable.
01
Ring Die and Roller Assembly
We use 42CrMo alloy steel to make the ring die and pressure roller, and perform carburizing and quenching treatment to significantly enhance the wear resistance of the parts, making them perform excellently when processing coarse fiber raw materials such as sawdust, wood chips, and palm fiber.
02
Gear Drive System
The gearbox outputs ample torque, helping the vertical ring die wood pellet mill generate strong extrusion force, allowing the material to pass smoothly through the die holes. The gears undergo precision grinding and hardening treatment, enabling them to withstand greater loads.
03

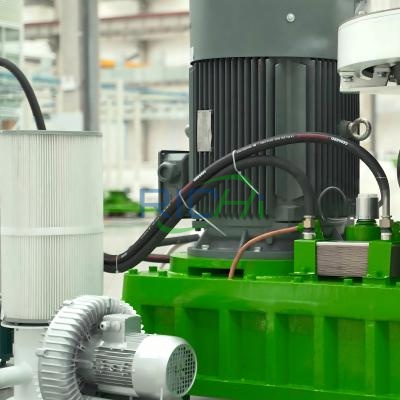

Siemens Main Motor
Siemens brand motor provide stable and reliable high-quality power support for vertical sawdust pellet mills, ensuring continuous and efficient mass production, significantly optimizing energy consumption, and effectively reducing production electricity costs.
04
VFD Feeder
To optimize production conditions, the vertical sawdust pellet mill features a variable frequency speed control feeding system, which can precisely control the feeding rhythm and eliminate problems such as material blockage and idling. In addition, the unique vertical feeding method also prevents material bridging and ensures uniform and smooth material discharge.
05
Lubrication System
Our vertical pellet machine for wood waste comes with a circulating thin oil lubrication system. It can automatically lubricate transmission components such as gearboxes and bearings, while also removing heat generated during mechanical operation and impurities such as metal abrasive particles, thereby significantly reducing wear and extending equipment life.
06
Cooling System
The vertical wood pellet production machine comes with a cooling system that can expel the high-temperature, humid air generated during the pelleting process. In addition, the circulating oil lubrication system can significantly reduce bearing temperature and prevent shutdowns due to overheating.
Best-Selling Vertical Ring Die Wood Pellet Mill Specifications
| Model | Power (kw) | Capacity (T/H) |
| V-MZLH 560A | 90 | 1-1.2 T/H |
| V-MZLH 560B | 160 | 1.5-2 T/H |
| V-MZLH 850A | 220 | 2.5-3 T/H |
| V-MZLH 850B | 280 | 3-4 T/H |
| V-MZLH 928 | 355 | 4-5 T/H |
| V-MZLH 1180 | 630 | 7-10 T/H |
The vertical wood pellet machine price varies depending on production capacity and configuration. Generally speaking, the vertical wood pellet machine price range is $10,000 to $50,000.
Because RICHI’s technology is constantly being updated and iterated, we will continuously upgrade and innovate our equipment. Therefore, the specific equipment parameters are subject to the actual quotation. We will provide more professional customized design and production services for each customer.
Vertical Ring Die Pellet Machine Videos
Below, we provid videos showcasing the complete overview and specific details of this vertical ring die wood pellet mill. Through this footage, you can gain a more intuitive appreciation of the exceptional craftsmanship embodied in our vertical wood pellet production machine.
Vertical Ring Die Wood Pellet Mill Wide Applications
Vertical ring die wood pellet mills are highly adaptable and are mainly used to compress powdery materials into pellets. They are widely used in the biomass energy, animal bedding, and organic fertilizer processing industries. As long as the raw materials have undergone crushing, our vertical pellet machine for wood waste can process almost all biomass raw materials.
sawdust
wood shaving
branch
tree bark
wood chip
log
wooden pallet
palm kernel shells
palm fiber
corn stalk
rice husk
corn cob
how to Choose a Right Vertical ring Die Wood Pellet Mill
When you plan to purchase a vertical ring die wood pellet mill, you need to consider not only the wood pellet machine price, but also factors such as capacity, power, and after-sales service. To provide you with the most accurate and suitable solution, please carefully consider and prepare to answer the following six core questions before requesting a quote.
Vertical Ring Die Wood Pellet Mill Supporting Equipment
As a professional vertical ring die wood pellet mill manufacturer , RICHI Machinery not only supplies industrial vertical sawdust pellet mills but also provides other auxiliary equipment required for the pellet production process—such as log bebarking machines, wood shredder, dryers, coolers, screening machines, packaging machines,conveying machines and more.
Log Bebarking Machine
Wood Pallet Shredder
Wood Chipper Machine
Wood Hammer Mill
Multi-Functional Crusher
Counterflow Pellet Cooler
Vibrating Screen Machine

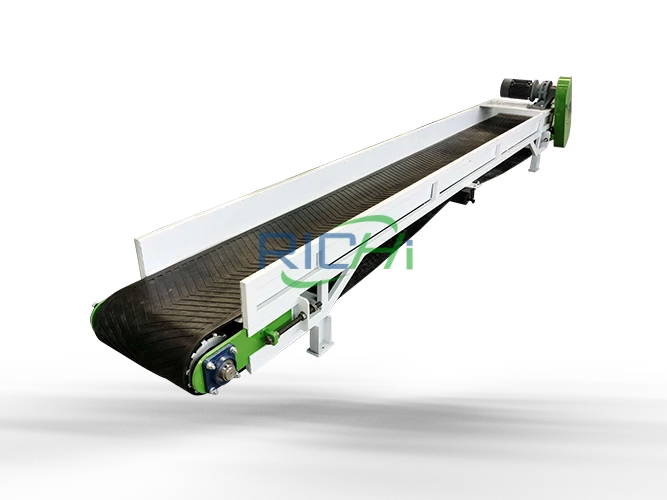

Conveying Machine
Other Related Wood Pellet mill
We offer not only vertical ring die wood pellet mills but also horizontal wood pellet mills. The horizontal wood pellet machine uses a forced feeder to ensure even material entry into the pelleting zone, guaranteeing continuous and stable production even at high capacities. Below are some of our best-selling wood pellet mill models for your reference.

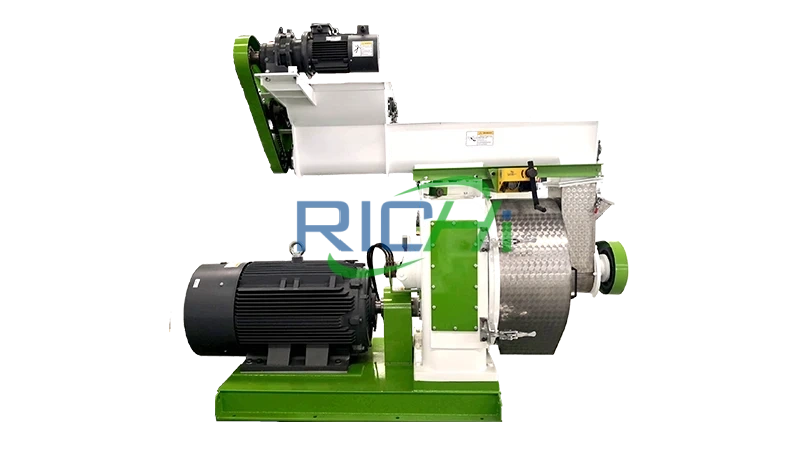

MZLH350 Wood Pellet Mill
- Capacity: 0.3-0.5 T/H
- Power: 37 kw

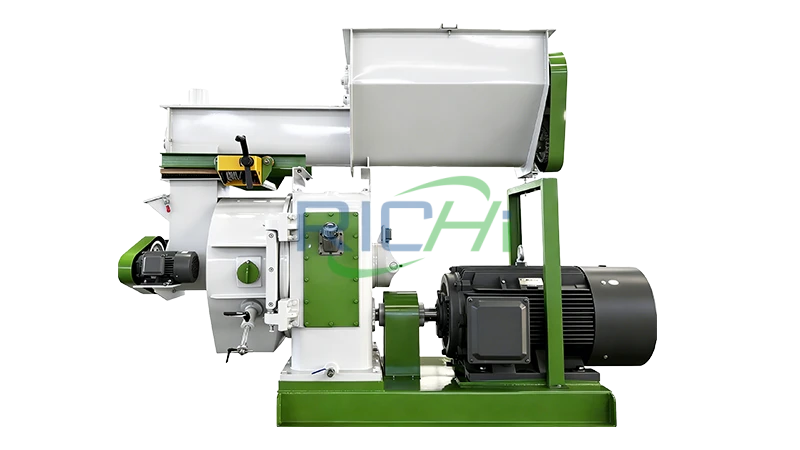

MZLH520 Wood Pellet Mill
- Capacity: 1.5-2.0 T/H
- Power: 132 kw

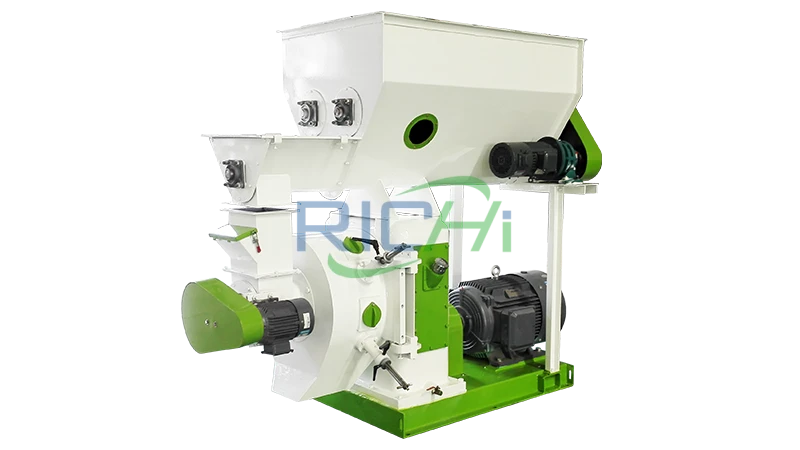

MZLH678 Wood Pellet Mill
- Capacity: 2.5-3.0 T/H
- Power: 185 kw

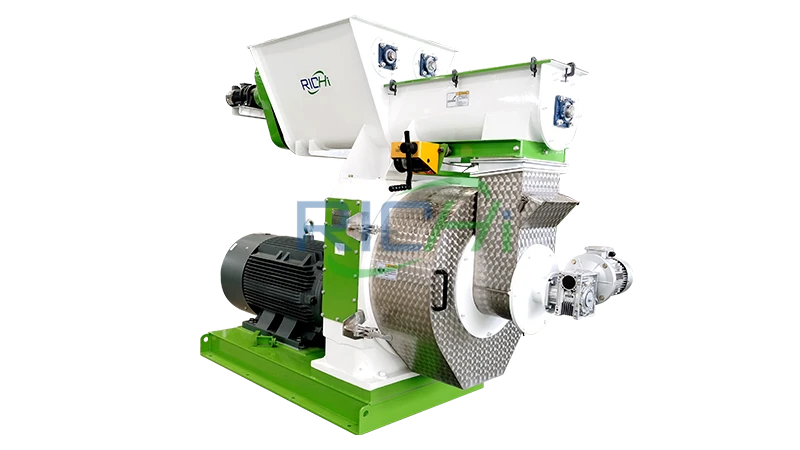

MZLH768 wood Pellet Mill
- Capacity: 3.0-4.0 T/H
- Power: 250 kw
Frequently Asked Questions
Below is a compilation of frequently asked questions from customers regarding the purchase of vertical ring die wood pellet machine. If you have any questions, please feel free to contact us. Click here to know more about RICHI.
–
Does your vertical ring die pellet machine have specific requirements regarding the type of raw materials or their moisture content?
The vertical ring die wood pellet mill boasts great versatility for diverse raw materials. It handles almost all biomass including sawdust, wood shavings, tree bark, logs, wooden boards, crop stalks, palm fiber and palm shells. To achieve the best pelletizing effect on the vertical wood pellet production machine, raw material moisture content must be under 15%.
–
What is the vertical wood pellet machine price for an industrial model?
Many factors like machine specs, hardware parts and automation level will decide the vertical wood pellet machine price. The industrial vertical wood pellet machine price generally falls within the range of $10,000 to $50,000. Though, our vertical wood pellet machine price may not be the lowest in the industry, but our machine is well worth every penny.
–
Is long-term continuous operation available for the vertical ring die wood pellet mill?
Certainly. Our vertical pellet machine for wood waste features a Siemens motor and gear drive system, offering strong load capacity, steady performance and low noise. Additionally, it adopts thin-oil lubrication and air cooling systems to deliver excellent heat dissipation.
–
I want to set up a vertical wood pellet production line. In addition to an vertical ring die wood pellet mill, what other equipment will I need?
The vertical ring die wood pellet mill is the key equipment for pelletizing. A complete wood pellet production line consists of drying system, crushing system, pelletizing system, drying system, cooling system, screening system, packaging system, conveying system and dust removal system. Specializing in vertical sawdust pellet machine manufacturing, we provide turnkey solutions customized for your production demands to support your business startup.
–
What are the raw material size requirements and moisture content for the vertical ring die wood pellet mill?
To achieve excellent pelletizing results, the particle size of the raw material fed into the vertical pellet machine for wood waste should not exceed 3–5 mm. If the raw material size is too large, it is recommended to add a grinding step prior to the pelletizing process.
–
Does the vertical ring die wood pellet mill operate stably? Is it prone to breakdowns?
The vertical ring die wood pellet mill comes with vertical feeding, stationary die and rotating roller design, delivering low vibration and quiet operation. Equipped with a gear drive system, this vertical wood pellet production machine boasts great load capacity, stable long-time running and ultra-low failure rate. (View our YouTube)
