belt dryer for sale
belt dryer for sale Overview
Characterized by high efficiency, strong adaptability, and uniform drying, belt dryer is widely used for drying food products, agricultural by-products, dehydrated vegetables, traditional Chinese medicinal herbs, chemical products, and granular or block-shaped materials.
RICHI offers conveyor belt dryers in various sizes to meet the diverse wet-material processing capacity requirements of small, medium, and large-scale enterprises.

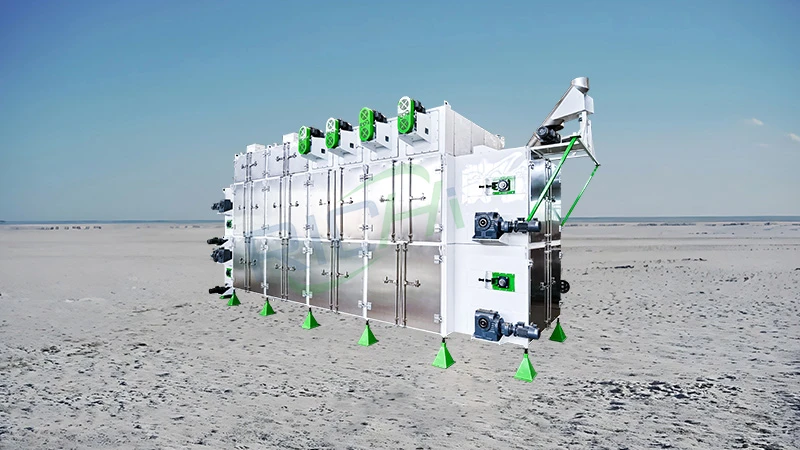

The belt dryer for sale (also known as a continuous dryer or mesh belt dryer) is a type of continuous industrial drying equipment. Utilizing a multi-layer mesh belt, the belt dryer machine spreads the material to be dried evenly and conveys it continuously. Hot air penetrates the material layer, carrying away moisture to achieve the drying effect.
Various belt dryer for sale Models and Specifications
Richi belt dryer for sale is available in various models, distinguished by factors such as the number of belt layers, heat source type, drying area, equipment footprint, and power requirements. The specific technical parameters for Richi industrial belt dryer is provided below for your reference. If you would like to learn more about our mesh belt dryer, please do not hesitate to contact us. We can recommend the most suitable belt dryer model tailored to your specific production needs.
| Model | DHG-400 | DHG-500 | DHG-1000 | DHG-2000 | QHG-500 | QHG-1000 | QHG-2000 |
| Heating Method | Electric Heating | Electric Heating | Electric Heating | Electric Heating | Steam Heating | Steam Heating | Steam Heating |
| Power（kw） | 40+0.55*4+0.55 | 50+2.2*2+0.75 | 70+2.2*3+1.5 | 132+2.2*3+1.5 | 2.2*2+0.75 | 2.2*3+1.5 | 2.2*3+1.5 |
| Number of Belt Layers | Customizable | ||||||
| Mesh Belt Width (m) | 0.8 | 1 | 1.2 | 1.6 | 1 | 1.2 | 1.6 |
| Drying Area（㎡） | 13 | 21 | 43 | 58 | 21 | 43 | 58 |
(Note: Richi Machinery’s products are always updated and improved. Therefore, if there is any difference between the pictures, feature descriptions and performance parameters of the actual model, please refer to the actual product.)
Core Advantages of RICHI Belt Dryer For Sale
Belt dryer for sale enables continuous, uniform, and large-scale drying operations. If you require high processing capacity, demand uniformity in both product appearance and moisture content, and are handling materials sensitive to tumbling, a belt dryer machine is an ideal choice. Below are some advantages of our conveyor belt dryer.
√
Supports continuous operation, ensuring high production efficiency:
- Our belt dryer machine features a highly automated control system; wet materials enter uniformly from one end and are discharged uniformly from the other after drying, enabling continuous, 24-hour assembly-line production without the need for repetitive loading and unloading.
√
Precise process control and uniform drying:
- Through multi-layer turning and hot air circulation, issues such as localized overheating or incomplete drying are effectively prevented.
√
Energy-efficient and consumption-reducing, with high thermal efficiency:
- Most of the hot air is recirculated within the dryer, while only a portion of the high-humidity exhaust gas is discharged.
- Our conveyor belt dryer features a five-layer vertical structure, which significantly extends drying time and enhances thermal efficiency. Furthermore, it substantially reduces the floor space required within the facility.
√
Strong material adaptability:
- Our mesh belt dryer machine can process granular, flake, strip, and block-shaped materials, and even paste-like substances.
√
Static drying minimizes material breakage:
- Unlike rotary dryer machine, the mesh belt dryer machine does not involve vigorous tumbling during the drying process. The materials remain in a relatively stationary state on the conveyor belt, thereby avoiding collision and friction with the belt dryer.
√
Static drying minimizes material breakage:
- Unlike rotary dryer machine, the mesh belt dryer machine does not involve vigorous tumbling during the drying process. The materials remain in a relatively stationary state on the conveyor belt, thereby avoiding collision and friction with the belt dryer.
√
Hygienic and easy to maintain:
- The conveyor belt can be equipped with cleaning and scraping devices to maintain the hygiene of the belt dryer, ensuring compliance with the sanitary standards of industries such as feed, food, and pharmaceuticals.
- The belt dryer icomes with quick-opening inspection doors on both sides, facilitating maintenance and cleaning.
Wide Applications of RICHI Belt Dryer For Sale
Dehydrated Vegetable
Grain
Traditional Chinese Medicinal Materials
dehydrated fruit
Animal feed pellets
Snacks
RICHI Belt Dryer For Sale Worldwide
Thanks to its highly efficient and continuous drying capabilities, the Richi belt dryer for sale is widely applied across a broad range of fields, including food, agricultural and sideline products, traditional Chinese medicinal materials, chemicals, and building materials. Customers from various industries worldwide have purchased our belt dryer machines and given them high praise. The following are selected project case studies for belt drying machines, provided for your reference.

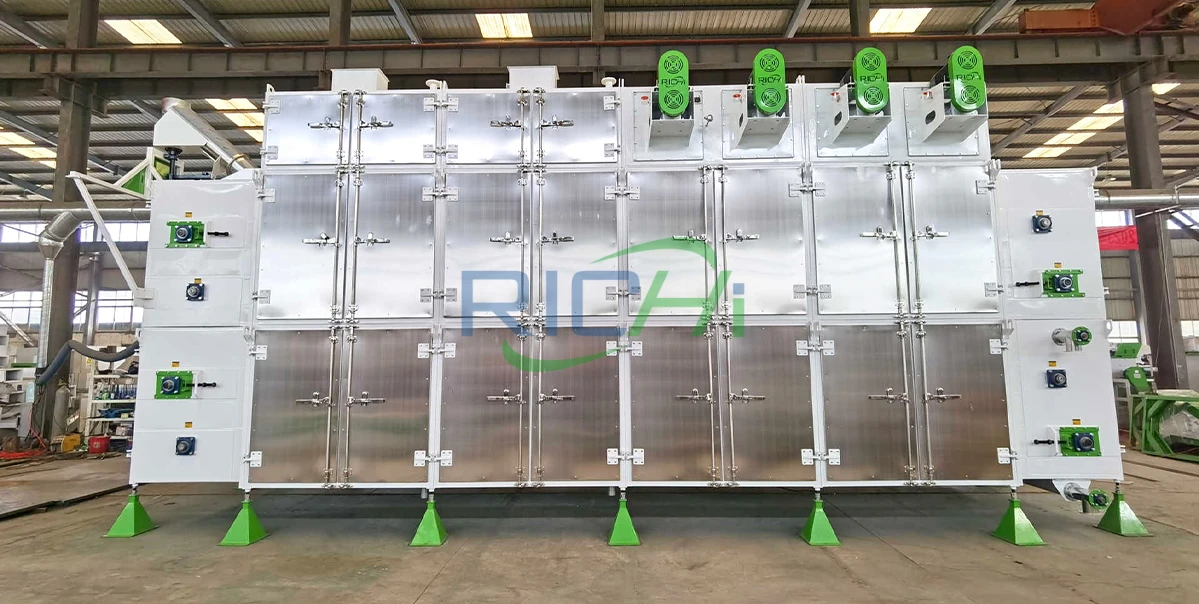

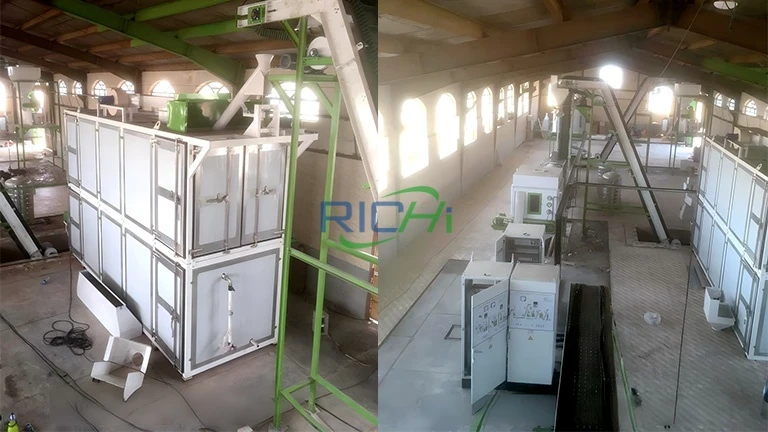

Feed Dryer Machine for Sale Iran
We supplied a feed dryer machine to an Iranian client specializing in the production of high-end aquatic feed. This dryer is specifically designed for fragile, protein-rich pellets and features a seven-layer mesh belt system, enabling continuous and energy-efficient drying operations.

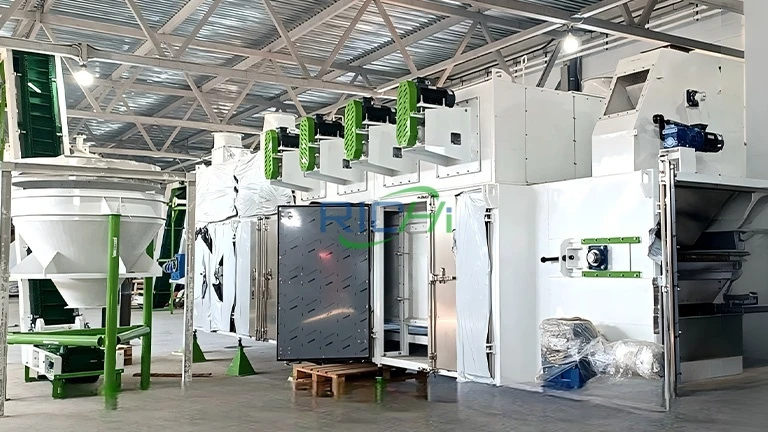

Fish Feed Dryer Machine for Sale Russia
This Russian client, a manufacturer of high-end fish feed, purchased a fish feed dryer machine to process feed for both floating and cold-water fish. Unlike standard single-layer belt dryers, this fish feed dryer features five mesh belts, maximizing drying efficiency while minimizing its physical footprint.
Food Processing Dryer for Sale UK
We provided a food processing drye solution to a snack processor in the UK. This food dryer is suitable for drying common snack foods such as potato chips, rice crackers, and oats. This belt dryer machine ensures that every batch of material receives uniform heating and consistent drying, resulting in a final product that is crispy, delicious, and of stable quality.

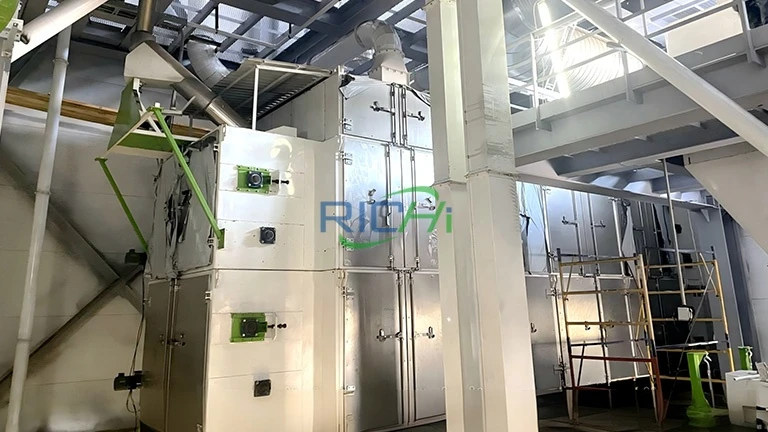

fruit dryer machine for Sale France
A French dried fruit processor sought to upgrade their drying process and, to this end, purchased our fruit dryer machine. Utilizing continuous multi-layer mesh belt drying technology, our fruit dryer machine achieves low-temperature, uniform, and highly efficient dehydration. The resulting dried fruit features vibrant colors and retains a high level of nutritional value.
continuous grain dryer for Sale Brazil
A grain processing plant in Brazil has purchased our continuous grain dryer to dry various crops, including rice, corn, and soybeans. Our continuous flow grain dryer features flexible controls for both temperature and conveyor belt speed, enabling the client to fully dry their grain inventory before the onset of the rainy season—thereby preventing spoilage and extending storage life.

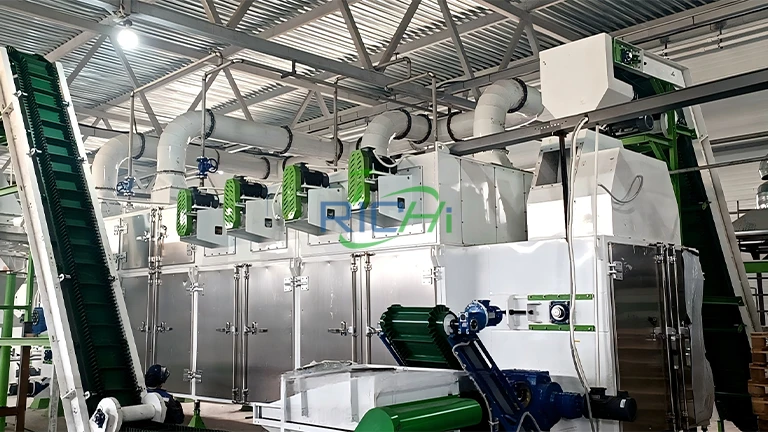

vegetable dryer machine for Sale Japan
This Japanese client purchased a fruit and vegetable dryer machine to dehydrate fresh fruits and vegetables at low temperatures. This fruit and vegetable dryer machine is specifically designed for high-end fruit and vegetable processing, utilizing adjustable low-temperature drying technology (40–70°C) to effectively inhibit oxidative discoloration and nutrient loss.
continuous flow grain dryer for Sale New Zealand
A medium-sized grain farm in New Zealand is seeking to purchase a continuous grain dryer to replace its traditional batch-type dryer. Our continuous flow grain dryer is capable of drying various grains, including oats, barley, and wheat. Furthermore, the equipment features a multi-layer stainless steel mesh belt structure paired with a circulating hot air system, ensuring uniform drying of the grain.

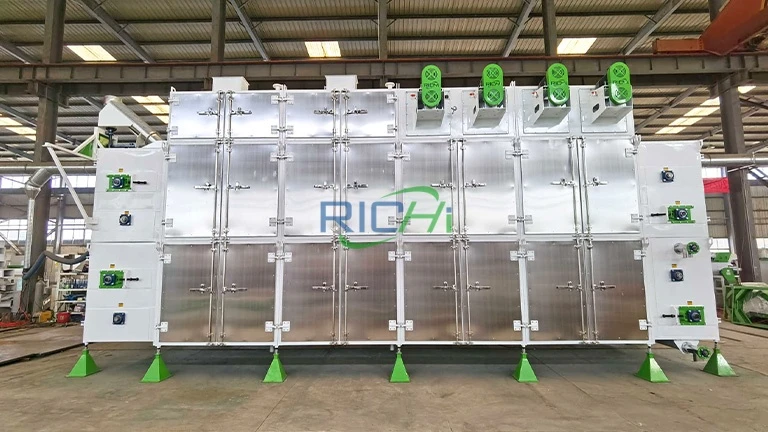

Mesh Belt Dryer for Sale USA
An american feed mill sought to replace its existing feed dryer machine. After extensive comparison, they selected our mesh belt dryer. RICHI continuous dryer features flexible controls for temperature, belt speed, and airflow, ensuring that every batch of feed maintains uniform moisture content and smooth pellet surfaces. Furthermore, our animal feed dryer supports continuous production, allowing for increased throughput while simultaneously reducing energy consumption by approximately 15%.

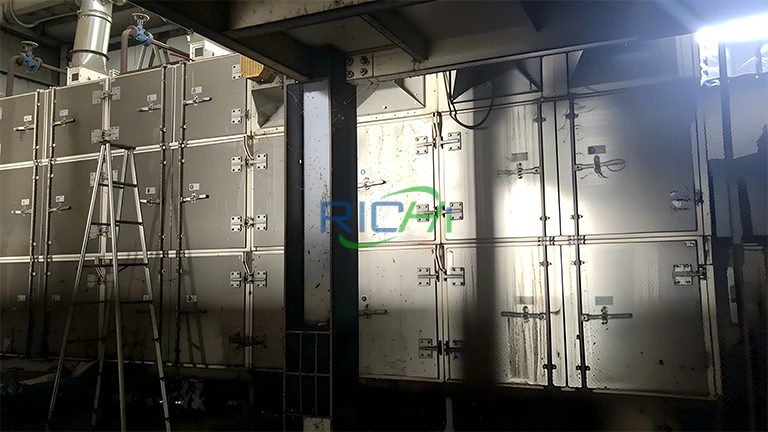

Fish Meal Dryer for Sale Uzbekistan
This Indonesian client is looking to purchase a belt dryer capable of drying fish meal. He has previously experimented with several different types of dryers, but none yielded satisfactory results. However, our fish meal dryer utilizes a low-temperature, slow-drying technology that ensures uniform drying of the material without compromising its protein content. Furthermore, our fish meal dryer is also suitable for drying various other animal protein raw materials, such as shrimp head meal and blood meal.
Supporting Equipment of Rotary Dryer Machine
In actual production, a complete drying system comprises not only the primary belt dryer for sale but also a rational combination of auxiliary equipment—such as ventilation, heat dissipation, and dust removal units—to ensure operations that are efficient, eco-friendly, and intelligent.
Heat Source Selection
Currently, the heating furnaces commonly available on the market fall primarily into two major categories: biomass heating furnaces and oil/gas-fired heating furnaces. Biomass heating furnaces are capable of directly combusting various waste materials—such as wood scraps, crop stalks, and rice husks—thereby significantly reducing operational costs and offering excellent cost-effectiveness. In contrast, oil and gas-fired heating furnaces are predominantly deployed in regions subject to particularly stringent environmental regulations, making them well-suited for high-standard production environments.
Environmental Protection Configuration
During the material drying process, the resulting exhaust gas is complex in composition; in addition to releasing large quantities of water vapor, it is accompanied by trace amounts of dust and impurities. This exhaust gas cannot be discharged directly and must undergo purification treatment using specialized environmental protection equipment. Cyclone separators and pulse dust collectors serve as the core components of this exhaust gas purification system, effectively filtering dust from the gas stream to truly realize green, eco-friendly production.
Intelligent Control
Richi industrial belt dryer features an advanced PLC variable-frequency control system, offering a high degree of intelligence. This system monitors the raw material feed rate and moisture levels in real time, while also autonomously adjusting key operational parameters—such as feeding speed and hot air temperature—to ensure fully automated regulation throughout the entire process, thereby eliminating the need for frequent manual intervention.
RICHI Comprehensive After-Sales Support
Choosing Richi Machinery means you gain not just a reliable piece of equipment, but a trusted long-term partner. We back our machines with a comprehensive after-sales service system to keep your production running smoothly.
1-Year Warranty
The entire unit comes with a one-year warranty; non-human-induced damage is eligible for free repair.
On-site Installation & Commissioning
We provide on-site installation and commissioning by professional engineers to ensure reliable operation.
Operation Training
On-site practical guidance from our engineers helps you master the operation of the equipment.
Lifetime Technical Support
We prioritize long-term partnerships, conduct regular equipment maintenance, and remain online around the clock to respond to inquiries at any time.
