High-Performance Máquina de pellets de pienso para cerdos

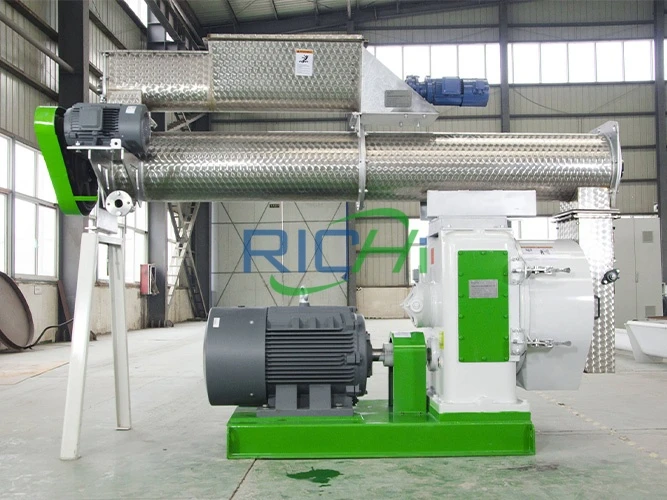

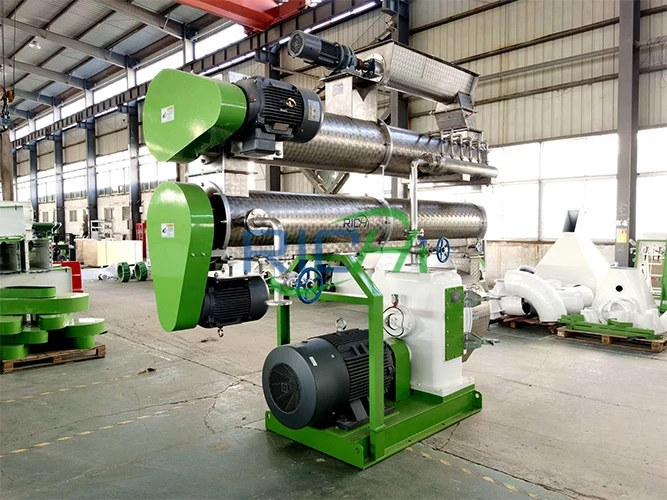

Pig Feed Pellet Machine Overview
Pig feed pellet machine is the core granulator equipment in the grain feed production line. It can compress grain feed raw materials such as wheat, corn, soybean bran, wheat bran, rice bran, and vitamin premix into grains, making it easy to store and feed.
RICHI pig feed mill has a wide range of production capabilities, with 1-40T/H capacity that can meet both the production scale of family farms and startups, as well as the production needs of large industrial feed plants. In addition, we can also provide customized services, allowing you to customize the production capacity you want. We can also build a complete animal feed production line for you.
- Capacity：1-40 T/H
- Pellet Size: 1-12 mm
- Personalización disponible: Sí
- Certificación internacional: CE, ISO, SGS, BV, etc.

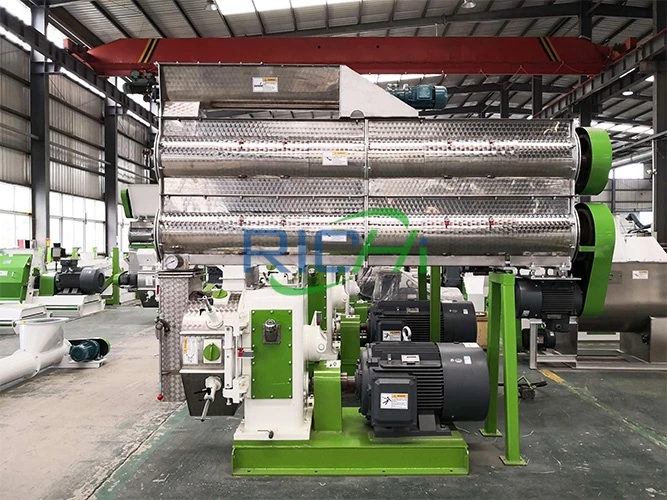

Technical Features of RICHI Pig Feed Pellet Machine
A high-performance pig feed pellet machine is by no means a mere assembly of components. Strictly adhering to international standards, RICHI precisely integrates every core component to create a comprehensive solution that ensures highly efficient operation.
The core components each fulfill their specific functions, working together with precision. Through collaborative operation, they transform various raw materials into finished granules of exceptional quality and high consistency.
The RICHI pig feed mill has successfully obtained a series of rigorous certifications, including CE, BV, ISO and SGS. These certificates are far more than just documents; they represent our solemn commitment to advanced technology and uncompromising quality standards.
01
Matrices de anillo y rodillos de prensa
We chose 38CrMo alloy steel to manufacture the ring dies and press rollers, and subject them to hydrocarbon thermal treatment. Under normal working conditions, the ring mold and compressor roll use life can reach more than 1000 hours.
02

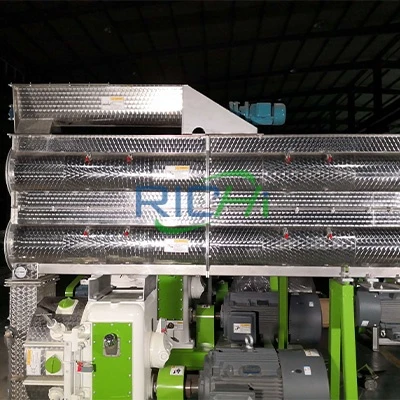

Multi-Stage Conditioners
Our pig feed pellet machine has 1-3-layer conditioners that can significantly extend the quality time of materials. This ensures that materials are fully cooked and glued, thereby improving the digestibility of feed.
03
Alimentador VFD
The feeder of the pig feed machine is controlled by a variable frequency regulator, which automatically adjusts the feed speed to achieve uniform feed.
In addition, a helical torque is installed inside the feeders, which can effectively prevent material from forming bridges.
04
Motor Siemens
Our pig feed pellet machine comes with a Siemens motor that operates smoothly, efficiently, and energy-efficiently, enabling continuous operation of the equipment.
05
Dispositivo de corte
The distance between the ring die and the cutting blade can be adjusted, allowing for precise control of the grain length, resulting in the production of feed of different specifications.
The cutting blade is very sharp, and the pellets cut out has a smooth surface and uniform length.
06
Dispositivo de protección contra sobrecargas
Our pig feed mill comes with a safety pin as an overload protection device. When equipment malfunctions, the safety pin automatically disconnects power, protecting equipment from damage while also ensuring the safety of the operator.
Technical Parameters & Capacity of RICHI Pig Feed Pellet Machine
| Modelo | Capacidad (T/H) | Potencia del motor principal (kW) | Potencia del alimentador (kW) | Potencia del acondicionador (kW) | Diámetro del troquel anular (mm) | Diámetro del pellet (mm) |
| SZLH250 | 1.0-1.5 | 22 | 1.1 | 1.5 | 250 | 2-12 |
| SZLH320 | 3-4 | 37 | 1.5 | 4 | 320 | |
| SZLH350 | 5-6 | 55 | 1.5 | 4 | 350 | |
| SZLH420 | 10-12 | 110 | 1.5 | 7.5 | 420 | |
| SZLH508 | 15-16 | 160 | 1.5 | 7.5 | 508 | |
| SZLH558 | 20-22 | 185 | 1.5 | 11 | 558 | |
| SZLH678 | 30-33 | 250 | 1.5 | 11 | 673 | |
| SZLH768 | 38-40 | 315 | 2.2 | 11 | 762 |
Dado que la tecnología de RICHI se actualiza e itera constantemente, actualizaremos e innovaremos continuamente nuestros equipos. Por lo tanto, los parámetros específicos del equipo están sujetos a la cotización real. Proporcionaremos un diseño personalizado más profesional y servicios de producción para cada cliente.
Videos of RICHI Pig Feed Pellet Machine
The video below showcases our pig feed pellet machines in real-time operation across various línea de producción de piensos para animaless. Le invitamos a que sea testigo de primera mano del potente rendimiento, la excepcional estabilidad y la calidad superior de los productos que ofrece esta pieza clave del equipo.
Worldwide Cases of RICHI Pig Feed Pellet Machine
RICHI pig feed pellet machines enjoy a global reputation, having earned the trust of over a hundred clients across various industries. RICHI Machinery not only provides high-quality máquina para fabricar pellets de alimento para animaless, but also offers reliable and customized support services.

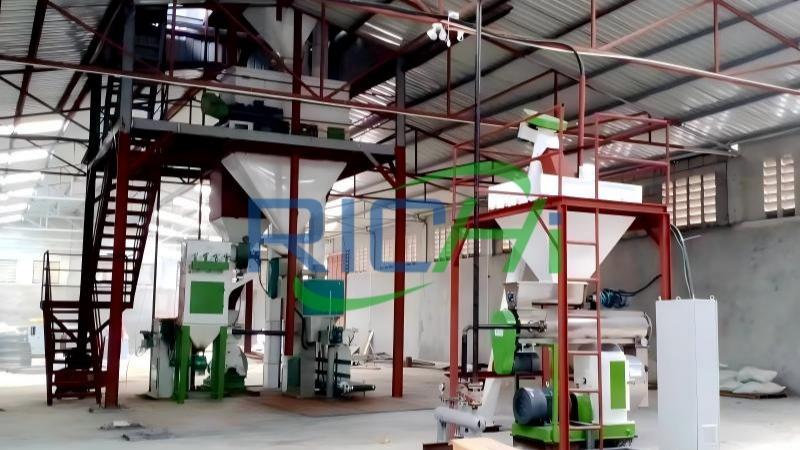

3-4 T/H Pig Feed Pellet Machine for Sale Thailand
This Thai client owns a pig farm and wishes to use a pig feed pellet machine to independently produce pelleted feed with a diameter of 3 mm and a length ranging from 10 to 22 mm.
The client’s raw materials primarily consist of locally abundant corn and soybean meal, supplemented with premixes and a small amount of wheat bran.

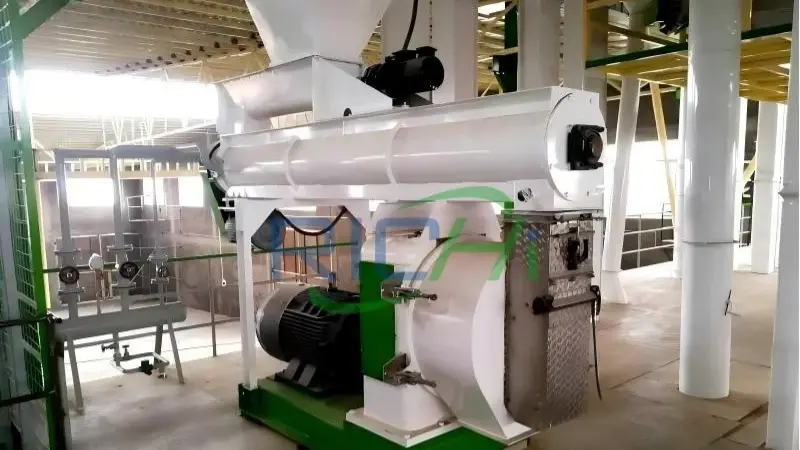

10 T/H Pig Feed Mill for Sale USA
This U.S. client aims to expand production capacity by purchasing a high-output pig feed mill and upgrading their production line, in order to meet the feed supply demands of several large-scale pig farms in the surrounding area.
The client’s raw material formulation is corn-soybean meal based, supplemented with fats, oils, vitamins, and mineral premixes. The required pellet specifications are a diameter of 4 mm and a length of 15–25 mm.
5-6 T/H Pig Feed Pellet Machine in UK
A specialized pig feed manufacturer in the UK plans to upgrade its aging feed pelletizers to enhance production efficiency and pellet uniformity.
The primary raw materials consist of wheat, barley, soybean meal, and functional additives. The required pellet specifications call for a diameter of 3–4 mm, designed to meet the versatile dietary needs of both piglets and finishing pigs.

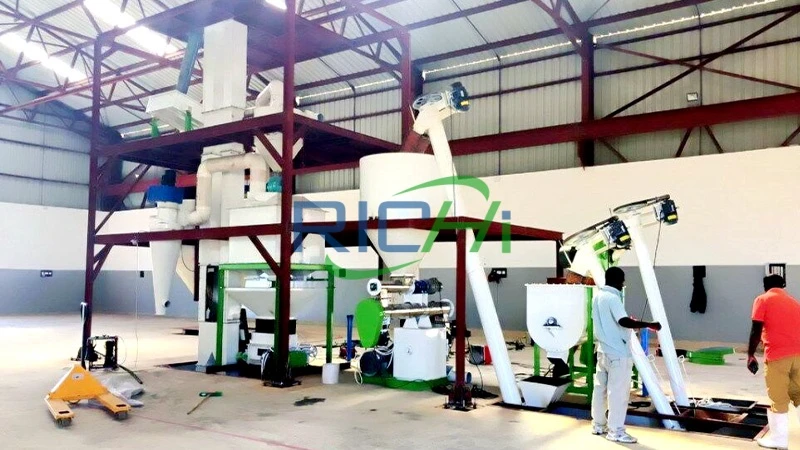

1-2 T/H Pig Feed Machine in South Africa
A family farm in South Africa has purchased our small-scale pig feed machine to produce its own pig feed. Striking an ideal balance between cost-effectiveness and practicality, our compact and easy-to-operate machine empowers the farm to achieve self-sufficiency in feed production.
20 T/H Pig Feed Machine in Brazil
RICHI has custom-designed a heavy-duty pig feed pelletizing system for a major Brazilian feed manufacturer, capable of producing 2–5 mm pelleted pig feed to meet the distinct nutritional requirements of piglets, growing pigs, and finishing pigs.
1-2 T/H Pig Feed Mill for Sale Australia
This Australian client purchased a small-scale pig feed machine to produce pig feed pellets with a diameter of 3.0 mm and a length of 8–15 mm. Featuring a compact structure and ease of maintenance, the equipment enables the client to achieve stable, in-house production within a limited workspace.
Application of Pig Feed Pellet Machine
Our pig feed pellet machine offers extensive versatility regarding raw materials. It efficiently processes various types of grains and agricultural processing by-products such as corn, wheat, sorghum, soybean meal, rice bran, rapeseed meal…
Maíz
Trigo
Sorgo
Harina de soja
Cebada
Harina de maní
salvado de arroz
Harina de colza
Vitamin Premix
Oil
Harina de semilla de algodón
Wheat Bran
Other Equipment in a Pig Feed Production Line
RICHI sells not just pig feed pellet machines, but also the whole set of equipment for feed production lines like grinders, mixers, coolers, screeners, crumblers, packaging machines, and conveyors.
Pantalla de limpieza
Adicionadora de líquidos
Enfriador de pellets de contraflujo
Criba vibratoria

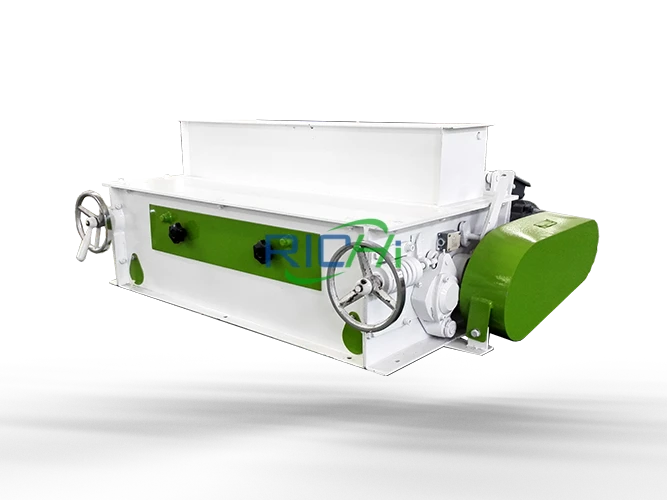

Feed Pellet Crumbler
Máquina transportadora
Silo de almacenamiento
¿Por qué elegir RICH?
Acerca de RICHI: Fabricante profesional y líder de maquinaria para peletización.
Maquinaria RICHI es un fabricante de maquinaria de peletización con 30 años de experiencia profesional. Nuestros productos se exportan a más de 140 países y regiones de todo el mundo, y hemos atendido con éxito a miles de clientes.
Our pig feed pellet machine has obtained certifications meeting international standards such as CE, ISO, BV, SGS and more. Furthermore, every machine undergoes rigorous testing prior to leaving the factory to ensure it is ready for immediate use upon delivery.
En RICHI, nuestro compromiso con su éxito va mucho más allá de la entrega de equipos. Ofrecemos un completo servicio postventa servicio con los tres pilares siguientes:
Garantía completa y suministro de repuestos
Our pig feed machine comes with a one-year quality warranty, effective from the date of delivery. Should replacement parts be required, we maintain a substantial stock of genuine original components, which we supply at preferential prices.
Asistencia técnica global 24 horas al día, 7 días a la semana & Rápido in situ Servicio
Whenever you encounter an issue, our technical support team is available online 24 hours a day. We provide immediate remote assistance, while our on-site service team arrives rapidly—within 48 to 72 hours—to ensure your production remains uninterrupted.
Soporte integral para soluciones, desde el diseño hasta la formación.
We offer a one-stop customization service—from capacity planning and plant design to production line implementation—with a professional team providing expert guidance every step of the way. Our comprehensive support includes on-site installation, commissioning, and hands-on training to help you achieve rapid production startup.
Preguntas frecuentes
Below is a compilation of frequently asked questions from customers regarding the purchase of our pig feed pellet machine. If you have any questions, please feel free to Contáctanos.
–
What are the production capacities and prices of your pig feed pellet machines?
The production capacity of our pig feed pellet machines ranges from 1 to 40 tons per hour (T/H). If you require a higher production capacity, we can customize a pig feed pellet machine to meet your specific needs. The price of a pig feed pellet machine varies depending on its capacity and configuration, ranging from $5,000 to $100,000.
–
Is your pig feed mill complicated to operate?
Our pig feed mill is equipped with a PLC system that supports one-touch start-and-stop and parameter adjustment functions, allowing even beginners to quickly master its operation.
–
What international certifications has your pig feed machine obtained?
Our pig feed machine has obtained comprehensive and authoritative international certifications, including CE, BV, TüV, SGS, RTN, and ISO 9001 Quality Management System certification, among others. Furthermore, we hold over 20 patents for technical innovations.
–
What is the warranty period for your pig feed pellet machines?
Our pig feed pellet machine comes with a one-year warranty. During the warranty period, should any malfunctions occur that are not caused by human error, we will dispatch an engineer to your location to perform the necessary repairs.
–
In addition to pig feed pellet machines, can you provide complete engineering solutions?
Absolutely. RICHI not only sells pig feed pellet machines but also undertakes turnkey projects. If you are planning to construct a pig feed mill, we can assist you in designing the comprehensive plan, supplying the necessary equipment, and handling the installation process. (view our YouTube)
