Straw Pellet Mill
What Is a Straw Pellet Mill?
A straw pellet mill is a specialized biomass pelletizing machine that compresses agricultural straw into dense, uniform pellets through mechanical extrusion. Compared with loose straw, pelletized straw offers:
- Higher energy density
- Lower transportation and storage costs
- Improved combustion efficiency
RICHI designs each straw pellet making machine to handle fibrous, low-density raw materials while maintaining consistent pellet quality. The pellets can be used as animal feed and eco-fuel.
Models and Specifications of RICHI Straw Pellet Mill
RICHI provides multiple straw pellet machine models to match different production needs. Custom-built straw pellet presses are available for higher capacities and special straw materials. Based on your product requirements (animal feed or eco-friendly fuel), you can choose whether to install a conditioner on the standard straw pellet mill.

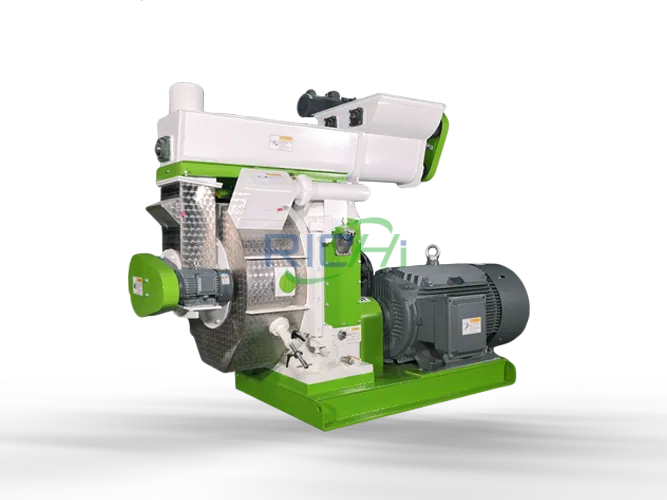

cZLH320 Straw Pellet Mill for Sale
- Capacity: 0.5-0.6 T/H
- Main Motor Power: 22 kW

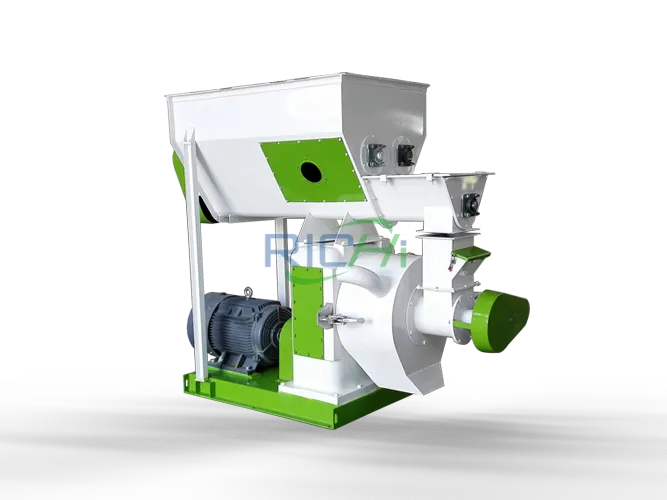

cZLH350 Straw Pellet Machine
- Capacity: 1.0-1.2 T/H
- Main Motor Power: 37 kW

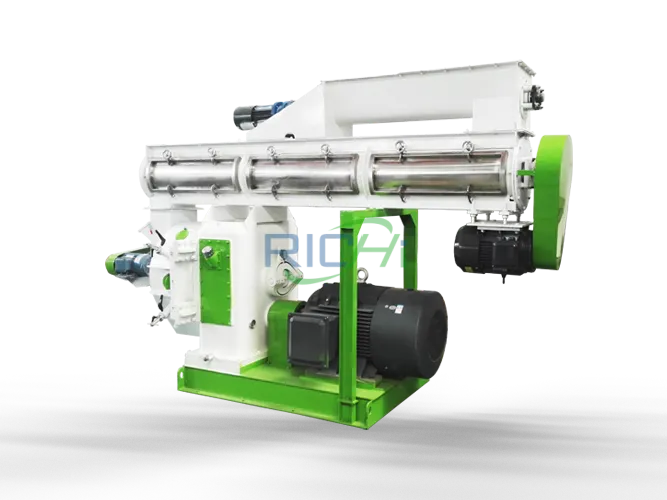

cZLH420 Straw Pellet Machine for Sale
- Capacity: 1.8-2.0 T/H
- Main Motor Power: 90 kW

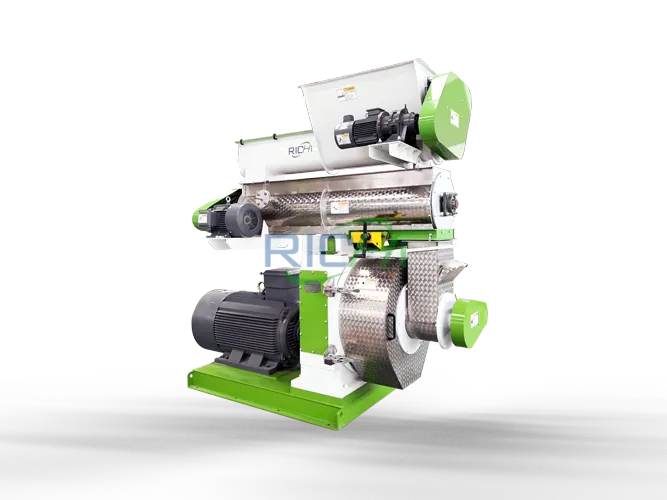

cZLH520 Straw Pellet Press
- Capacity: 2.8-3.0 T/H
- Main Motor Power: 132 kW

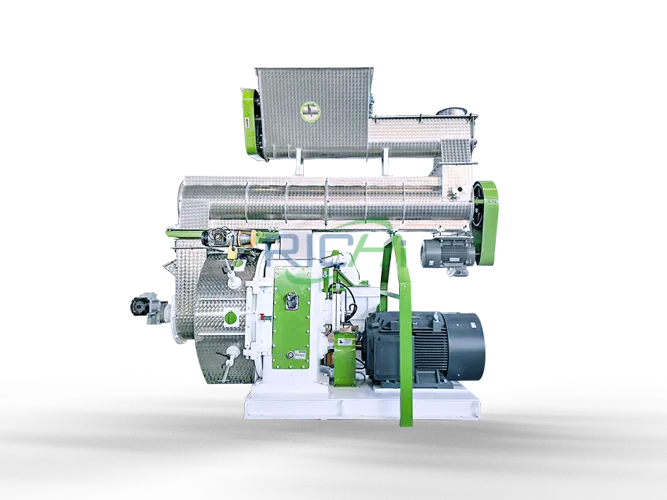

cZLH678 Straw Pellet Making Machine
- Capacity: 4-5 T/H
- Main Motor Power: 185 kW

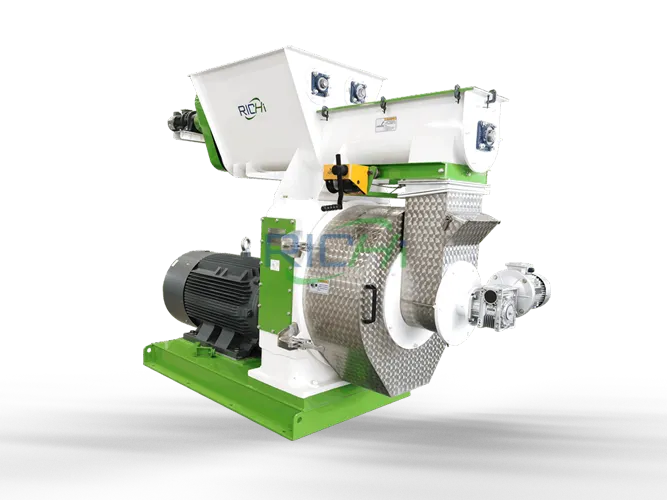

cZLH768 Straw Pellet Mill
- Capacity: 6-8 T/H
- Main Motor Power: 762 kW
| Model | Capacity(T/H) | Main Motor Power(kW) | Anti-bridging Feeder(kW) | Forced Feeder(kW) | Ring Die Diameter(mm) | Pellet Diameter(mm) |
| CZLH320 | 0.5-0.6 | 22 | 2.2 | 0.75 | 320 | 4-12 |
| CZLH350 | 1.0-1.2 | 37 | 2.2 | 0.75 | 350 | |
| CZLH420 | 1.8-2.0 | 90 | 3 | 1.5 | 420 | |
| CZLH520 | 2.8-3.0 | 132 | 3 | 1.5 | 520 | |
| CZLH678 | 4-5 | 185 | 3 | 1.5 | 673 | |
| CZLH768 | 6-8 | 250 | 4 | 1.5 | 762 |
Core Competitiveness Of RICHI Straw Pellet Mill
We engineer the straw pellet mill for profitable biomass production. It delivers high pellet quality, stable output and long-term reliability. In this way, it helps you cut operating costs and maximize return on investment.
High Raw Material Adaptability
Our straw pellet machine can efficiently handles wheat straw, rice straw, corn stalks, and mixed agricultural residues. This adaptability ensures stable pellet production from seasonally available feedstocks, maximizing resource utilization and offering flexibility in raw material sourcing for our clients.
Durable Pelletizing Components
We manufacture the ring die and roller assembly of our straw pellet mill from high-alloy steels. In addition, we subject these components to advanced heat treatment. Thus, these core parts exhibit exceptional resistance to abrasion and fatigue. This durability cuts down long-term costs for part replacement and downtime.
Energy-Efficient Pellet Pressing
Our machine features an optimized compression ratio. This design minimizes unnecessary mechanical friction and compacting resistance. Consequently, it reduces energy consumption per ton of pellets substantially. It lowers operating costs dramatically and improves production economy.
Easy Operation & Maintenance
We design our straw pellet machine with a user-centric philosophy. For example, features like easy die replacement systems and centralized lubrication facilitate quicker servicing, minimizing operational complexity and required downtime.
Intelligent Control & Monitoring
Our straw pellet making machine comes with an advanced control system. Operators can regulate key parameters precisely, such as feeder speed and main motor load. Moreover, real-time monitoring and automated adjustments keep the production process within optimal conditions.
Precision Pellet Quality Control

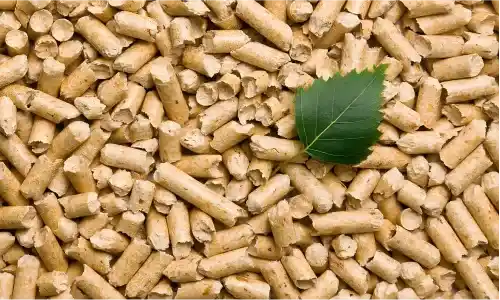

The pellets produced have high density, strong mechanical strength, uniform size and low fines content. They ensure stable, efficient combustion and improved energy utilization. Meanwhile, these pellets resist breakage and mold during storage and transportation, and offer high commercial value.
How the Straw Pellet mill Works
The working principle of a straw pellet mill is a continuous process that transforms loose straw into high-density pellet fuel or pellet feed through physical compression.
First, the crushed and conditioned (e.g., moisture-adjusted) straw feedstock is fed into the pelletizing chamber. Inside, the rotating ring die drives the rollers to forcibly compress the material through the dense, regular holes on the die.
During this process, the material undergoes intense frictional heating under high pressure, causing the inherent lignin to soften and act as a natural binder.
Finally, the extruded material is cut, forming dense, smooth cylindrical solid pellets. Thereby it converts agricultural waste into standardized, clean-burning fuel — thereby converting agricultural waste into standardized, clean-burning fuel.
Wide Application Range of Straw Pellet Mill
RICHI straw pellet mill offers robust functionality and versatile performance, making it an ideal solution for diverse industrial and agricultural needs. It efficiently processes various raw materials into high‑density, uniform pellets. And the raw materials cover crop residues, grass and forestry waste.
Suitable Raw Materials
Our straw pellet press boasts broad raw material compatibility. It can efficiently process various agricultural straws, forages and forestry waste fiber materials. Furthermore, we realize the standardized, high-value on-site conversion of all types of biomass waste through customized pre-treatment and pelleting processes.
wheat straw
corn straw
rice straw
cotton stalk
hay
wooden waste
multiple industrial scenarios
The straw pellet mill is widely used across multiple industrial scenarios, serving as a core equipment for the large-scale and resource-efficient utilization of agricultural waste. It not only supplies biomass fuel plants and power plants that produce clean pellet fuel, but also supports the production of bedding materials for poultry and livestock. Additionally, it enables farms and agricultural cooperatives to locally convert straw resources, effectively improving resource utilization and economic benefits.

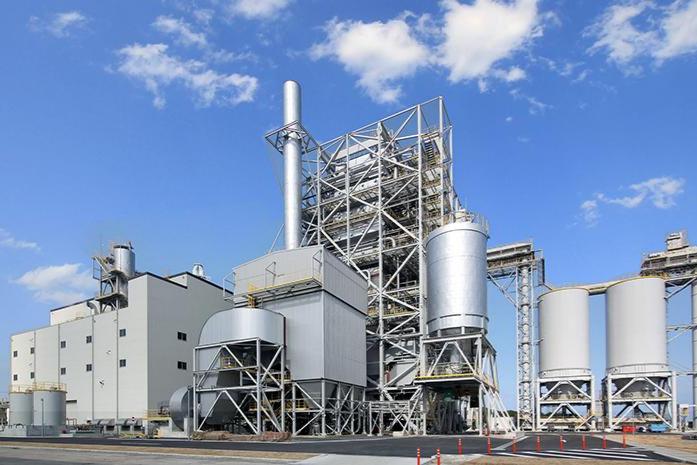

Biomass fuel plants
Biomass fuel plants producing straw pellets for boilers and heating systems.
Feed Manufacturer
Feed manufacturer and farms producing feed pellets for ruminant and livestock.
Animal bedding production
Animal bedding production, especially for poultry, horses, and livestock.

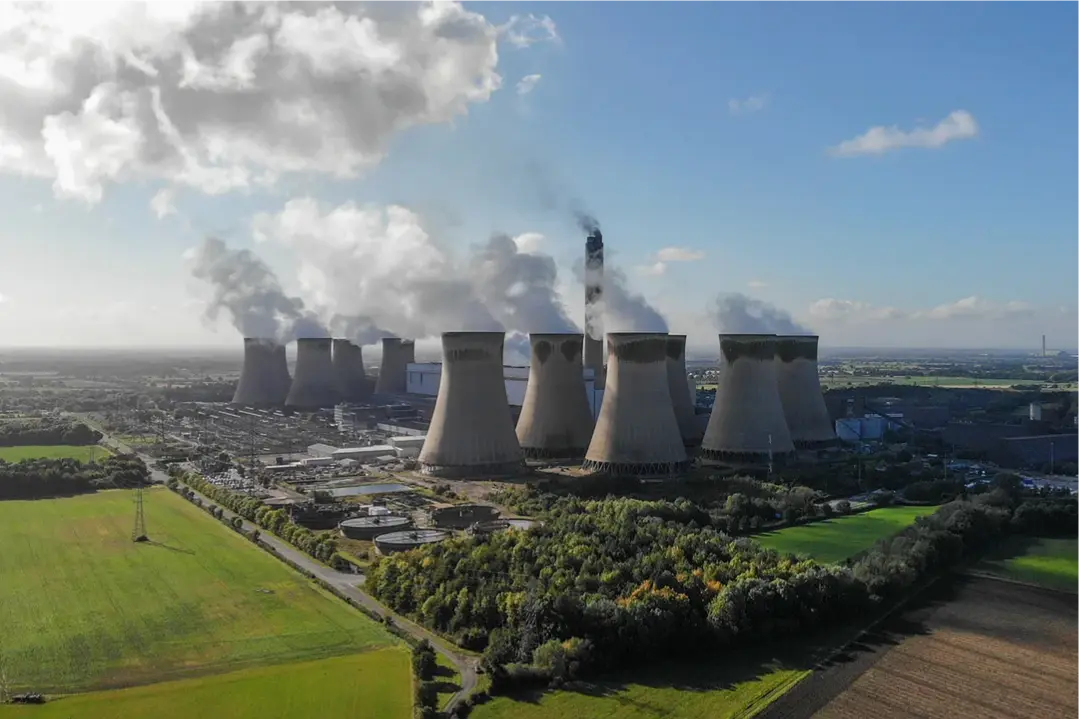

Biomass power plants
Biomass power plants using agricultural pellets as renewable fuel.
Straw Pellet mill Videos
Watch our straw pellet mill in action. These videos showcases its role as the core of diverse production lines, delivering power, stability, and premium quality in real-time.
Global Customer Cases
RICHI straw pellet mills are used in over 50 countries worldwide, supporting diverse industries such as biomass fuel production, animal feed manufacturing, and farm waste recycling. We provide reliable, efficient solutions to help global clients achieve sustainability goals.
Wheat Straw Pellet Mill for Sale Uzbekistan
A small-scale feed producer uses a RICHI straw pellet mill to process wheat straw and alfalfa into feed pellets for local ruminant farming.
- Capacity: 1-2 t/h
- Application: High-fiber feed for livestock
- Pellet Diameter: 4-8 mm
- Raw Material: Cottonseed meal, wheat bran, straw, alfalfa, and corn
High Fiber Straw Pellet Machine for Sale Philippines
A customized straw pellet press was delivered to handle local palm fiber and rice straw mix into ruminant feed, improving agricultural resource utilization.
- Capacity: 3-4 t/h
- Application: High-fiber feed for cattle and goats
- Pellet Diameter: 6-8 mm
- Raw Material: Palm fiber, coconut husk, rice straw mix
Industrial Straw Pellet Machine in Brazil
RICHI supplied a straw pellet making machine with a complete production line, converting mixed crop residues into commercial biomass pellets.
- Capacity: 5-6 t/h
- Application: Renewable energy pellets for industrial and export use
- Pellet Diameter: 8-12 mm
- Raw Material: Sugarcane residues (bagasse, straw)
Straw Pellet Mill for Livestock Feed in Egypt
We installed a compact straw pellet production unit for a Egyptian clients to recycle rice straw and corn stalks into affordable high-fiber feed for local sheep and camel farming.
- Capacity: 8-10 t/h
- Application: Economic fiber feed for sheep and camels
- Pellet Diameter: 4-10 mm
- Raw Material: Rice straw, corn stalks, barley straw

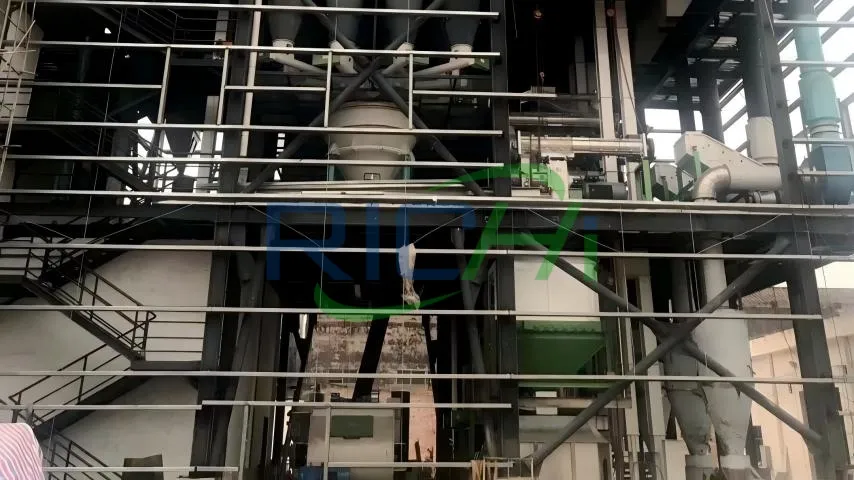

Straw Pellet Press for Livestock Feed in Australia
RICHI provided a heavy-duty straw pellet system to convert wheat straw and alfalfa into standardized high-fiber pellets for the equine and dairy feed market.
- Capacity: 10-12 t/h
- Application: Specialty fiber feed for horses and dairy cattle
- Pellet Diameter: 4-8 mm
- Raw Material: Wheat straw, alfalfa, oat hay

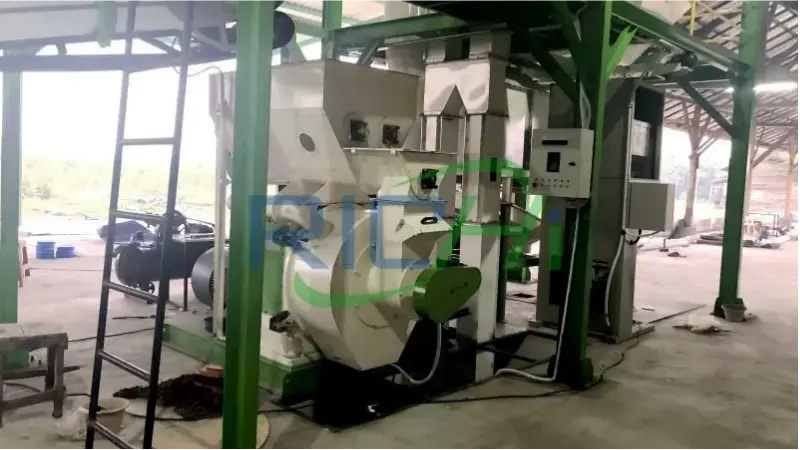

Commercial Straw Pellet Machine in Kazakhstan
RICHI delivered an commericial straw pellet mill to support biomass co-firing in local power generation.
- Capacity: 1-2 t/h
- Application: Biomass co-firing in local power plants
- Pellet Diameter: 8-12 mm
- Raw Material: Mixed agricultural residues
Other Equipment for a Complete Straw Pellet Production Line
We believe that while a high-performance straw pellet mill serves as the heart of production, true efficiency lies in the whole. Thus, we focus on delivering fully integrated, smoothly coordinated production systems tailored to your needs. Besides, we provide a complete set of biomass pellet mill, including bale breakers, crushers, mixers, pelletizers, coolers, and packaging machines…
01
Preprocessing System
Uses a bale breaker or unbaling equipment to loosen bundled straw for uniform subsequent handling and processing.
02

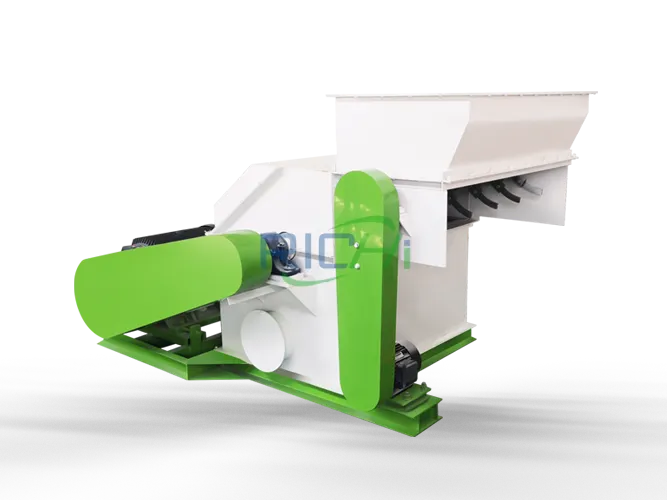

Crushing System
Utilizes a hammer mill to pulverize straw into appropriate particle size, ensuring pellet quality and production efficiency.
03
Drying System
Employs a rotary dryer or airflow dryer to adjust material moisture content to the optimal range for pelleting.
04
Mixing System
(for feed prodcution)
Utilizes a feed mixer to to uniformly mix the dried main feed ingredients with additives, ensuring formula consistency.
05
Cooling System
A counter‑flow cooler rapidly reduces pellet temperature and surface moisture, enhancing hardness and preventing spoilage.
06
Screening System
A vibrating screen separates finished pellets from fines, ensuring uniformity and recycling undersized material back into production.
07
Packing System
An automatic weighing and packing machine seals pellets into bags or bulk bags for storage and transportation.
08
Dust Removal System
Cyclone separators and pulse dust collectors are installed in various stages where dust is easily generated to continuously collect dust.
09
Conveying System
Screw conveyors, belt conveyors, and elevators form a continuous material‑handling network, connecting all stages for efficient operation.
10
Storage System
Silos provide dry, moisture‑proof storage for raw material or finished pellets. You can customize the silos’ size.
Why Invest in a Straw Pellet Mill?
Purchasing a straw pellet mill for sale is a strategic investment for biomass fuel plants and agricultural waste recycling projects.
Key advantages include:
Converting low-value straw into marketable biomass pellets
Reducing dependence on fossil fuels
Supporting sustainable energy initiatives
Creating new revenue streams from agricultural residues
RICHI provides cost-effective straw pellet machines for sale, suitable for both new projects and capacity expansion.
Why Choose RICHI Straw Pellet Mill?
RICHI is a trusted supplier of straw pellet mills for sale worldwide.
Professional Biomass Pellet Machine Manufacturer
RICHI specializes in the research, development, and manufacturing of biomass pellet equipment. With a dedicated engineering team and modern production facilities, we ensure every machine is built to industrial standards for durability and performance.
Customized Straw Pellet Making Machines
We understand that each project has unique requirements. Whether it’s adapting to specific raw materials, output capacity, or site conditions, RICHI offers tailored solutions to match your exact production needs.
Proven Global Project Experience
Our machines are successfully operating across the world. From small farm-based setups to large industrial pellet plants, our equipment has been field-tested in real-world applications, delivering reliable results under varying conditions.
Competitive Straw Pellet Machine Price
RICHI straw pellet machines are engineered for long service life and stable performance under continuous operation. By minimizing the need for frequent part replacement, we help clients achieve significantly lower long-term operating costs, delivering true value through reliability and sustained performance.
Comprehensive Turnkey Project Solution
RICHI provides a complete turnkey service encompassing project planning, equipment customization, installation and commissioning, and operational training. We supply not only high-performance pellet mills but also professionally integrated systems across the entire production line.
Reliable After-Sales and Technical Support
We provide full factory construction servicesfrom raw material input to finished productpackaging. You just need to “turn the key” andstart production. The system is efficient andstable, helping you improve efficiency, reducecosts, and save time and effort.
Frequently Asked Questions
Below is a compilation of frequently asked questions from customers regarding the purchase of our straw pellet mill. If you have any questions,please feel free to contact us.
What capacity options are available for straw pellet machines?
+
Our straw pellet machines for sale are available in a wide range of capacities, from 1–2 t/h for small farms to 5–8 t/h for industrial biomass plants, depending on the model and configuration.
Can one straw pellet making machine handle different crop waste types?
+
Yes. With proper die design and parameter adjustment, one machine can process various straw materials.
How much does a straw pellet mill for sale cost?
+
Pricing depends on capacity, configuration, and automation level. Contact us for a customized quotation.
Does a straw pellet machine require pre-treatment equipment?
+
Yes. For optimal performance, raw straw should be crushed and dried before pelletizing. A complete straw pellet production line typically includes crushing, drying, pelletizing, cooling, and packing systems. We can supply professionally integrated systems across the entire production line.
How durable is your straw pellet machine?
+
Our high-quality straw pellet machine is built with wear-resistant dies and rollers, ensuring long service life and stable pellet quality even when processing abrasive straw materials.
Do you provide installation and after-sales support?
+
Yes. We offer professional installation guidance, operator training, and long-term technical support to ensure smooth operation and reliable performance.
Besides, our straw pellet mill comes with a 12-month warranty. We stock a full range of spare parts for all wear components—including ring dies and press rollers—and offer long-term preferential pricing to keep your production running smoothly.（View our YouTube）
