Wood pellet mill for sale

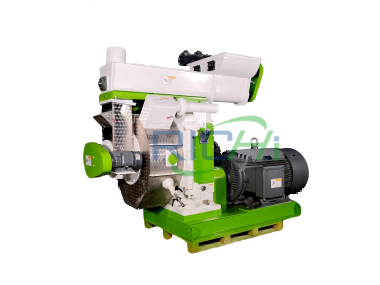

Introduction of Wood Pellet Mill for Sale
Wood pellet mill for sale is a core equipment for producing biomass pellet fuel. It converts various agricultural and forestry wastes (such as crop straw, rice husks, wood chips, and wood processing residues) into high-density cylindrical pellets through a high-temperature and high-pressure process. This pellet fuel can replace coal, crude oil, and natural gas as a clean and renewable eco-friendly energy source, widely used in domestic heating, industrial boilers, and biomass power plants.
Wood pellet mill processes agricultural and forestry wastes through heating and softening, high-pressure molding, precise cutting, and systematic cooling to achieve efficient resource recycling. This technology helps alleviate energy shortages, reduce environmental pollution, and significantly lower energy costs.
RICHI Machinery offers a range of wood pellet mills with individual machine capacities spanning from 0.2 to 4 T/H, catering to diverse production scales and raw material requirements. If you are looking for efficient and reliable biomass pellet production equipment, please feel free to contact us. We not only provide industry-leading machinery but also tailor professional solutions based on your specific raw material characteristics, capacity requirements, and site conditions. Free consultation and quotations are available!
Technical Features
With 30 years of specialized experience in manufacturing wood pellet mills, RICHI Machinery possesses industry-leading expertise. Our wood pellet mill for sale is renowned for their superior performance, extended service life, and high-quality pellet output.

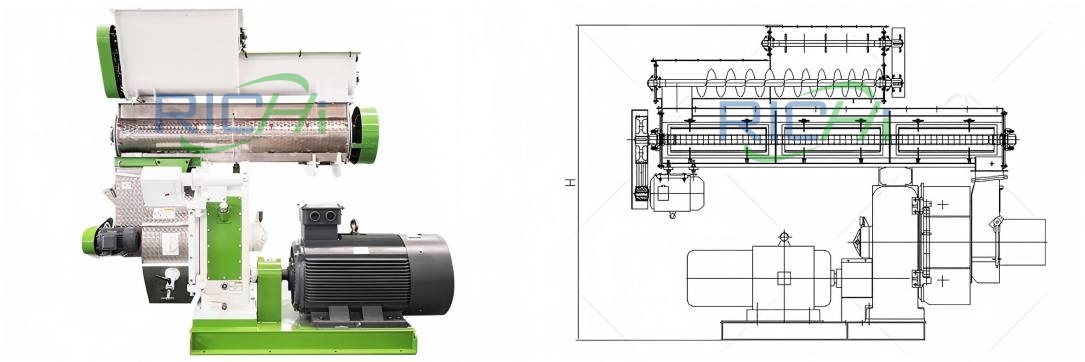

The core components of the RICHI wood pellet mill machine for sale include: forced feeder, pelletizing chamber, Siemens motor, alloy steel ring die, roller assembly, cutting device, safety device, exhaust port, automatic lubracation system, electrical control system. These components work synergistically to ensure exceptional performance in production capacity, energy consumption control, and finished product quality.
01

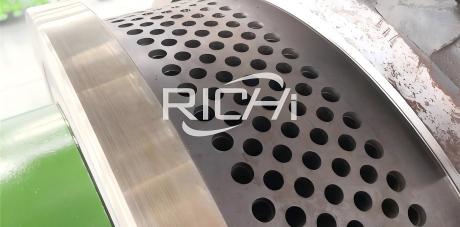

Alloy Steel Ring Die
The ring die is manufactured from high-quality 42CrMo alloy steel and undergoes carburizing heat treatment, providing exceptional wear resistance and a service life exceeding 10,000 hours.
Our wood pellet mill is also furnished with ring dies featuring various aperture sizes to accommodate diverse raw materials and produce pellets with different hardness levels and dimensions.
02

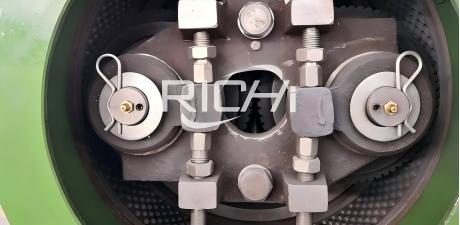

Roller Assembly
Both the roller shell and roller core are manufactured from high-quality alloy materials. Through precision machining and heat treatment, they exhibit outstanding wear resistance.
The unique structural design ensures uniform and stable compression between the rollers and the ring die, resulting in the production of high-quality wood pellets.
03

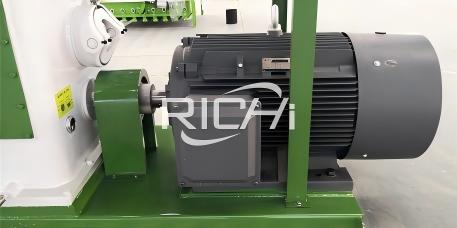

Siemens motor
The MZLH series wood pellet mill for sale is equipped with high-quality Siemens motors, ensuring powerful operation, stable performance, and high production efficiency.
Designed with low energy consumption, it significantly reduces power consumption while maintaining reliable operation, enabling energy-efficient production.
04

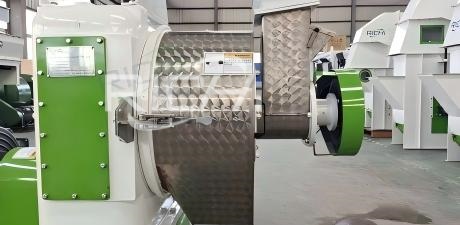

Pelletizing Chamber
The pelletizing chamber is the core component of the wood pellet mill. Inside the pelletizing chamber, wooden raw materials are compressed between the ring die and rollers, ultimately forming dense and uniform wood pellets.
05

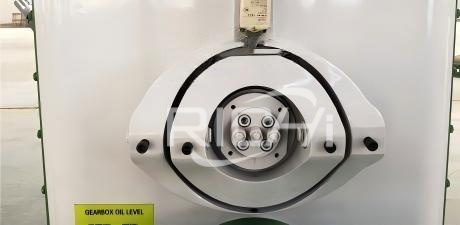

Safety Device
In the event of equipment overload or abnormal operation, the safety pin will break, immediately cutting off the power supply and triggering an automatic shutdown. This mechanism protects critical components from severe damage and prevents potential operational risks.
06

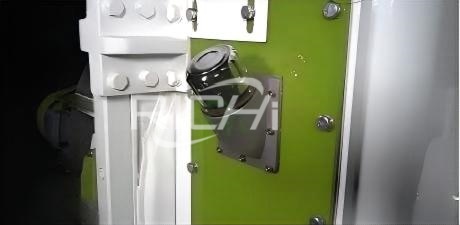

Lubrication System
By implementing efficient lubrication on components such as bearings and transmission systems, the wear between parts can be effectively reduced, thereby extending the service life of the equipment. It can also lower energy consumption and improve transmission efficiency.
07

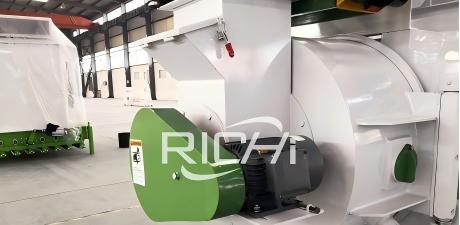

Forced Feeder
The feeder is located at the top of the wood pellet mill, where wooden raw materials enter the pelletizing chamber. To address the lightweight and poor flow characteristics of wooden materials, it is equipped with a forced feeder featuring an anti-bridging device.
This mechanism ensures positive conveyance of materials into the pelleting chamber, effectively preventing bridging and blockages, thereby guaranteeing continuous and efficient pellet production.
08

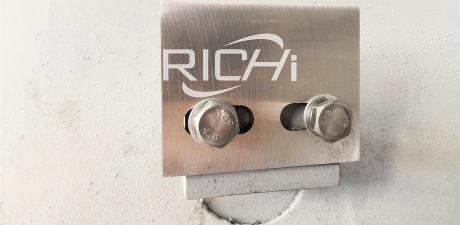

Cutting Device
Equipped with a high-efficiency cutter system, the pellet length can be precisely controlled by adjusting the distance between the cutter and the ring die.
The cutters are made of wear-resistant alloy material and undergo special surface treatment, offering excellent durability and ease of maintenance.
The modular design allows for quick disassembly and assembly, ensuring uniform pellet morphology while significantly reducing maintenance time and cost.
09

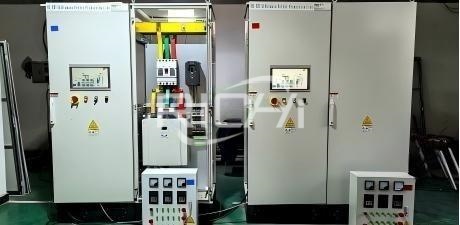

Electrical Control System
The fully automated electric control system enables real-time monitoring and adjustment of equipment operating parameters.
It dynamically regulates key parameters such as feeding speed, chamber pressure in the wood pellet mill, and the operation status of the cutting device based on actual conditions, ensuring adaptability to different raw material characteristics and production requirements.
How the Wood Pellet Mill Works
The wood pellet mill essentially transforms loose wood waste into dense pellets through a process of compression and shaping. The core of the entire process involves pre-treatment first, then extrusion, and finally shaping and cutting.
Below is a detailed step-by-step explanation:
First , the crushed biomass material is evenly fed into the pelletizing chamber through a feeder equipped with a frequency conversion speed regulation device. This allows precise control of the feeding rate, ensuring uniform material entry and effectively preventing equipment overload due to excessive feeding or idle running caused by insufficient feeding. An anti-bridging bin integrated above the feeder continuously stirs the material to prevent clogging and blockages.
Second , it’s the core process of the wood pellet production — extrusion and molding. After the wood raw material enters the pelletizing chamber, it is compressed by high-speed rotating rollers and forced into the small holes of the ring die. These holes shape the wood material into elongated strips.
Third , after the wood shavings are extruded through the ring die holes under the pressure of the rollers, a cutting device located outside the ring die trims the extruded strips into uniform pellets according to the preset length.
The newly formed pellets, which are at a high temperature, are conveyed to cooling equipment to reduce them to room temperature. This prevents mold formation or clumping caused by stacking hot pellets. Finally, the pellets pass through a screening device to remove fine powder.
Technical Specifications of RICHI Wood Pellet Mill for Sale
| Model | MZLH320 | MZLH350 | MZLH420 | MZLH520 | MZLH678 | MZLH768 |
| Capacity(T/H) | 0.2-0.3 | 0.3-0.5 | 1.0-1.2 | 1.5-2.0 | 2.5-3.0 | 3.0-4.0 |
| Main Motor Power(kW) | 22 | 37 | 90 | 132 | 185 | 250 |
| Arch-breaking feeder power (kW) | 2.2 | 2.2 | 3 | 3 | 3 | 4 |
| Forced feeding device power (kW) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Ring Die Diameter(mm) | 320 | 350 | 420 | 520 | 673 | 762 |
| Pellet Diameter(mm) | 4~12 | |||||
RICHI wood pellet mill for sale is capable of processing a wide variety of biomass raw materials. We offer multiple models with different output capacities and power specifications to meet diverse customer needs. Customized solutions are also available based on your specific production requirements.
Benefits of RICHI Wood Pellet Mill for Sale
With 30 years of specialized experience in manufacturing wood pellet mill, RICHI Machinery possesses industry-leading expertise. Our wood pellet mill machine is renowned for their superior performance, extended service life, and high-quality pellet output.
Wood Pellet Mill Video
Below are the videos of the MZLH series wood pellet mill for sale. Through this video, you will gain an intuitive understanding of how wooden raw materials such as logs, wood strips, wood chips, boards, sawdust, and shavings are processed and transformed into “high-calorific-value, pollution-free” biomass pellet fuel.
wood pellet mill Testing Video
This video shows the entire process of the MZLH series wood pellet mill.
Introduction of wood pellet mill
This video comprehensively introduces the MZLH series wood pellet mill for sale.
Customer Cases
RICHI Machinery’s wood pellet mill has been exported to more than 140 countries and regions, earning widespread customer recognition. We have selected some cases for your reference. If you require complete technical solutions or detailed engineering information for any project, our engineering team is readily available to provide professional support and comprehensive assistance.

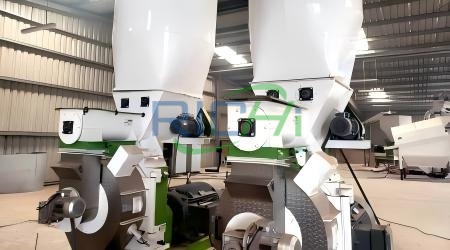

5 T/H Wood Pellet Mill exported to in Austria
This industrial wood pellet mill is tailored for a advanced Austrian biomass energy company. It can achieve a stable output of 5 tons per hour, converting wood residues (such as sawdust, wood shavings, and branches) into clean and efficient 4mm wood pellets.
The finished pellets will primarily be used for heating small-scale private residences and medium-sized industrial boilers in Austria.
- Model: MZLH-520 wood pellet mill for sale(2 units)
- Main Motor Power: 132kW
- Pellet Size: 4mm

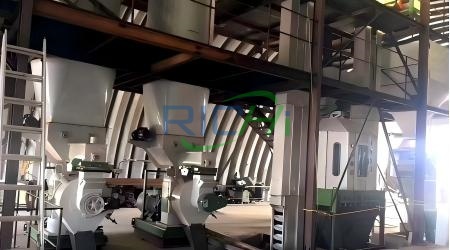

2-3 T/H Wood Pellet Mill exported to Canada
Our commercial wood pellet mill boasts strong raw material adaptability and stable molding capabilities, with a production capacity of 2-3 tons per hour.
This wood pellet mill successfully and efficiently converted the Canadian customer’s raw materials (consisting of wood chips with a moisture content of up to 50%) into standardized fuel pellets with a diameter of 6-10 mm, meeting the local market’s demand for clean burning energy.
- Model: MZLH-520 wood pellet mill for sale
- Main Motor Power: 132kW
- Pellet Size: 6-10mm

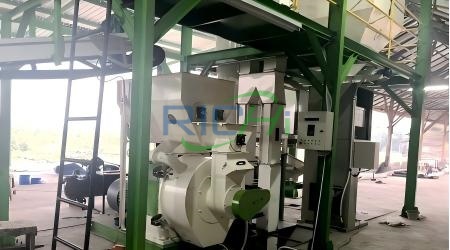

1-1.5 T/H Small Wood Pellet Sale exported to Indonesia
The client is an Indonesian wood processing company with stable and sufficient sources of sawdust raw materials. To enhance the added value of wood waste, the company plans to establish a small-scale wood pellet production line.
The client requires a stable production capacity of 1-1.5 tons per hour and finished pellets with a diameter of 6-8mm, ultimately selecting a 132kW wood pellet machine for the production line.
- Model: MZLH-520 wood pellet mill for sale (2 units)
- Main Motor Power: 132kW
- Pellet Size: 6-8mm
Application of Pellets Produced by Wood pellet mill
Wood pellet mill can process any agricultural and forestry waste into biomass pellets that can be burned as an alternative to coal and natural gas. These biomass pellets can not only serve as an environmentally friendly heating fuel but are also used in multiple fields such as energy, industry, and agriculture. They represent a successful model of biomass energy utilization.
Heating and Warm Supply
Wood pellets are used to provide heating and hot water for households, schools, hotels, factories, and other large-scale facilities. Using wood pellets as the fuel for heating systems not only replaces traditional fossil fuels but also provides continuous and stable heating, combining economic efficiency with environmental friendliness.

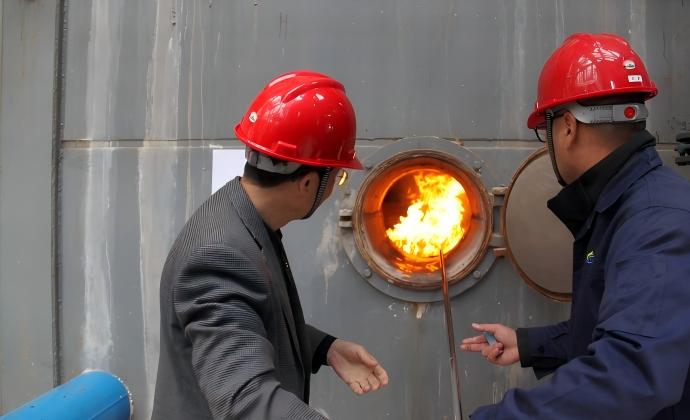

Industrial Boiler Fuel
Many factories requiring steam or thermal energy (such as textile mills, chemical plants, and food processing plants) can use wood pellets as an eco-friendly alternative to coal, crude oil, or natural gas. This helps reduce operating costs and comply with environmental regulations.

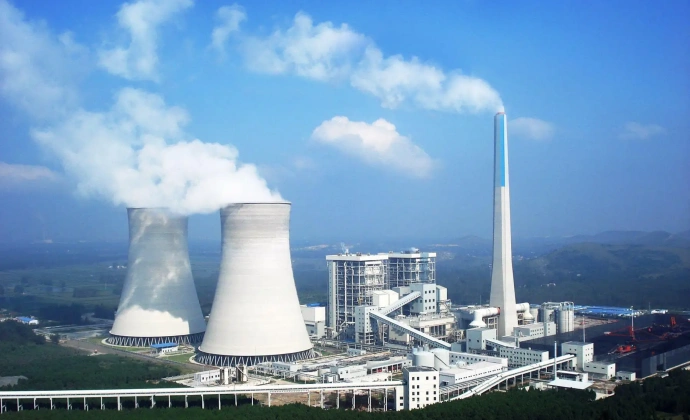

Power Generation
Wood pellets serve as a primary fuel in large-scale power plants. Through direct combustion or co-firing, they generate steam to drive turbines for electricity production. This represents an important renewable energy generation method that helps reduce reliance on fossil fuels and lower carbon emissions.
Animal Bedding
Wood pellets offer excellent absorbency and odor control, making them suitable for use as bedding in horse stables, chicken coops, and enclosures for hamsters and rabbits. They effectively absorb urine, maintain a dry and hygienic environment, reduce odors and bacterial growth, and improve the living conditions for animals.
A complete Wood Pellet Production Line
A complete wood pellet production line covers all processing stages from raw materials to finished pellets, including: Chipping Stage, Crushing Stage, Drying Stage, Buffer Storage Stage, Pelletizing Stage, Cooling Stage, Packaging Stage.
Chipping
01
This stage is primarily designed for the chipping processing of large-sized raw materials such as timber and wood panels.
Crushing
02
This stage utilizes a water-drop type hammer mill to pulverize the raw materials into fine powder. The crushed material is then extracted from the hammer mill by airflow, enters a cyclone for dust removal and collection, and is finally conveyed to a buffer storage bin.
Drying
03
The crushed material may have high moisture content and requires drying. A hot air furnace generates hot air, which is conveyed to the drying cylinder by an induced draft fan. During rotation, the drying cylinder continuously lifts and disperses the material, ensuring full contact with the hot air for effective drying.
Buffer Storage
04
The dried material is conveyed via belt and auger to a storage bin for temporary buffering. This allows the moisture within the dried material to redistribute evenly in the bin, ensuring uniform moisture content and facilitating stable operation of the pellet mill during the pelletizing process.
Pelletizing
05
The crushed material is fed into the feeder, which is equipped with an anti-bridging bin to continuously stir the material and prevent agglomeration. Through the forced feeder, the raw material is forcefully conveyed into the pelletizing chamber for pellet formation.
Cooling
06
The newly formed pellets are at a high temperature and prone to mold or clumping, thus requiring cooling. Inside the cooling bin, the pellets are cooled to room temperature through a counter-current air circulation system. The bottom of the cooling bin is equipped with a simple screen, and the cooled pellets undergo further screening to improve their quality and ensure they meet standards.
Packaging
07
The screened finished pellets are conveyed via a steep-angle belt conveyor to the finished product bin. Below the bin, an automatic weighing system for ton bags is installed to package the pellets according to preset weights.
Frequently Asked Questions
Here are some questions you may want to ask. If you have any problem, please contact us.
–
What raw materials can the MZLH series wood pellet mill for sale process?
The MZLH series wood pellet mill for sale is designed to process various biomass organic materials, including:
- Agricultural waste: Straw, wheat husks, rice husks, peanut shells, corn cobs, etc.
- Wood waste: Branches, wood boards, wood strips, sawdust, wood shavings, used furniture, etc.
- Other waste materials: Animal manure and kitchen waste.
As long as your raw material is biomass organic matter, our wood pellet mill can process it into high-quality pellets.
–
Does the MZLH series wood pellet mill have requirements for raw material moisture?
No. Powdered raw materials with a moisture content of 13%–18% can be directly processed into pellets by the wood pellet mill. If the moisture content of your raw materials does not meet this range, we recommend pre-treatment (e.g., drying) to adjust the moisture to the optimal level before pelletizing.
–
What is the price of a single wood pellet mill?
MZLH wood pellet mill price varies depending on the production capacity, typically ranging from $4,100 to $85,000 USD. Below is the standalone price for different models with their corresponding outputs:
| Model | Capacity | Main Motor Power | Guiding Price |
| MZLH320 | 0.2-0.3T/H | 22kW | $4,100 -17,000 USD |
| MZLH350 | 0.3-0.5T/H | 37kW | $18,500 -22,000 USD |
| MZLH420 | 1.0-1.2T/H | 90kW | $26,600 -32,000 USD |
| MZLH520 | 1.5-2.0T/H | 132kW | $43,100 -50,000 USD |
| MZLH678 | 2.5-3.0T/H | 185kW | $65,100 -70,000 USD |
| MZLH768 | 3.0-4.0T/H | 250kW | $76,500 – 85,000 USD |
–
What are the brands and materials used for key components of wood pellet mill such as bearings, gears, and the ring die?
Key components including the ring die, gears, gear shafts, main shaft, and hollow shaft are manufactured from 42CrMo alloy steel with carburizing heat treatment for maximum durability. The gearbox is made of HT250 cast iron. SKF brand Gear shaft and main shaft bearings. High-quality domestic (Chinese) Roller bearings. Oil seals imported from Germany. Siemens Brade brand motor.
Additionally, the machine is constructed with high-quality stainless steel, ensuring robust durability, corrosion resistance, and a long service life.
–
Are there spare parts in stock for wear-prone components?
Yes. We supply individual parts for our wood pellet mill, making it convenient for customers to perform replacements and helping to reduce your long-term investment costs.
–
Do you provide free on-site installation and training services?
For our international clients investing in our wood pellet mill for sale, we provide lifetime free technical guidance support. Upon delivery of the machine, we will dispatch professional engineers to your site for installation and commissioning, and provide hands-on training for your operators. In addition, detailed user manuals and instructional videos are available for reference. Should you have any needs or questions, our 24/7 online customer service team is always ready to assist you promptly.
