Introduction of RICHI Fish Feed Production Line
RICHI Machinery specializes in feed production equipment solutions, offering fish feed processing line configurations with capacities ranging 0.1- 60T/H. We provide modular and flexible solutions based on customers’ actual needs, such as capacity planning, raw material properties (grains/protein raw materials/liquid additives, etc.), and investment budget.
What is the fish feed production line
A fish feed production line is a complete set of equipment for fish feed manufacturing.
It processes various raw materials, including:
- Protein sources: fish meal, shrimp meal, meat and bone meal, soybean meal, cottonseed meal, corn gluten meal
- Energy sources: corn flour, wheat flour, rice bran, wheat bran
- Fat sources: fish oil, corn oil, phospholipid oil
- Binders: wheat flour, corn flour
- Additives: minerals, vitamins, amino acids, antioxidants, probiotics
Key processes include crushing, mixing, extrusion/pelletizing, drying, coating, cooling, screening, and packaging. The line produces fish feed of different specifications, covering the needs of almost all freshwater and marine aquaculture species. It enables standardized, large-scale production.
If you are seeking solutions for fish feed production lines or the professional equipment to produce aquatic feeds, feel free to contact us for a free, customized solution tailored to your specific needs.
Application of RICHI Fish Feed Production Line
RICHI provides customized fish feed production line solutions, tailored to your specific raw material characteristics, investment budget, and production scale. Our lines are capable of producing floating, slow-sinking, and sinking feed types to meet the needs of various farming practices, fish species, and breeding models.
Our technology is adaptable to all aquaculture environments, including freshwater, seawater, and specialized applications, delivering precisely formulated feed. With an extensive capacity range from 0.1 to 60 T/H, our solutions are scaled to meet the demands of enterprises of all sizes.
Black Bass
Flatfish
Grouper
Cod Fish
Salmon
Bullfrog
Working Process of Fish Feed Production Line
A fish feed production line is an integrated system engineered to convert raw ingredients—such as fishmeal, soybean meal, grains, vitamins, and other nutritional additives—into uniform, nutrient-dense aquatic feed pellets.
This is achieved through a sequenced process that includes raw material cleaning, crushing, batching and mixing, conditioning, extrusion or pelleting, cooling, and final screening and packaging.
Raw Material Cleaning
01
During precleaning, various impurities mixed in the raw materials such as stones, metal fragments, rope pieces are removed to protect both the production line equipment and ensuring the hygiene and quality of the final feed.
Crushing
02
Cleaned raw materials are crushed to 80-120 meshes by an ultra-fine grinder to improve feed digestibility. Finer crushing makes pellets denser (more water-resistant) and supports uniform mixing later.
Batching and Mixing
03
After the crushed raw materials are weighed according to the formula, they are sent to the mixer. High-speed stirring ensures the materials are evenly mixed, guaranteeing balanced nutrition.
Conditioning
04
Mixed raw materials enter the conditioner, where they are mixed with steam to achieve sterilization, curing, and gelatinization—enhancing the digestibility and safety of the feed. Meanwhile, the conditioned materials become softer and more plastic, facilitating pelletizing.
Extrusion/Pelleting
05
Both extruders and feed pellet mills can be used for pelletizing. Extruders produce feed that is porous and loose, which can be used as floating fish feed. Pellet mills produce fish feed with strong water absorption, which can only be used as sinking fish feed.
Drying
06
The moisture content of extruded pellets is 20%-30%. Hot air generated by a dryer is required to reduce the moisture of the pellets (both on the surface and inside) to approximately 10%, facilitating safe storage.
Coating
07
RICHI fish feed line uses post-spraying technology to protect heat-sensitive nutrients from thermal processing damage. Moreover, the extruded porous pellets have strong adsorption, greatly increasing oil addition.
Cooling
08
The coated pellets are at a relatively high temperature and need to be cooled by a counterflow cooler to near ambient temperature before packaging. This prevents condensation and mold growth, and maintains pellet crispness.
Screening and Packaging
09
The cooled finished pellets are passed through a vibrating screen to separate broken fines and off-spec particles, ensuring uniform size of the final product. The screened-out fines can be returned to the production process for reuse. The qualified finished feed is then weighed by an automatic packaging scale, filled into feed bags, and sealed.
Key Equipment for Fish Feed Production Line-Feed Pellet Machine and Extruder Machine
Both pellet mills and extruders can be used in fish feed production line, but their working principles and finished pellets differ significantly. Each has its pros and cons, and the choice should be based on factors such as the type of feed to be produced, production scale, and investment cost.

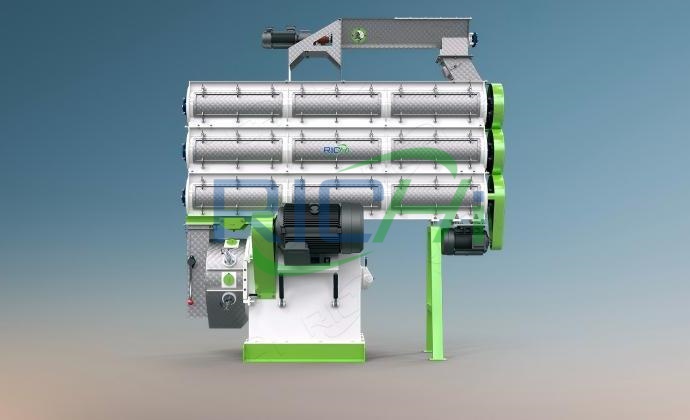

Feed Pellet Making Machine
- Core Function:Press the conditioned powder into hard pellet feed (non-expanded state).
- Processing Temperature: Relatively low (60 – 85°C), mainly relying on steam conditioning.
- Pellet Shape: Sinking feed, with a dense structure and density greater than that of water.
- Key Components: Ring die/flat die, roller, transmission system, cutter.
- Main Advantages: Low equipment investment, low production cost, and high output.
- Suitable Fish Species: Demersal fish (such as carp, black carp, crucian carp, etc.), crustaceans (such as turtles, crabs).

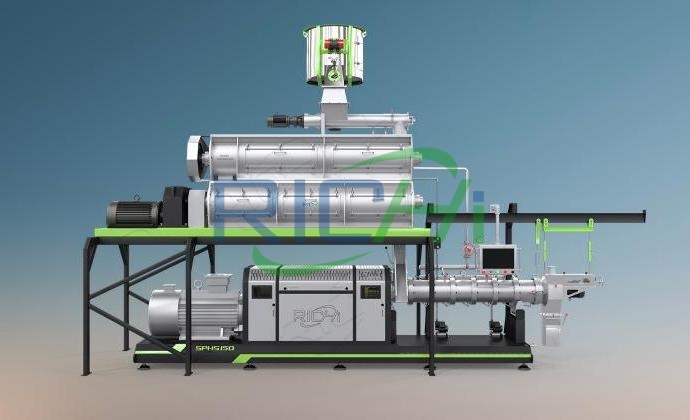

Fish Feed Extruder Machine
- Core Function: Process powder into porous expanded feed through high temperature and high pressure extrusion and shearing.
- Processing Temperature: Extremely high (120 – 180°C), mainly relying on mechanical heat generation from friction and steam heating.
- Pellet Shape: Can produce floating, sinking, and slow-sinking feeds, with a loose and porous structure.
- Key Components: Screw (mainly twin-screw), screw sleeve, mold (discharge hole), shearing element, transmission system.
- Main Advantages: Diversified products, good gelatinization degree, high digestion and absorption rate, and thorough sterilization.
- Suitable Fish Species: Upper and middle layer fish (such as perch, silver carp, ornamental fish), fry/fingerlings, special fish.
Auxiliary Equipment for Fish Feed Production Line
A fish feed production line is a complex systematic project. Apart from the core fish feed extruder machine or feed pellet making machine, a series of auxiliary equipment is also required to work together to produce high-quality feed. RICHI Machinery has been deeply engaged in the R&D and production of animal feed pelletizing equipment for 30 years, ensuring pellet quality and processing line efficiency with professional technology.
Storage Silo
Storage Silos are used for storing raw materials or finished pellets. The storage silos/bins used in the pre-pelletizing stage also have a homogenization function, which can adjust the moisture content difference of materials and ensure the stability of the pelletizing process.
Raw Material Precleaner
It is used for the initial cleaning of feed raw materials. It removes impurities such as hemp ropes, stones, and plastics from the raw materials, clearing obstacles for subsequent processing links and preventing impurities from clogging or damaging equipment.
Fish feed Grinder
An ultra-fine grinder is a high-efficiency crushing equipment that can grind materials to an extremely fine particle size. It can crush raw materials to 80-200 meshes—the finer the crushed particle size, the denser the structure of the extruded feed pellets and the better their water resistance.
Fish feed Mixer
It achieves uniform material mixing through the high-speed rotation of two intermeshing screws, ensuring balanced nutrition. Additionally, the forced conveying structure of the twin screws reduces material residue and enables continuous production.
Fish feed Dryer
Freshly pressed feed pellets have high temperature and high moisture content, making them prone to bacterial growth. RICHI horizontal circulation dryer adopts intelligent temperature control technology, achieving efficient dehydration through stable and uniform hot air while preventing nutrient damage caused by overheating.
Vertical Vacuum Coater
The RICHI-XYPLC series vertical vacuum coaters are capable of adding coated oils (fish oil, corn oil) and liquid biological agents (vitamins, amino acids, antioxidants) to feed, enhancing the feed’s palatability and nutritional value-added. The oil coating amount can be precisely controlled (0-6%), and the coating is uniform without caking.
Counterflow pellet Cooler
Utilizing a principle where pellets and cooling air move in opposite directions, this equipment effectively prevents high-temperature pellets from cracking due to sudden cooling. A distributor installed at the top avoids excessive pile-up of pellets, ensuring uniform cooling.
Bucket Elevator
RICHI bucket elevator ensures smooth vertical material transport to the next process with stable performance. It uses edge-meshing technology ,featuring high strength and good tightness, and is fitted with an explosion-proof port for pressure relief.
Automatic Packing Machine
RICHI DCS Series automatic packer is ideal for quantitative weighing and packaging of pellet /powdery materials, with precise weighing, fast packaging, easy operation. Sewing or thermal sealing is available based on customers’ bag choices.
Benefits Of RICHI Fish Feed Production Line
RICHI Machinery has focused on fish feed production line solutions for 30 years, successfully delivering projects to clients in over 140 countries and regions. Our solutions offer not only outstanding cost-effectiveness but also incorporate technologies and components that are industry-leading, ensuring pellet quality and yield while minimizing your production costs.
Live Videos of RICHI Fish Feed Production Line
The following videos showcase the fish feed production process. Through these videos, you can intuitively understand the working principles of fish feed production machinery and the entire production process.

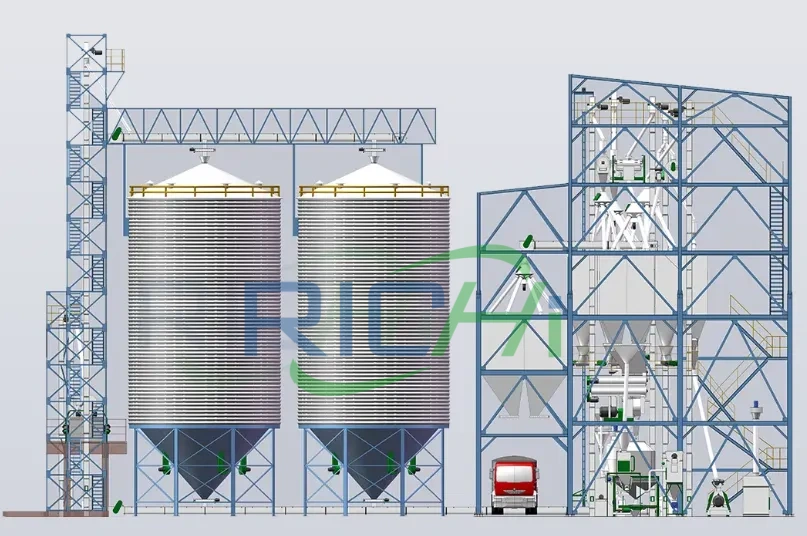

RICHI Fish Feed Production Line flowchart
RICHI can design a customized fish feed production line solution for you based on your needs such as raw material characteristics, production scale, and investment budget. Whether you want to produce floating fish feed or sinking fish feed, ordinary fish feed or high-quality special fish feed, we can provide you with the optimal production line plan. Below are production line flowcharts for different output capacities for your reference.

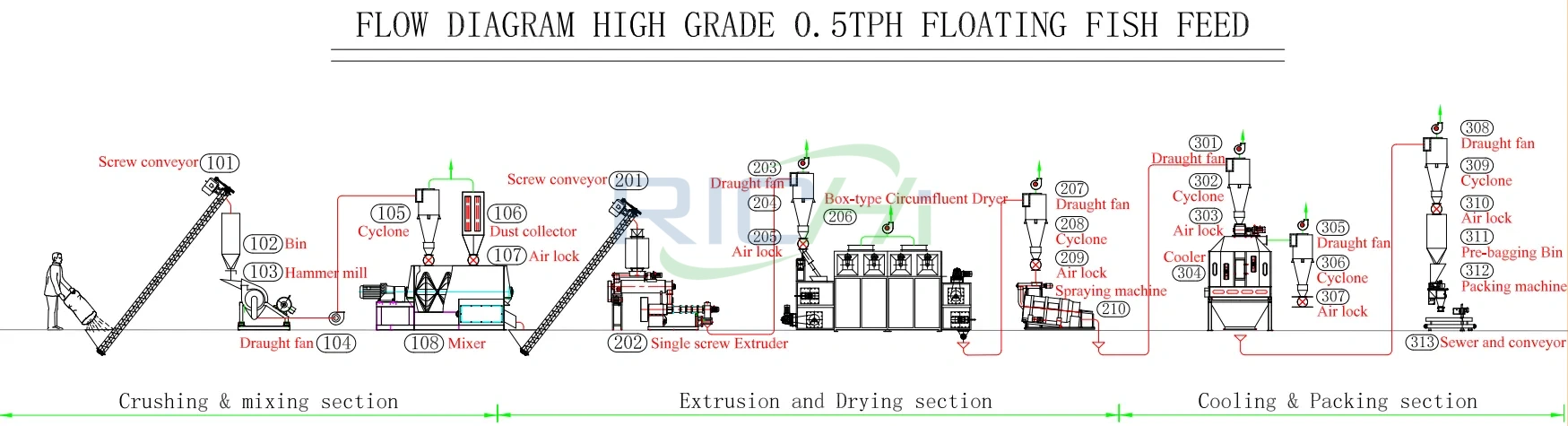

0.5 ton floating fish feed production line
Type of Feed Produced: Floating Feed
Process flow: Receiving system – Crushing system – Mixing system – Extrusion system – Drying system – Cooling system – Packaging system
Main equipment used: hammer mill, mixer, single screw extruder, box-type circumfluent dryer, spraying machine, virating screen, cooler, packaging machine, cyclone, screw conveyor

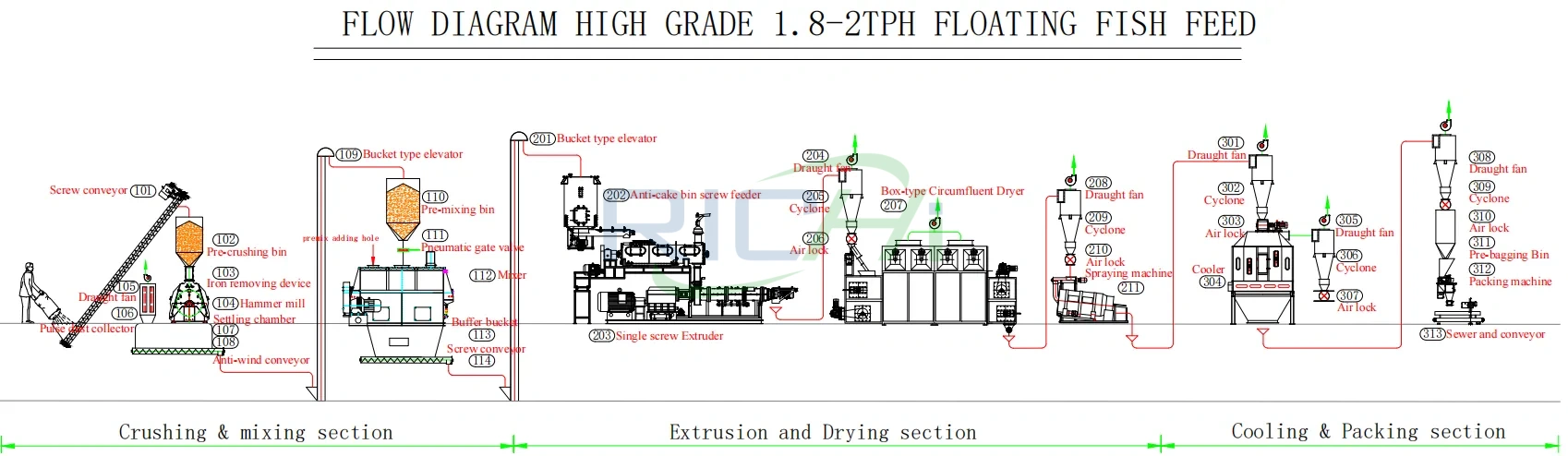

1.8-2 ton floating fish feed production line
Type of Feed Produced: Floating Feed
Process flow: Receiving system – Crushing system – Mixing system – Extrusion system – Drying system – Cooling system – Packaging system
Main equipment used: hammer mill, mixer, single screw extruder, box-type circumfluent dryer, spraying machine, virating screen, cooler, packaging machine, cyclone, screw conveyor
2.5-5 ton Shrimp Feed & 8-12 ton floating fish feed production line
Type of Feed Produced: Shrimp Feed and Floating Feed
Process flow: Receiving system – Crushing system – Mixing system – Micro-crushing system – Mixing system – Pelletilizing system – Drying system – Cooling system – Packaging system
Main equipment used: SFSP 66*100 drop-type hammer mill, mixer, SWFL 11OC ultra-fine grinder, aquatic feed pellet making machine, spraying machine, cooler, virating screen, packaging machine, cyclone, Z-type bucket elevator

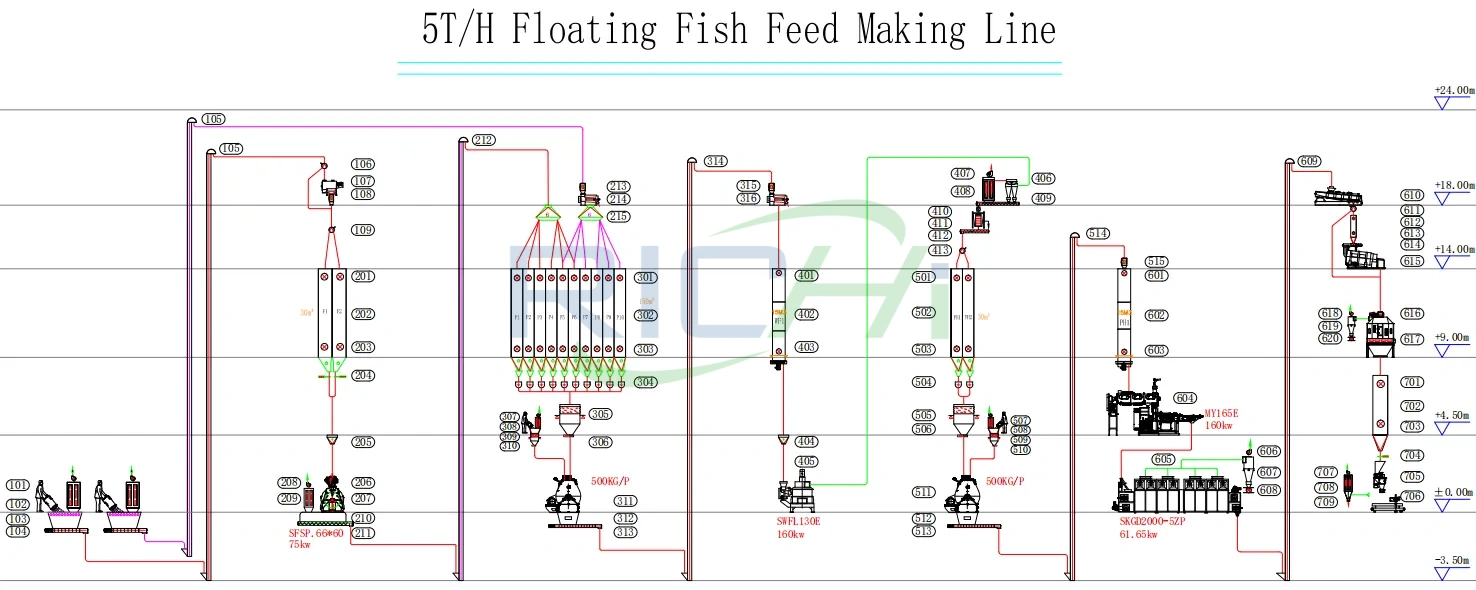

5 ton floating fish feed production line
Type of Feed Produced: Floating Feed
Process flow: Receiving system- Crushing system – Mixing system – Extrusion system – Drying system – Cooling system – Packaging system
Main equipment used: SFSP66*60 drop-type hammer mill, SWFL130E ultra-fine grinder, mixer, dual-screw extruder, box-type circumfluent dryer, spraying machine, cooler, virating screen, packaging machine, cyclone, Z-type bucket elevator

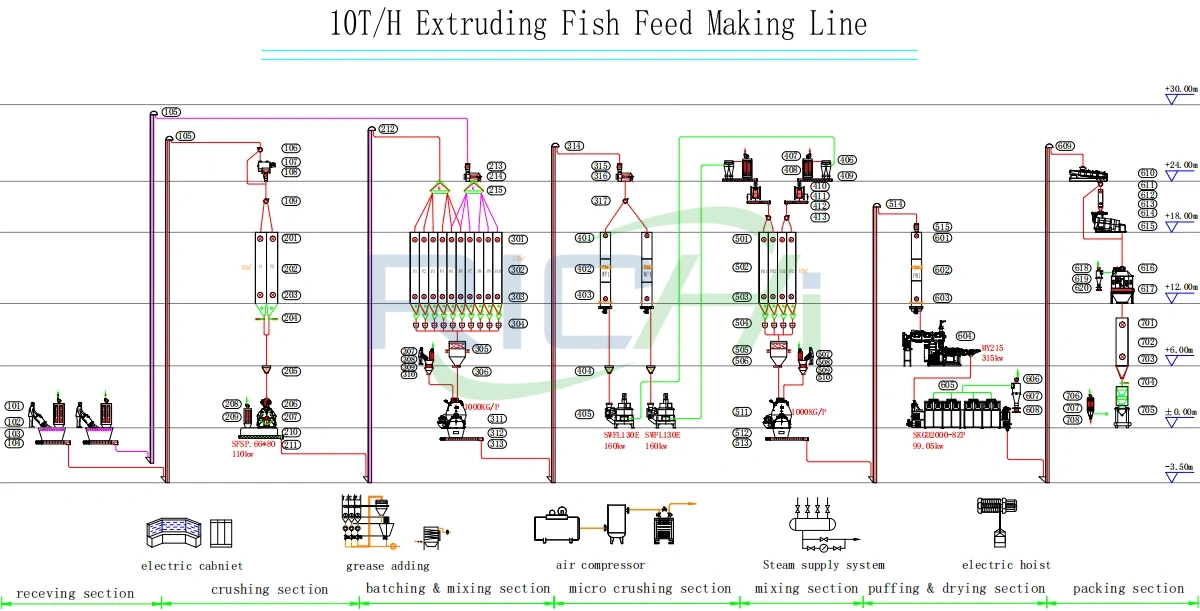

10 ton floating fish feed production line
Type of Feed Produced: Floating Feed
Process flow: Receiving system- Crushing system – Mixing system – Extrusion system – Drying system – Cooling system – Packaging system
Main equipment used: SFSP66*80 drop-type hammer mill, SWFL130E ultra-fine grinder, mixer, dual-screw extruder, box-type circumfluent dryer, spraying machine, cooler, virating screen, packaging machine, cyclone, Z-type bucket elevator
Customer Cases
We have selected some international successful cases for your reference. If you need to obtain the complete technical solution and detailed project information of any project, our engineering and technical team will provide you with professional support and detailed answers at any time.

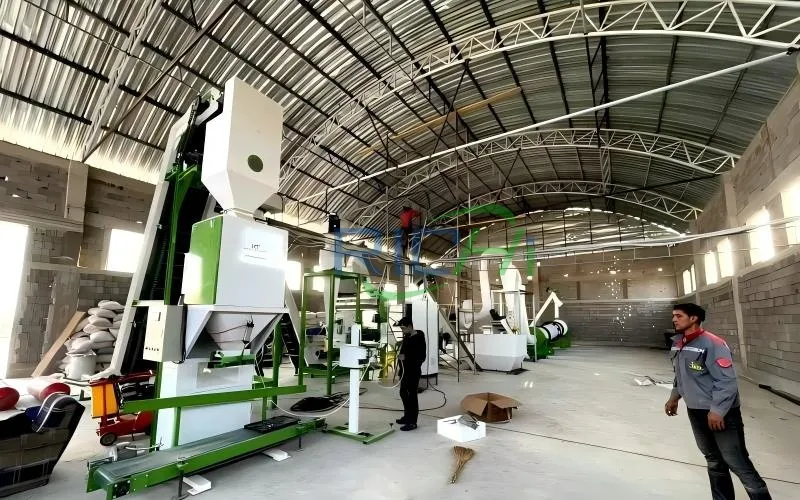

Uzbekistan 1 T/H Floating Feed & 1-2 T/H Animal Feed Production Line
The client aims to invest in and build a multi-functional, composite feed production line that can manufacture three products with significant differences: floating fish feed, chicken feed , and cattle/sheep feed.
The client expects this single production line to flexibly cover two major markets—aquaculture and livestock breeding—to maximize return on investment, reduce market risks, and meet the diverse needs of local breeding industries.
- Main Equipment: ultra-fine grinder, mixer, aquatic feed extruder, animal feed pellet mill, cooler and vibrating screen, packaging machine
- Capacity: 1 T/H fish feed pellets & 1-2 T/H cattle/sheep feed pellets
- Raw Materials: Corn, sorghum, forage grass, soybean meal, cottonseed meal, wheat bran, fish meal, oil, premix, etc.
- Pellet Size: 2-12 mm
- Guided Price: 300,000 USD

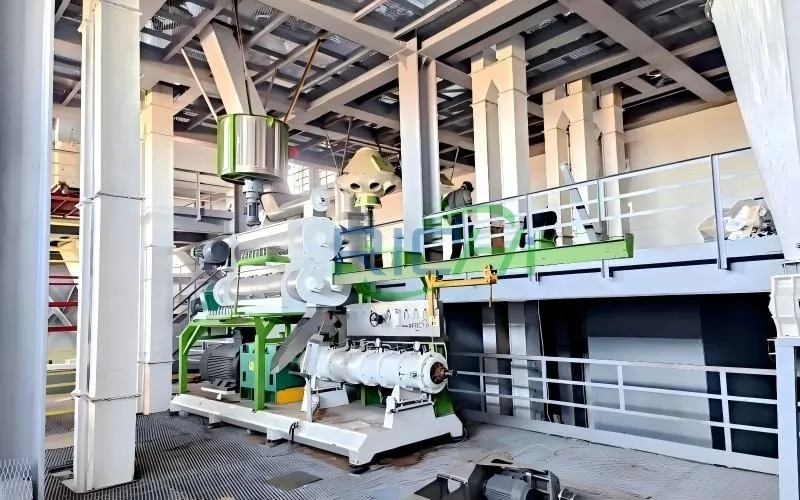

Russia 5 T/H Cold-Water Fish Feed Production Line
This Russian client is a large-scale aquatic feed producer, specializing in high-value cold-water fish such as salmon and trout. The client requires the production line to have a stable output capacity of 5 tons per hour, with frost-resistant capabilities to ensure reliable operation in severely cold climates.
The production line must be capable of processing high-fat and high-protein formulations, with the final product complying with the technical standards of the Eurasian Economic Union.
- Main Equipment: ultra-fine grinder, ribbon mixer, twin-screw extruder, horizontal circulating dryer, counter-flow cooler, vibrating screen, packaging machine
- Capacity: 5 T/H
- Raw Materials: Fish meal, fish oil, wheat flour, soybean meal, etc.
- Pellet Size: 2-12 mm
- Guided Price: 1,300,000 USD

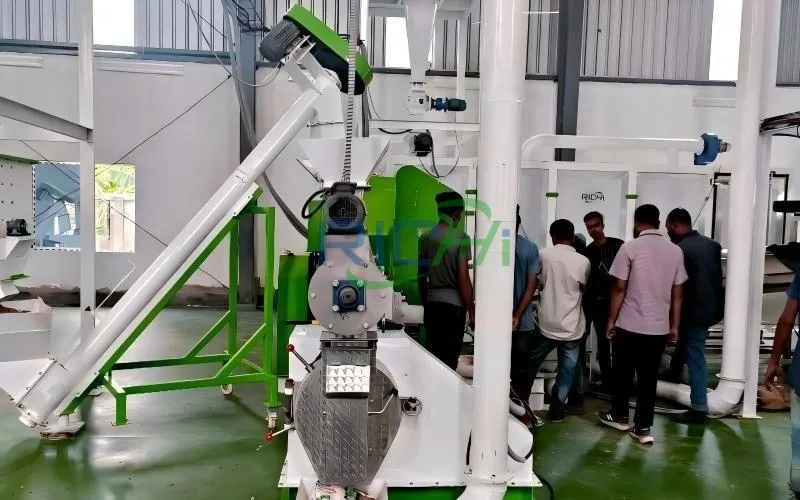

Ukraine 500 kg/H Floating Fish Feed Production Line
The client is a small-scale aquatic feed enterprise. Its core requirement is to achieve stable production of high-quality floating fish feed while controlling investment costs.
The client does not pursue full automation but attaches great importance to the ease of operation and production stability of the equipment. It requires the process to be easy to master, ensure a relatively high yield rate, and minimize losses caused by debugging shutdowns and production waste.
- Main Equipment: hammer mill, mixer, single screw extruder, box-type circumfluent dryer, spraying machine, virating screen, cooler, packaging machine
- Capacity: 500 KG/H
- Raw Materials: Wheat, soybean meal, corn, fish meal, feed additives
- Pellet Size: 3-10 mm
- Guided Price: 30,000 USD
Why Choose RICH?
A Professional and Leading Manufacturer
With an 30-year dedication to the research, development, and production of fish feed processing equipment, RICHI has mastered and innovated core technologies of feed production, resulting in the ownership of multiple top-tier industry patent technologies.
We have left a trail of success worldwide, having successfully served a diverse clientele in over 140 countries and regions worldwide. When you choose RICHI, you are choosing time-tested reliability and deep technical knowledge.
RICHI always prioritizes customer needs and maximizes your benefits. We are committed to providing superior service and creating the most cost-effective fish feed production solution for you, enabling you to embark on your fish feed production venture with ease. We will provide you with:
Customized Design Fish Feed Production Scenarios
We craft fully tailor-made solutions that align perfectly with your unique needs — whether it’s adapting to your specific raw materials (grain, oilseed meals, additives, etc.), matching your production capacity (from 1 T/H small lines to 100 T/H large systems), or staying within your investment budget.
One-Stop Service from Planning to Production
We provides you with a full range of services tailored to fish feed production lines, including factory layout design, equipment installation and commissioning, and operator training. From the initial blueprint planning to guiding your line into full-scale, stable production, ,RICHI offers end-to-end support ensure smooth operation.
Rigorous Quality Assurance Backed by Core Technology
We insist on using high-quality materials to carefully manufacture core equipment components (such as “aerospace-grade ground gears”, “carburized ring dies”, “high-quality alloy steel materials”, “SKF bearings”, and “Siemens motors”), ensuring peak equipment performance and long service life.
Frequently Asked Questions
We’ve compiled some frequently asked questions from our clients regarding the fish feed production line, hoping to provide clarity and assistance. If you don’t find the answer you’re looking for here, please don’t hesitate to get in touch. We value every inquiry and are committed to providing you with clear, professional, and tailored responses.
–
What types of aquatic feed can the fish feed production line you design manufacture?
Our fish feed production line can manufacture various types of aquatic feed, including sinking feed, floating feed, slow-sinking feed, extruded feed, shrimp feed, and starter feed for fry. Meanwhile, we can also add configurations according to customer needs to simultaneously produce poultry feed and livestock feed, meeting customers’ diversified requirements.
–
What are the specific requirements for the types of raw materials?
RICHI fish feed production line can process various raw materials such as protein-based, energy-based, fat-based raw materials and feed additives into feed pellets. We can provide different production line design schemes according to the different characteristics of raw materials.
- Protein-based raw materials
- Animal protein: Fish meal, shrimp shell meal, meat and bone meal, feather meal, insect meal, blood meal, etc.
- Plant protein: Soybean meal, cottonseed meal, rapeseed meal, peanut meal, corn gluten meal, etc.
- Energy-based raw materials
- Cereals and their by-products, such as wheat, corn, sorghum, wheat bran, rice bran, etc.
- Fat-based raw materials
- Fish oil, soybean oil, rapeseed oil, lecithin oil, etc.
- Binders: Starch-based materials
- wheat flour and corn flour; special binders such as sodium alginate and guar gum, etc.
- Additives
- Mineral and vitamin premixes, amino acids, probiotics, antioxidants, attractants, pigments, etc.
–
How much capital is needed to invest in a production line, and what is the payback period?
The investment cost of a fish feed production line depends on factors such as your output requirements, raw material types, equipment configuration, and the degree of production line automation. The price range is roughly between USD 10,000 and USD 300,000. The payback period is generally 1 to 3 years. Please feel free to contact our customer service, and we will provide you with a personalized investment plan and quotation reference.
–
How long does the installation of the entire production line take?
The installation time varies depending on factors such as the scale of your production line, equipment configuration, and workshop conditions. The fastest installation can be completed within approximately 7-15 days, while the longest will be controlled within half a year.
We provide you with the most professional engineering and technical personnel to conduct on-site installation, minimizing the time required for production line installation and commissioning. This ensures the production line is put into operation as soon as possible, helping you save time costs.
–
How do you provide support if equipment in the fish feed production line malfunctions?
We offer comprehensive technical support tailored to the fish feed production line to minimize downtime and ensure continuous operation, including:
- Provide real-time remote guidance for fault diagnosis and troubleshooting via video call or phone call;
- Dispatch engineers to the site for on-site handling when necessary;
- Ensure the fast supply of original equipment parts to minimize production downtime;
- Proactively remind you of regular maintenance to prevent potential issues, ensuring the stable operation of your production.
