Wood Pellet Production Line
RICHI wood pellet production line can transform your wood waste and agricultural waste into high-density, high-calorific-value biomass pellet fuel, bringing you greater economic and environmental value.
RICHI Solution: Turn Wood Waste into Cash

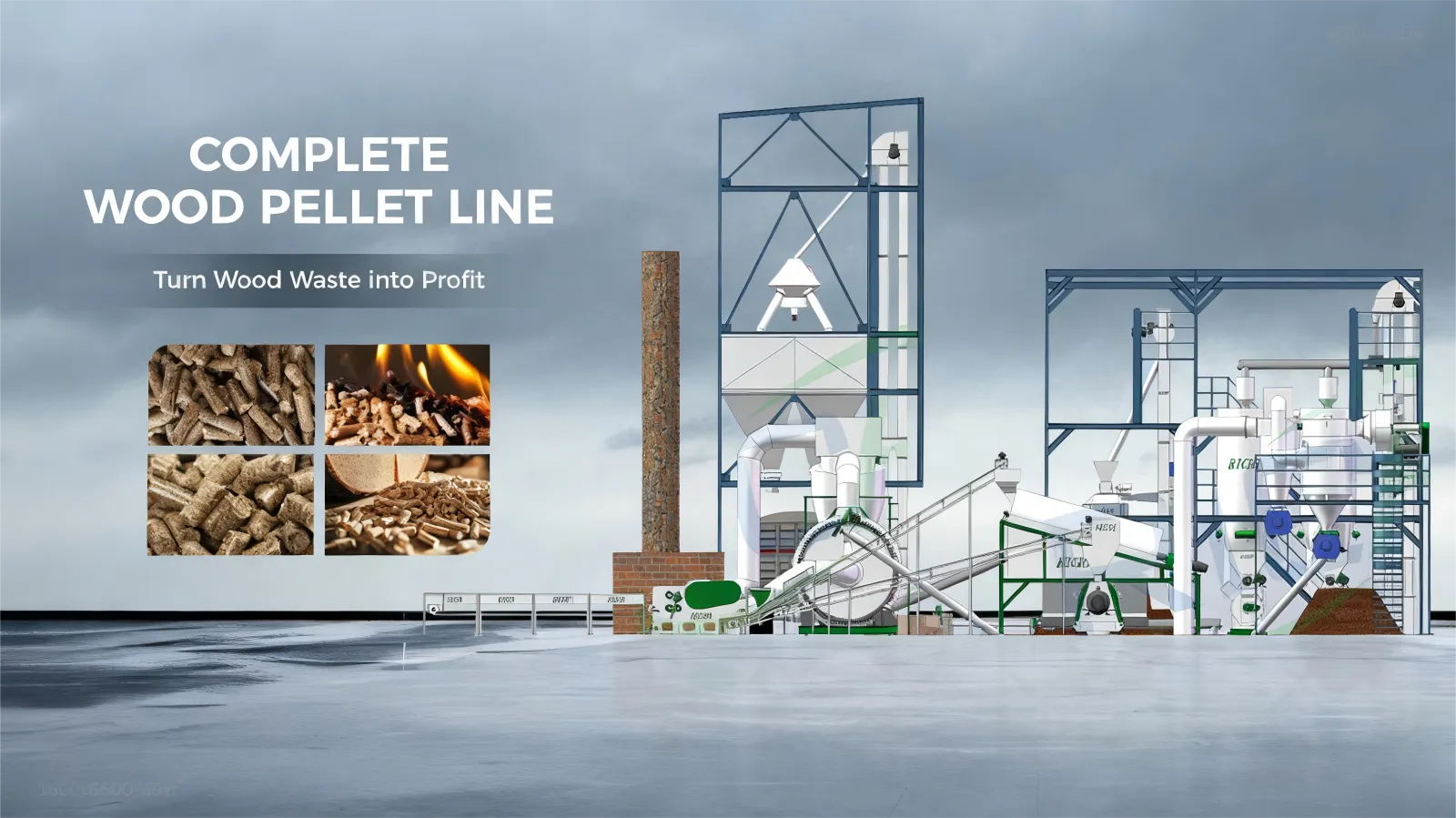

Wood pellet production line is an automated system that converts wood waste and agricultural waste into high-density, high-calorific-value biomass pellet fuel through process flows such as crushing, grinding, drying, pelleting, cooling, and screening. This clean energy can be widely used in fields like industrial heating, residential heating, and power generation, and boasts both economic and environmental value.
Are you troubled by the following challenges: Sawdust and waste wood accumulating in massive piles, leading to high disposal costs and potential safety risks? Global energy shortages and continuously rising prices driving your urgent need for a stable and low-cost heating solution? The desire to comply with environmental policies and enter the green energy market, yet being constrained by a lack of technology and equipment? Existing production equipment suffering from low efficiency, high energy consumption, and unstable quality of finished pellets?
RICHI Machinery provides you with a one-stop wood pellet production line solution to turn burdens into assets. We a professional production and R&D team, masters a number of top-tier technologies in the industry, and can provide you with a complete wood pellet line with a capacity range from 0.3 T/H to 50 T/H. We offer one-stop services including design, manufacturing, installation, and technical support. Get a free solution now!
30 Years Of Rich Experience
For 30 years, RICHI has been focusing on the research, development and production of wood pellet machines, and has obtained a number of top industry patent technologies. Our successful footprint covers more than 140 countries and regions around the world, serving a large number of diversified customers. Choosing RICHI means choosing time-tested reliability and profound technical expertise.
Comprehensive Services
RICHI provides not just a piece of equipment, but a fully integrated end-to-end solution. We offer you a complete range of services, including factory layout design, equipment installation and commissioning, and operator training. From blueprint planning to full-scale production, RICHI provides comprehensive support throughout the entire process, helping you easily launch your wood pellet production business.
24/7 Service System
Our advanced service system is built around your needs, ensuring you receive fast and targeted technical responses whenever issues arise. Whether you contact us via our dedicated hotline, online support platform, or on-site service request, our engineering team will quickly analyze your problems, minimizing your downtime and ensuring the continuous, stable, and profitable operation of your production.
Application of Wood Pellet Production Line
RICHI Machinery is a professional biomass equipment manufacturer with 30 years of industry experience. Leveraging our top-tier technological capabilities, we provide customers with comprehensive solutions ranging from a single machine to a complete wood pellet production line.
Our wood pellet production line can efficiently process a variety of raw materials, including wood chips, sawdust, crop straws, and other biomass waste—ensuring formula flexibility. It is designed to meet the diverse fuel and specification requirements of different markets, including heating, power generation, and industrial applications. Covering a production capacity of 0.3-50 T/H, we offer the most suitable customized solutions for both start-ups and large-scale industrial production.
Wooden Waste
Logging Residues
Palm Kernel Shell
Crop Straw
Rice Husk
Bark Debris
Process of Wood Pellet Production Line
A complete wood pellet production line is an integrated system designed to convert raw biomass materials—such as sawdust, wood chips, agricultural straw, and other forestry or agricultural residues—into uniform, high-density wood pellets. This is accomplished through a sequenced process that includes raw material preparation, chipping, crushing, drying, pelletizing, cooling, screening, and packaging.
The primary aim is to transform bulk biomass into a standardized, clean-burning, and commercially viable solid bio-fuel that is easy to handle, transport, and store.
Raw Material Preparation
01
As the first process of the production line, this section is mainly responsible for stripping the bark from logs. For over-sized logs, they need to be split first to make their size suitable for the chipper’s feeding requirements.
Chipping
02
The chipping section cuts wood raw materials into wood chips with a length of less than 3 cm. This step is the primary crushing of raw materials, facilitating the subsequent feeding of crushed materials into the grinder for secondary crushing.
Crushing
03
Feed the pre-treated wood chips into a crusher to grind them into a powdered form. This is a critical prerequisite for successful pelletizing, as the raw material particle size directly affects the pellet formation rate, quality, and the wear rate of the mold. The particle size is typically required to be below 3-5mm.
Drying
04
The drying process aims to control the moisture content of raw materials between 15% and 18%. A hot-blast stove generates hot air, which is delivered to the drying drum by an induced draft fan. When the drying drum rotates, it continuously lifts the materials, ensuring full contact between the materials and hot air to guarantee the drying effect.
Pelletizing
05
The dried raw materials are put into the screw feeder hopper. The hopper is equipped with an anti-bridging device, which continuously stirs the materials to prevent caking.
The head of the pellet mill is equipped with a forced feeder, which can push the materials into the pelletizing chamber by force. After entering the pelletizing chamber, the wood raw materials are extruded and shaped into dense pellets.
Cooling
06
The newly compressed wood pellets are characterized by high temperature, significant moisture content, and soft texture, necessitating a cooling process before storage.
These freshly formed pellets are conveyed into a counter-flow cooler, where moisture is evaporated to reduce the final water content to 10%-12%.
Screening
07
The cooled pellets then proceed to a vibrating screen, which separates the qualified pellets from the fine powder and broken fragments generated during the production process.
The qualified pellets are transferred to the finished product bin, while the fine powder is returned via a conveyor to the pelletizer for reuse in the pelletizing process. Oversized particles or debris are sent back to the crusher for reprocessing.
Packaging
08
The screened finished pellets are automatically weighed to a preset weight, bagged, and sealed using a fully automatic packaging machine. Depending on the type of packaging bag selected by the customer, the sealing method can be either heat sealing or thread sewing.
RICHI Wood Pellet production Line video
The following is a real-shot video of RICHI wood pellet production line. Through the video, you can intuitively understand the appearance of each core equipment in wood pellet production, as well as the connection between equipment and material flow, and quickly learn how wood materials are transformed into high-value-added environmentally friendly pellet fuel.
RICHI Wood Pellet Production Line flowchart
RICHI can design a customized wood pellet production line for you based on your specific needs, including raw material type, production scale, and investment budget. Whether you need to produce standard industrial pellets or premium-grade fuel pellets, for hardwood or softwood raw materials, we can provide you with an optimal production line plan. Below are flowcharts of wood pellet line with different output capacities for your reference.

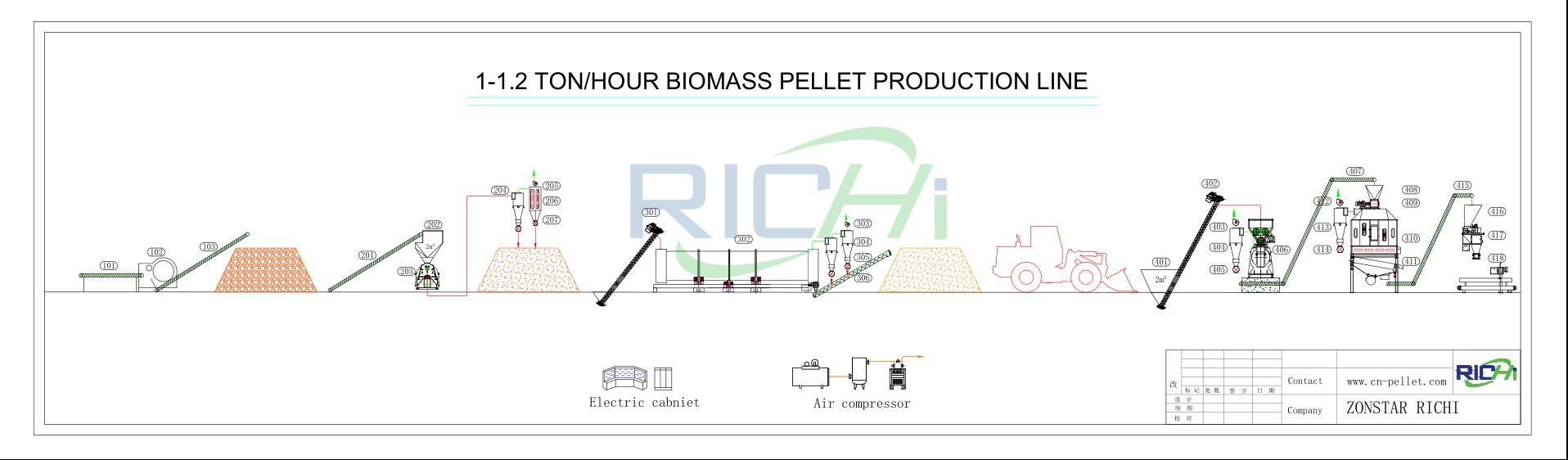

1-1.2 t/H Wood pellet production line
Process flow: Coarse chipping system – Fine crushing system – Drying system – Pelleting system – Cooling & Screening system – Packaging system
Main equipment used: chipper, cyclone, pulse dust machine, drop type hammer mill, royal drum dryer, wood pellet mill, cooler, packaging machine, screw conveyor, storage silo

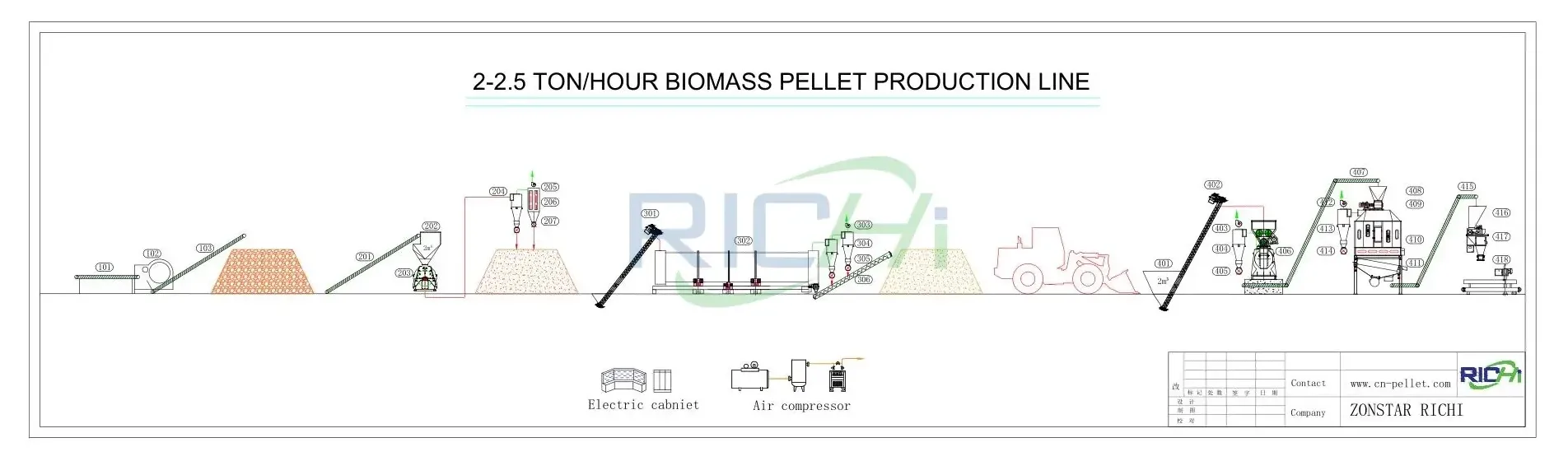

2-2.5 t/H low-equipped Wood pellet production line
Process flow: Coarse chipping system – Fine crushing system – Drying system – Pelleting system – Cooling & Screening system – Packaging system
Main equipment used: crusher, mixer, single screw extruder, oven, screening equipment, cooling machine, packaging equipment

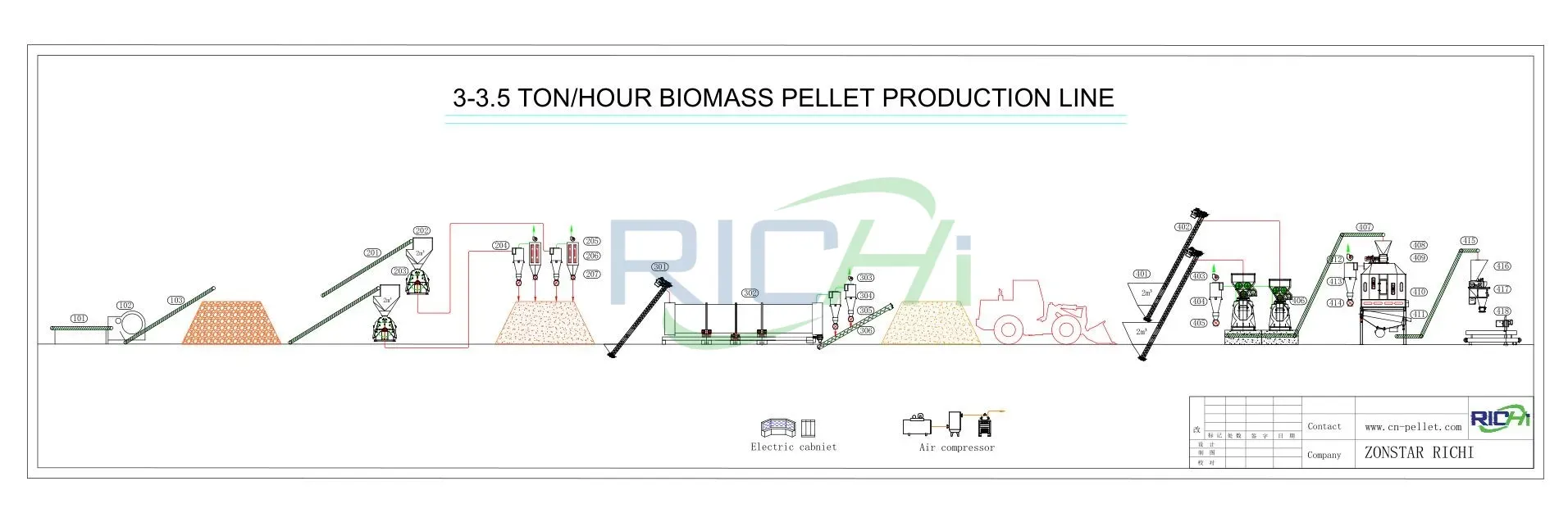

3-3.5 t/H low-equipped Wood pellet production line
Process flow: Coarse chipping system – Fine crushing system – Drying system – Pelleting system – Cooling & Screening system – Packaging system
Main equipment used: crusher, mixer, single screw extruder, oven, screening equipment, cooling machine, packaging equipment
4-5 t/H low-equipped Wood pellet production line
Process flow: Coarse chipping system – Fine crushing system – Drying system – Pelleting system – Cooling & Screening system – Packaging system
Main equipment used: crusher, mixer, single screw extruder, oven, screening equipment, cooling machine, packaging equipment

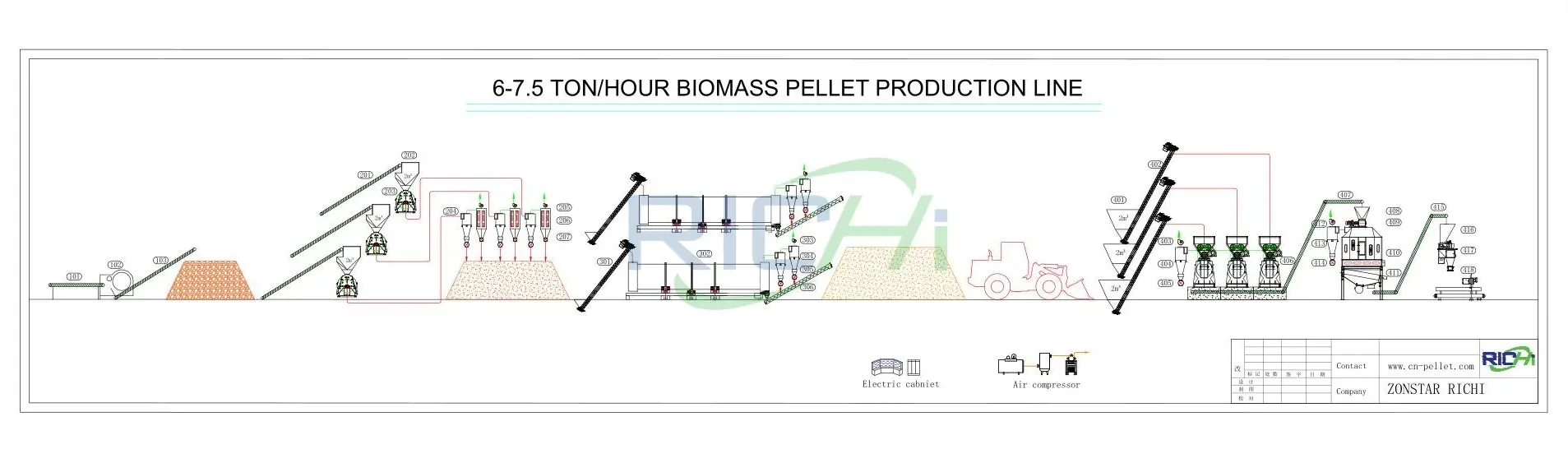

6-7.5 t/H low-equipped Wood pellet production line
Process flow: Coarse chipping system – Fine crushing system – Drying system – Pelleting system – Cooling & Screening system – Packaging system
Main equipment used: crusher, mixer, single screw extruder, oven, screening equipment, cooling machine, packaging equipment

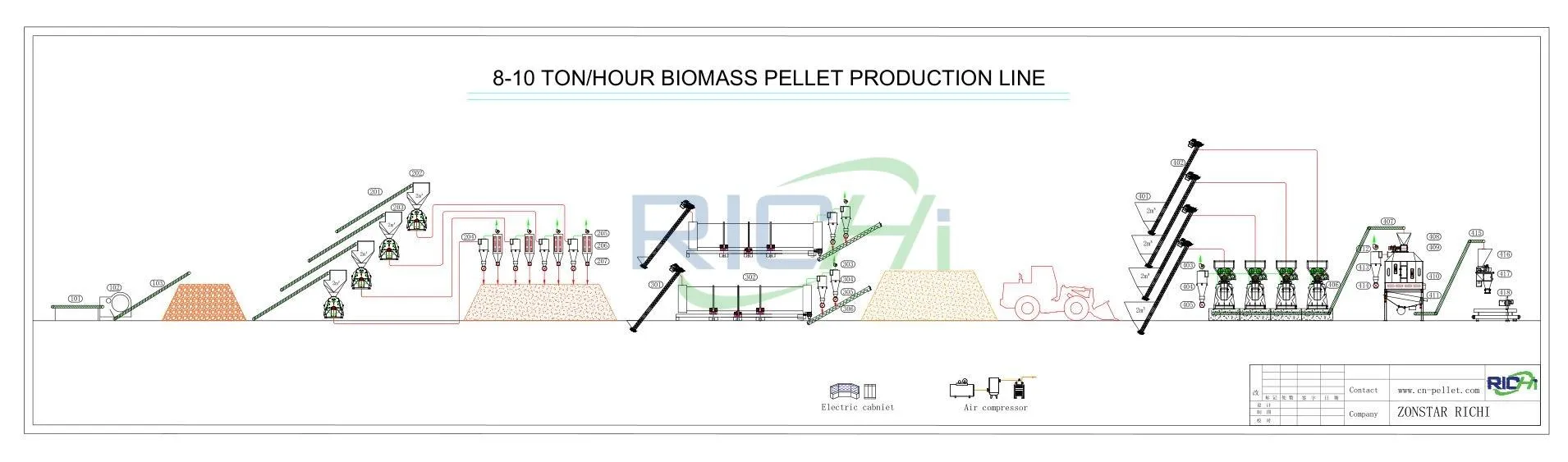

8-10 t/H low-equipped Wood pellet production line
Process flow: Coarse chipping system – Fine crushing system – Drying system – Pelleting system – Cooling & Screening system – Packaging system
Main equipment used: crusher, mixer, single screw extruder, oven, screening equipment, cooling machine, packaging equipment
Global Cases of rICHI Wood Pellet Production Line
We can design feed pellet lines of various production capacity, the following is the flow chart and video of large output feed production line that we can design for your reference. It is a 8-12t/h animal feed production line, if you have any pelletizing requirements, welcome to contact us to provide you with pelletizing solutions.

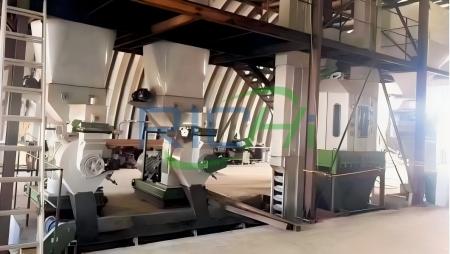

Canada 2-3 T/H Wood Pellet Production Line
The customer requires the production line to have a stable output capacity of 2-3 tons per hour and achieve a high degree of automation to minimize manual intervention and reduce long-term operating costs. The customer’s raw materials are mainly wood chips and sawdust with a moisture content of 50%, which requires the production line to have efficient drying capacity.
The diameter of the final biomass pellets is strictly controlled between 6-12mm to ensure the combustion efficiency of the pellets. The customer’s production workshop is small, so we need to customize the design of the production line to meet the production needs of the workshop.
- Capacity: 2-3 T/H
- Pellet Size: 6-12mm
- Factory Size: 26m × 20m × 12m (L × W × H)
- Installation Period: 60 days
- Guided Price: FOB price starts at 200,000 USD

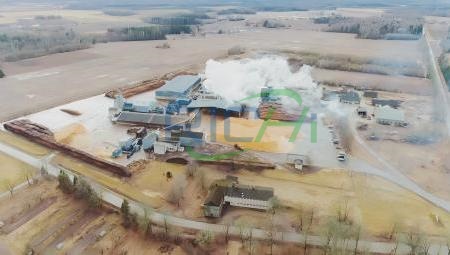

Mexico 10 T/H Wood Pellet Production Line
RICHI successfully planned and built a large-scale industrial wood pellet production base for a Mexican customer. RICHI undertook the entire production line construction, including design, construction, installation and commissioning, and equipped it with more than ten types of equipment such as hammer mills, drum dryers, wood pellet mills, and coolers.
Relying on the abundant local wood processing residues (wood chips, wood waste) resources, the customer aims to build a benchmark factory with advanced technology and remarkable production capacity to meet the local demand for biomass fuel pellets.
- Capacity:10 T/H
- Pellet Size: 8mm
- Factory Size: 29m × 24m × 21m (L × W × H)
- Installation Period: 60 days
- Guided Price: FOB price starts at 700,000 USD

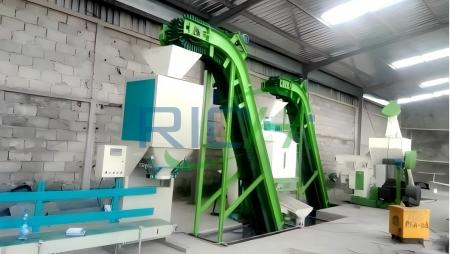

Congo 1-2 T/H Wood Pellet Production Line
Aiming to maximize the value of abundant wood waste resources, the client plans to establish a standardized wood pellet production line to convert timber, waste logs, sawdust, wood chips, and furniture scrap into 6mm wood pellets, enabling efficient resource utilization and commercial output.
Based on the client’s requirements, we have designed a standard 1-2 ton/hour wood pellet production line. This integrated line covers key processes such as wood crushing, grinding, drying, pelletizing, cooling, and packaging, with all equipment tailored to both the characteristics of the local raw materials and the production conditions in the Congo.
- Capacity:1-2 T/H
- Pellet Size: 8mm
- Installation Period: 30 days
- Guided Price: FOB price starts at 180,000 USD
Key Equipment of Wood Pellet Production Line
With over three decades of expertise, RICHI Machinery delivers integrated wood pellet line solutions for the wood pellet industry. We specialize in supplying complete, turnkey production line, with core equipment encompassing size reduction, drying, mixing, ring die pelletizing, cooling, and automated weighing & packaging—all engineered for maximum reliability and return on investment.
Debarking Machine
The debarking machine is mainly used to remove bark from logs. In the wood pellet production line, the log debarking machine is located in the front-end raw material pretreatment section.
Its working principle primarily involves creating intense friction and collision between logs and the machine, or between logs themselves, thereby stripping bark from the logs. Debarked logs can be sent to the wood chipper for chipping.
Wood Chipper
The chipper is a key pre-processing equipment in wood pellet production lines, primarily used for the coarse crushing of logs and wood waste.
It processes large-sized logs, logging residues (branches, twigs), and processing residues (slats, slabs) into uniform wood chips approximately 3 cm in thickness and diameter, providing standardized raw material for subsequent grinding processes.
Drop Type Hammer Mill
Our hammer mill is specifically designed for efficiently grinding various types of wood-based raw materials, offering superior quality. Its hammers are made from 45# steel, while the hammer tips utilize tungsten carbide material, providing exceptional wear resistance.
With an extra-wide grinding working surface and optimally arranged hammers, its crushing performance reaches new heights.
Rotary Drum Dryer
The dryer is designed to reduce the moisture content of materials to a stable range of 15%–18%, meeting the requirements for pellet formation. A fully pneumatic conveying system is used to discharge the material, enabling precise moisture control. Only materials meeting the required moisture standards are transported out by the airflow.
The dryer is accompanied by a control cabinet that allows real-time monitoring of temperature and drum rotation speed, ensuring simple and reliable operation.
Wood Pellet Mill
RICHI wood pellet mill is specifically engineered to compress various raw materials into high-density wood pellets. It integrates key components including an anti-bridging feed hopper, forced feeder, pelletizing chamber, cutting device, and fully automated control and lubrication systems.
Powered by a high-torque Siemens motor, the wood pellet mill ensures thorough material compression. Critical components such as the ring die, gears, and main shaft are made of 42CrMo material treated with carburizing heat treatment, providing exceptional wear resistance.
Counter-flow Cooler
The cooler adopts the counter-flow cooling principle. Cold air is drawn in from the bottom of the cooler and passes through the hot pellets from top to bottom, forming reverse heat exchange. This method prevents the pellets from cracking due to rapid cooling.
A top-mounted distributor ensures an even bed depth for uniform cooling. The unique octagonal cooling chamber, combined with a swing-type discharge device, not only enables complete residue-free discharge of materials but also achieves efficient and uniform cooling results.
Vibrating Screening
The vibrating screen is usually installed below the cooler, equipped with three layers of screens to separate finished pellets, powder, and large-sized particles. The separated powder and large-sized particles are recycled for secondary processing.
It adopts a self-balancing vibration method, featuring good screening effect, small volume, and stable operation. The internal streamlined design of the discharge port prevents material deposition and avoids cross-contamination.
Automatic Packing machine
The automatic packing machine consists of a feeding unit, a weighing hopper, a buffer device, and a bagging component. It is equipped with high-precision sensors and an intelligent control system.
It can automatically receive the finished pellets after cooling and screening, and perform accurate metering according to the preset rated weight with an error of ±0.2%. The sealing device can adopt heat-sealing or sewing methods according to the type of packaging bag selected by the customer.
Pulse Dust Collector
The pulse dust removal system serves as vital equipment to ensure safe operation and compliance with environmental standards.
The RICHI pulse dust collector can be equipped with 48 filter bags, achieving a dust removal efficiency of ≥99.5%, effectively capturing fine dust particles. It employs pulse-jet cleaning technology with a cleaning pressure range of 0.5–0.7 MPa, ensuring thorough cleaning without damaging the filter bags.
Core Competitiveness of RICHI Wood Pellet Production Line
With three decades of dedicated expertise and a proven track record in the global market, RICHI Machinery has forged a comprehensive competitive edge that sets us apart. We go beyond supplying equipment to deliver stable, efficient, and value-maximizing holistic solutions for wood pellet production.
High-Efficiency Production System
With the core goal of reducing energy consumption, we have carried out precise matching and optimization of the entire production line’s power system.
Energy-saving equipment is selected for the entire production line to reduce basic energy consumption at the source.
Meanwhile, the equipment linkage logic is scientifically designed, the process connection flow is optimized, and invalid consumption in material transfer links is reduced. The comprehensive energy consumption of the whole line can be reduced by approximately 15%.
Superior Wood Pellet Quality
RICHI wood pellet production line utilizes a unique “High-Power Crusher + Ring Die Pellet Mill” core combination.
The crusher—optimized for wood chips—produces uniform fine powder from various wooden materials, providing an ideal base for pelleting.
The specialized pellet mill ensures a stable molding rate above 95% through precise compression. This not only reduces powder reflux and raw material waste but also guarantees tight structure and standardized density for every wood pellet, significantly enhancing the combustion efficiency of the pellets.
Extended Equipment Service Life
All core wear parts in direct contact with materials, such as stirring blades, rollers, and ring dies, are made of high-quality alloy steel and processed through special techniques like deep carburizing and quenching.
This endows the parts with extremely high wear resistance, extending their service life by more than 30%.
Besides, It significantly reduces downtime and maintenance costs caused by part replacement, thereby ensuring the continuity of your production and prolonging the investment lifecycle of the entire production line.
Comprehensive Eco-Friendly Design
Adhering to the concept of “cleaner production”, we have scientifically installed high-efficiency pulse dust removal systems at key dust-emitting points of the entire production line (such as feeding ports, crushers, screening machines, etc.).
Fine particles and powder are recovered by the cyclone separator, preventing the waste of finished and semi-finished products.
The use of membrane-coated filter bags ensures a dust removal efficiency of over 99.5%, making the dust emission concentration at the workplace far lower than international environmental protection standards and creating a healthy and comfortable working environment for employees.
Intelligent Control System
Our wood pellet production line is equipped with a PLC based central control system, empowering operators to manage “one-touch start/stop” operations and monitor the entire process seamlessly from the control room. It continuously tracks critical operational parameters in real-time.
In case of equipment abnormalities, the system automatically triggers alarms and displays the fault location on the screen.
This helps prevent minor issues from escalating into major equipment damage, alleviates the reliance and potential for error in manual checks, and fundamentally safeguards secure, stable, and highly efficient production.
Deeply Customized Solutions
We specialize in tailored, turnkey solutions—from initial needs assessment to operational startup—designed to address the unique production challenges of each client.
Our application scenarios are extensive, including both the recycling of waste wood from wood processing plants and the large-scale production needs of commercial wood chip pellet manufacturers.
We provide comprehensive customization through every phase, including process engineering, equipment specification, plant layout, and installation.
Every solution is seamlessly tailored to your specific raw materials, target products, and physical site constraints, ensuring your investment delivers maximum efficiency and profitability.
Frequently Asked Questions
Thank you for your interest in RICHI wood pellet production line! We have compiled a list of frequently asked questions to help you quickly find answers. If you would like more detailed information about production capacity, pricing, or customized solutions, please feel free to contact us. We look forward to collaborating with you to turn wood waste into high-value biomass fuel, bringing you greater economic and environmental value!
–
What are the specific requirements for raw material type and moisture content?
RICHI wood pellet production line can process a wide range of biomass raw materials, including agricultural waste (e.g., straw, wheat husks, rice husks, peanut shells, corn cobs) and wood waste (e.g., branches, boards, wood strips, sawdust, wood shavings, used furniture), regardless of material type or moisture level. We provide customized production line designs tailored to the characteristics of your raw materials.
–
How much investment is required for a wood pellet production line, and what is the payback period?
A wood pellet production line price depends on your production capacity, raw material type, equipment configuration, and automation level, with prices generally ranging from $20,000 to $300,000 USD. The typical payback period is 1–3 years. Contact our team for a personalized investment plan and detailed quotation.
| Production Scale | Installation Period | Cost（USD） | Profit Cycle |
| 0.2-0.3T/H | 7-15 Days | 20,000-130,000 | 1-3 years |
| 0.3-0.5 T/H | 7-15 Days | 26,000- 150,000 | |
| 1.0-1.2T/H | 15-20 Days | 38,000-220,000 | |
| 1.5-2.0T/H | 15-20 Days | 55,000-280,000 | |
| 2.5-3.0T/H | 15-30 Days | 75,000-350,000 | |
| 3.0-4.0T/H | 20-30 Days | 90,000-430,000 | |
| 5.0-6.0T/H | 20-40 Days | 140,000-560,000 | |
| 6.0-8.0T/H | 30-60 Days | 180,000-700,000 | |
| 10-12T/H | 30-60 Days | 280,000-1,000,000 | |
| 12-15T/H | 30-60 Days | 450,000-1,430,000 | |
| 20-30T/H | 40-60 Days | 500,000-2,000,000 | |
| 30-40T/H | 50-90 Days | 530,000-2,200,000 | |
| 40-50T/H | 60-90 Days | 680,000-3,000,000 |
–
How long does it take to install a complete wood pellet production line?
The installation period varies based on the scale of the production line, equipment complexity, and workshop conditions. Installation can be completed in as little as 7–15 days for standard setups, or up to 60–90 days for larger customized lines. Our professional engineers will conduct on-site installation and commissioning to minimize downtime and ensure rapid operational readiness.
–
How are the installation and commissioning of the wood pellet line arranged?
We provide turnkey project services,offering comprehensive support from production line design and installation to commissioning and operator training.
- Installation & Commissioning:
- After the contract is signed, we will provide detailed equipment foundation drawings and plant layout diagrams. Upon shipment of the equipment, 1-2 of our experienced engineers will be dispatched to your site to guide the installation process and be responsible for the no-load and load commissioning of the entire line until it stably produces qualified products.
- Operator Training
- During the commissioning phase, our engineers will provide hands-on training for your operation and maintenance personnel. This covers the process flow, equipment operation, routine maintenance, and troubleshooting of common issues. Detailed operation manuals will also be provided to ensure your team can operate the line independently.
–
How do you provide support if equipment malfunctions?
We offer comprehensive technical support, including the following:
- Provide real-time remote guidance for fault diagnosis and troubleshooting via video call or phone call;
- Dispatch engineers to the site for on-site handling when necessary;
- Ensure the fast supply of original equipment parts to minimize production downtime;
- Proactively remind you of regular maintenance to prevent potential issues, ensuring the stable operation of your production.
–
What are your warranty terms and how are replacement parts handled for the wood pellet production line?
We provide a one-year warranty for all equipment on our wood pellet production line. Genuine spare parts (such as press rollers, cutters, and ring dies) are supplied directly from the factory at prices 15%-20% lower than similar products on the market, enabling customers to perform replacements independently and reduce maintenance costs.
RICHI provides lifelong free technical support to all customers. Should you have any requirements, our customer service team is available 24/7 to provide prompt assistance and answers to your inquiries.
