Chicken Feed Pellet Making Machine
apply
As a core equipment in modern poultry farming, RICHI chicken animal feed pellet making machine is designed to meet the diverse nutritional needs of chickens at different growth stages and production purposes.
Broiler Chicken Feed Pellets
Layer Chicken Feed Pellets
Stater Chicken feed pellets
Special Chicken Feed Pellets
RICHI Chicken Feed Pellet Making Machine: Precision-engineered with premium core parts
RICHI chicken feed pellet making machine is engineered with high-precision core components, which work synergistically to ensure stable pelletizing performance, uniform feed quality, and long-term operational durability.
These components work synergistically to ensure exceptional performance in production capacity, energy consumption control, and finished product quality.
What’s more, the entire chicken feed pellet mill is certified by internationally recognized authorities including CE, SGS and ISO, underscoring its compliance with global quality and safety standards for feed processing equipment.
01

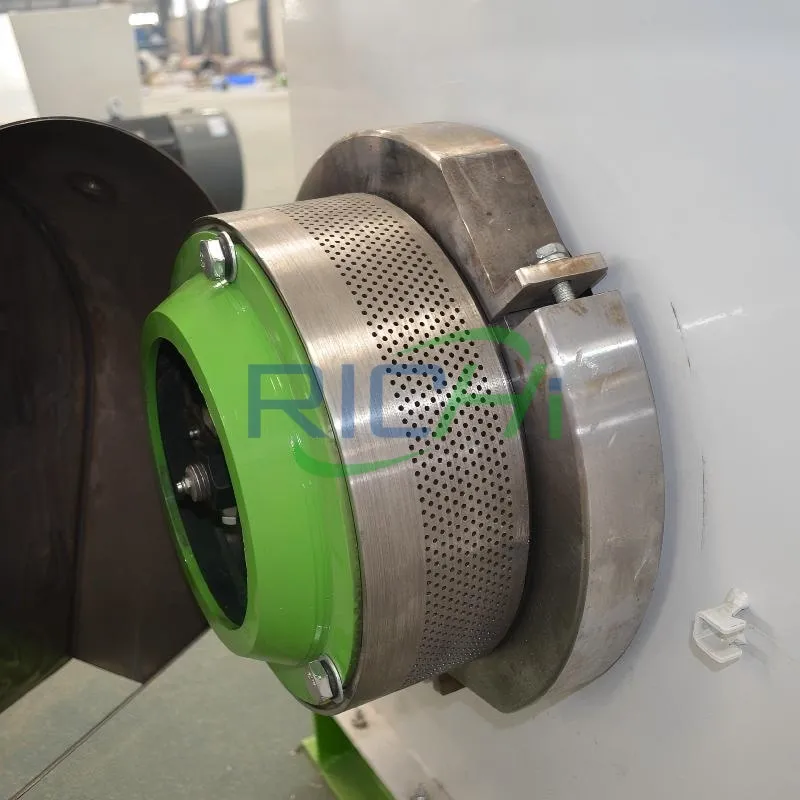

Ring Die
Made of 42 CrMo wear-resistant alloy steel to resist abrasion from hard raw materials, extending service life by 30–50% compared to ordinary dies.
Die hole diameters range from φ1.5 to φ12 (2–4 mm for starter chicks, 3–5 mm for layers/broilers) to match the feeding habits of different chicken groups.
02

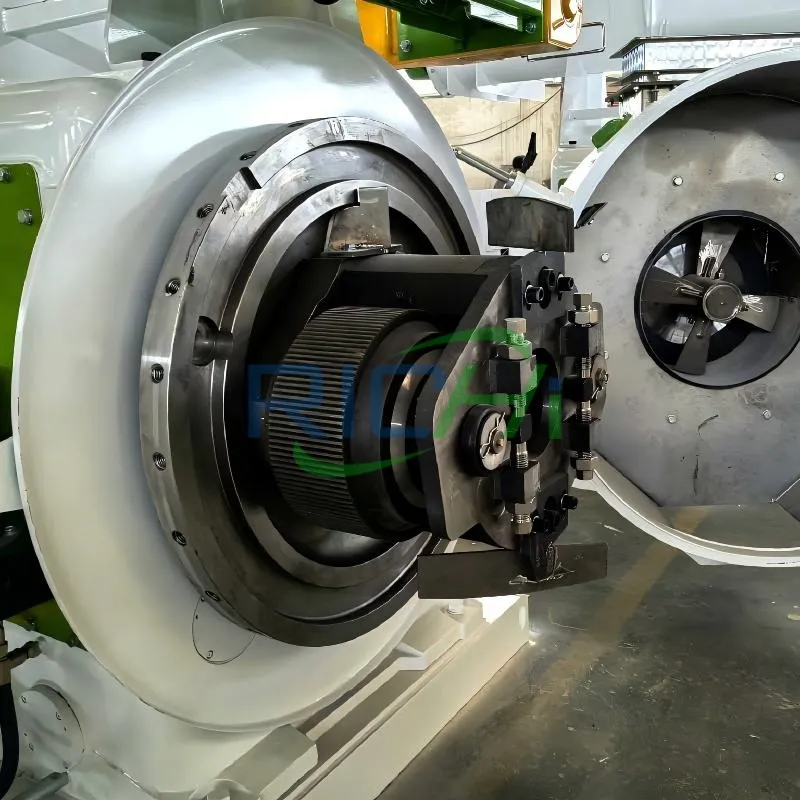

Press Roller
Processed via CNC laser cutting for uniform fit between press roller and ring die.
Wear-resistant alloy steel resists long-term abrasion from corn, soybean meal and other raw materials.
Customizable—roller parameters adjusted for varied chicken feed formulas to suit diverse production scenarios.
03

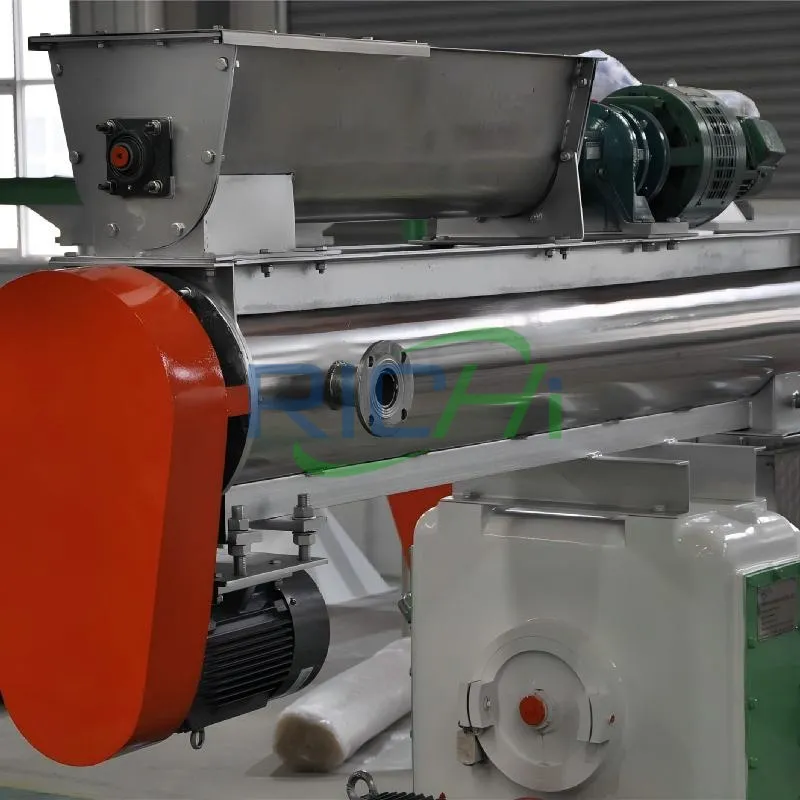

Feed Auger
The auger speed can be regulated via a frequency converter to match different production capacities (1–40 TPH) and adapt to various feed formulas (e.g., high-fiber organic chicken feed requires slower feeding to ensure full extrusion).
It prevents material accumulation or insufficient feeding, which would lead to low production efficiency or hollow pellets.
04

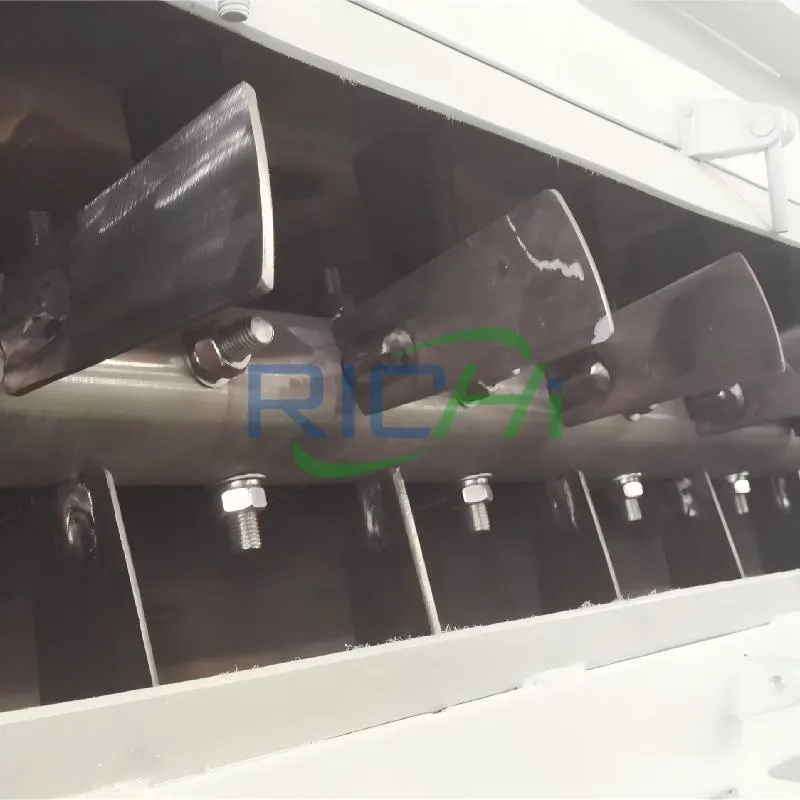

Conditioner
Equipped with a multi-layer paddle structure to ensure full contact between raw materials and steam, avoiding localized overheating or under-conditioning that would affect pellet quality.
05

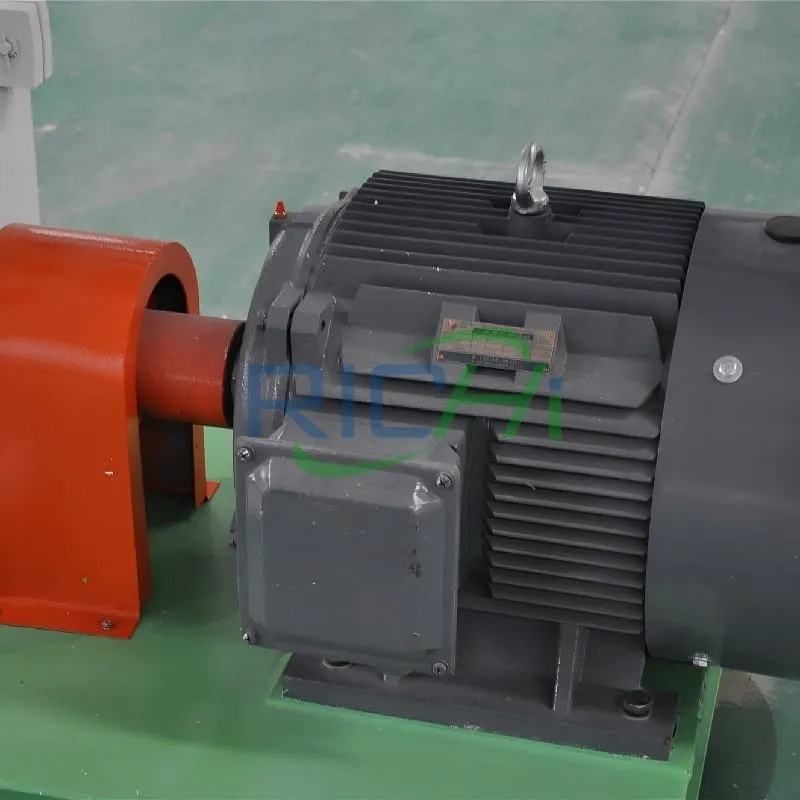

Main Motor
Adopts high-efficiency variable-frequency motor, with power ranging from 22 kW (small household machines) to 315 kW (industrial production lines).
It offers energy-saving operation, reducing power consumption by 15–20%.
06
Cutting Knife Assembly
The knife distance from the die surface can be fine-tuned to adapt to different production speeds and pellet hardness requirements.
The cutting blades are made of wear-resistant alloy material and undergo special surface treatment, ensuring long-lasting durability.
How the Chicken Feed Pellet Making Machine Works
A chicken feed pellet making machine compresses mixed powdered feed into pellets via mechanical force. Its core goals: boost feed nutrition, enhance palatability, ease storage/transport, cut feeding waste, and eliminate pathogens through instant high-temperature, high-pressure processing.
Here’s how the chicken feed pellet machine works.
First, load the powdered feed raw materials into the feed hopper. Equipped with a variable-frequency speed regulator, the hopper continuously and uniformly conveys the powder to the conditioner based on preset output volumes and the load conditions of the downstream conditioner and main motor.
Secondly, inside the conditioner, the powder mixes fully with injected steam and water. Agitating paddles propel the material forward, extending its residence time in the conditioner. This conditioning process achieves gelatinization, maturation, and sterilization of the feed material, which boosts pellet formation rate and safety, as well as improves feed palatability and digestibility.
Thirdly, the conditioned material enters the pelleting chamber. Forced through ring die holes by the strong squeeze of the ring die and press rollers, it forms dense cylinders. By replacing the ring die with alternatives of different hole diameters, pellets of varying sizes can be produced to meet the feeding requirements of chickens at different growth stages.
Finally, continuous cylinders exiting the die are cut into set lengths by high-speed rotating knives once exposed. The pellet length can be precisely controlled by adjusting the distance between the knives and the ring die surface.
Freshly formed chicken feed pellets are high in temperature and moisture content, with a soft texture, making them unfit for direct storage. They must be cooled down to room temperature in a pellet cooler.
After cooling, the pellets pass through a grading screen to remove fine powder and oversized pellets. Qualified finished pellets are transferred to the product bin, while the collected powder and off-spec pellets are recycled for reprocessing.

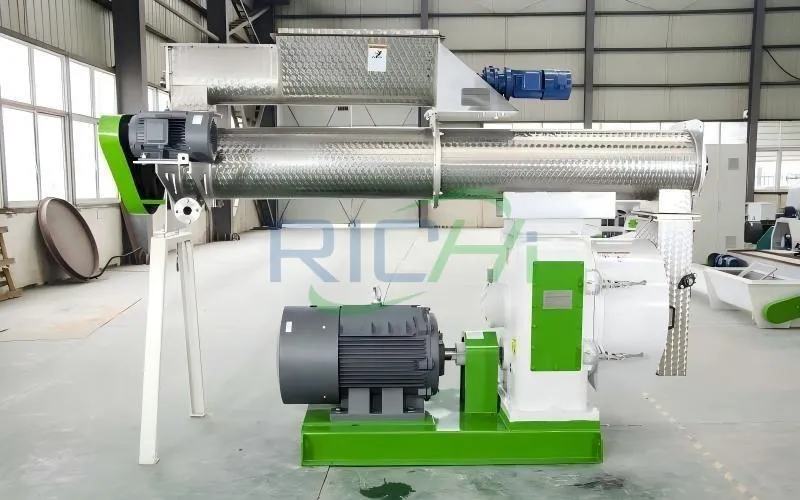

Technical Specifications of RICHI Chicken Feed Pellet Making Machine
| Model | SZLH-250 | SZLH-320 | SZLH-350 | SZLH-420 | SZLH-508 | SZLH-558 | SZLH-678 | SZLH-768 |
| Capacity（T/H） | 1.0-1.5 | 3-4 | 5-6 | 10-12 | 15-16 | 20-22 | 30-33 | 38-40 |
| Main Motor Power(kW) | 22 | 37 | 55 | 110 | 160 | 185 | 250 | 315 |
| Feeder Power(kW) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Conditioner Power(kW) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 | 11 | 11 |
| Ring Die Diameter（mm） | 250 | 320 | 350 | 420 | 508 | 558 | 673 | 762 |
| Pellet Diameter(mm) | 2~12 | |||||||
As a leading global manufacturer of feed machinery, RICHI offers a full range of chicken feed pellet machines with single-unit capacities ranging from 1 to 40 T/H, flexibly matching diverse production needs and investment budgets. We can also provide customized services based on your specific requirements.
RICHI Chicken Feed Pellet Making Machine Testing Video
Through the following real-world test videos, you can intuitively experience the exceptional quality and sophisticated pelletizing technology of RICHI chicken feed pellet making machine.
RICHI Chicken Feed Pellet Making Machine
Global Customer Cases
Backed by 30 years of profound R&D and manufacturing expertise in pellet mill equipment and industry-leading technologies, RICHI Machinery has successfully exported our chicken feed pellet making machines to over 140 countries and regions worldwide, with a strong presence across Asia, Europe, Africa, North America, and South America. RICHI chicken feed pellet machine has empowered clients to achieve unprecedented leaps in their feed pellet production operations.

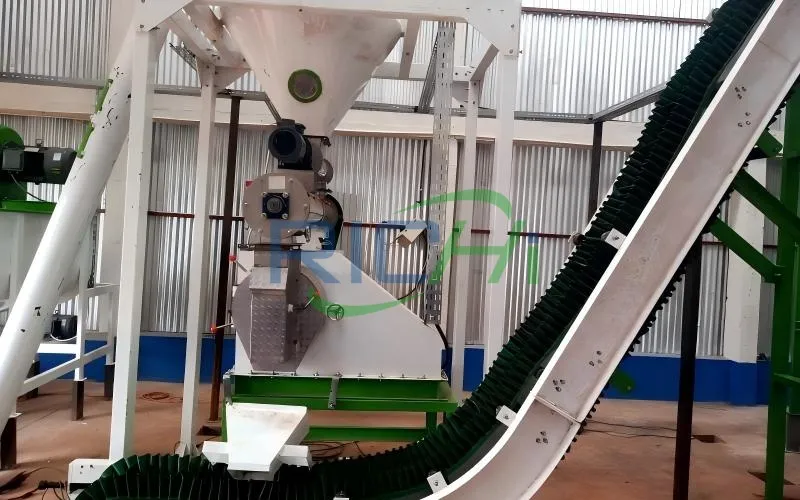

Chicken Feed Pellet Making Machine In Uzbekistan
In July 2025, we successfully delivered a poultry feed production line with a 1-2 T/H chicken feed pellet making machine as a core equipment to a Uzbekistan’s client.
Using this chicken feed pellet machine, our client can produce feed pellets of different size for chicken at the different growth stage ( from the chick stage to the egg-laying stage).
- Capacity: 1-2 tons per hour
- Chicken Feed Pellet Machine Model: SZLH-250
- Main Motor Power:22kW
- Pellet Diammer: 1-2mm chick feed pellets and 3mm,4mm broiler & layer chicken feed pellets

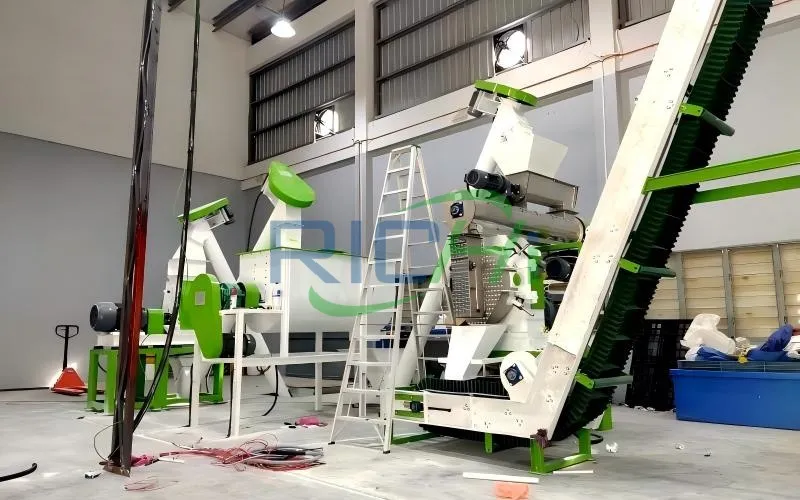

Chicken Feed Pellet Machine In Colombia
As the third largest poultry producer in Latin America, Colombia’s poultry market maintains an annual growth rate of 5%. Our client purchased our chicken feed pellet machine to capitalize on this industry expansion.
Our machines can flexibly produce feed pellets ranging from 2 to 12 mm, allowing customers to precisely meet the nutritional needs of different poultry types, thereby enhancing their product’s market competitiveness.
- Capacity: 3-4 tons per hour
- Chicken Feed Pellet Machine Model: SZLH-320
- Main Motor Power:37kW
- Pellet Diammer: 1-2mm chick feed pellets and 3mm,4mm,6mm broiler & layer chicken feed pellets

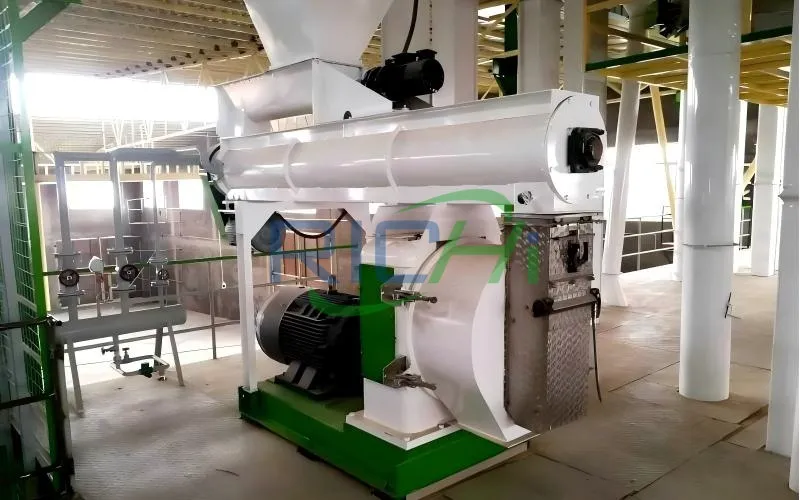

Chicken Feed Pellet Mill In Afghanistan
This Afghan client sought to capture the local poultry feed market by constructing a large-scale feed mill, which processes low-cost local raw materials (corn, wheat, soybean meal) into premium feed pellets.
To this end, we delivered a 10T/H chicken feed production line centered on the SZLH-508 chicken feed pellet mill
This equipment can flexibly produce pellets of various sizes from 2-6mm, meeting the refined nutritional needs of broilers and laying hens at different growth stages.
- Capacity: 10 tons per hour
- Chicken Feed Pellet Machine Model: SZLH-508
- Main Motor Power:160kW
- Pellet Diammer: 2-6mm chick feed pellets (for breeding chickens, laying hens, and broiler chickens）
Benefits Of Using A Chicken Feed Pellet Making Machine To Produce Pelleted Feed
The chicken feed pellet making machine uses a heat treatment process to compress powdered materials into pelleted feed, achieving multi-dimensional improvements in nutrient utilization, economic efficiency, animal health, and management efficiency. Especially for large-scale farms, the overall benefits are significantly better than those of powdered feed.
Why Choose RICHI Chicken Feed Pellet Making Machine
Whether you’re a small-scale poultry farm or a large feed production enterprise, RICHI chicken feed pellet making machine provides a one-stop solution for multi-type chicken pellet feed production, empowering your business with professional equipment and technical support to thrive in the global market.
Versatility
One chicken feed pellet machine adapts to multiple feed formulas and particle sizes, supporting the production of starter, grower, layer, broiler, and specialty feeds.
Efficiency & Quality
Advanced pelleting technology ensures high production capacity (1-40 TPH) and stable pellet quality, with low moisture content (<12%) for long-term storage.
Cost-Effectiveness
Reduces raw material waste (by 10-15% compared to powder feed) and improves feed conversion rate, maximizing farmers’ profit margins.
Global Adaptability
Complies with international feed safety standards (ISO, CE) and can be customized for target markets (e.g., EU organic regulations, US FDA requirements).
Frequently Asked Questions
Below is a compilation of frequently asked questions from customers regarding the purchase of our chicken feed pellet making machine, covering aspects such as equipment performance, technical specifications, investment costs, local adaptation, after-sales service, and technical support. If you have any questions, please feel free to contact us.
–
What is the standard production capacity of your chicken feed pellet making machine (T/H)? Is the production capacity adjustable?
RICHI chicken feed pellet making machine offers a wide capacity range of 1–40 T/H, with the specific standard output depending on the selected model (e.g., SZLH420/508/678, etc.). All models are equipped with variable-frequency feeders and conditioners, allowing for infinitely adjustable production capacity by regulating feed speed, steam addition, and die rotation speed to match different production plans.
–
How adaptable are RICHI chicken feed pellet mill to different feed formulations? How easy is it to adjust the machine when changing formulations? (For example: high-fiber poultry feed, high-protein broiler feed)
Our chicken feed pellet mill performs excellently with common formulas such as high-fiber poultry feed and high-protein broiler feed:
- Automation Core: Key process parameters like batching, mixing, and pelleting are automatically controlled by PLC/computer, ensuring formula accuracy and process stability.
- Manpower Requirement: A medium-sized line (10-15 tons per hour) typically requires only 2-3 operators for control room monitoring and necessary patrols, significantly reducing reliance on skilled labor and labor costs.
- Advanced Options: We can provide intelligent solutions including manufacturing execution system, production data traceability, and remote fault diagnosis.
When switching formulas, adjustments to die compression ratio, cutter position, and conditioning parameters are typically required. Trained operators can complete these changes quickly.
–
What materials are the ring die and pressure rollers made of?
Ring die and press roller assembly of RICHI chicken feed pellet machine are made from high-chromium alloy steel (42CrMo) and undergo carburizing, quenching, and precision grinding. This results in wear resistance that is more than 50% higher than that of ordinary materials.
–
What is the total installed power of the entire chicken feed pellet maker? What is the approximate range of electricity consumption per unit of production (kWh/ton)?
Installed power ranges from 22 kW to 315 kW, depending on the model. For standard corn-soybean meal formulas, specific energy consumption is approximately 8–15 kWh/ton, varying with formula characteristics, die aperture, and operating parameters. The following is a parameter table for RICHI chicken feed pellet maker for your reference:
| Model | Capacity(T/H) | Main Motor Power(kW) | Feeder Power(kW) | Conditioner Power(kW) |
| SZLH-250 | 1.0-1.5 | 22 | 1.1 | 1.5 |
| SZLH-320 | 3-4 | 37 | 1.5 | 4 |
| SZLH-350 | 5-6 | 55 | 1.5 | 4 |
| SZLH-420 | 10-12 | 110 | 1.5 | 7.5 |
| SZLH-508 | 15-16 | 160 | 1.5 | 7.5 |
| SZLH-558 | 20-22 | 180 | 1.5 | 11 |
| SZLH-678 | 30-33 | 220 | 1.5 | 11 |
| SZLH-768 | 38-40 | 315 | 2.2 | 11 |
–
What is the quality of the finished chicken feed pellets?
Pellets feature a smooth surface and uniform hardness, with a Pellet Durability Index (PDI) of 95%–97% and a fines content below 5%. Pellet length is precisely controlled via adjustable cutters to meet farming requirements.
–
What is your FOB price for your chicken feed pellet making machine?
Specific FOB quotations depend on model configuration, capacity requirements, and the port of export. We will provide a formal quotation—including equipment specifications, packaging, and delivery terms—within 48 hours of understanding your detailed needs. The following are our FOB price quotations for our chicken feed pellet machines for your reference:
| Model | Main Motor Power(kW) | Capacity(T/H) | FOB Price(USD) |
| SZLH-250 | 22 | 1.0-1.5 | $7,500 |
| SZLH-320 | 37 | 3-4 | $16,900 |
| SZLH-350 | 55 | 5-6 | $22,800 |
| SZLH-420 | 110 | 10-12 | $31,900 |
| SZLH-508 | 160 | 15-16 | $45,100 |
| SZLH-558 | 180 | 20-22 | $50,000 |
| SZLH-678 | 220 | 30-33 | $66,100 |
| SZLH-768 | 315 | 38-40 | $80,000 |
–
Does the equipment comply with international safety standards (such as CE certification)?
All RICHI chicken feed pellet making machines exported comply with CE, ISO, BV certification standards. Electrical systems utilize internationally recognized components — Siemens, and are accompanied by English safety operation manuals and compliance declarations.
–
Our main raw materials are corn/soybean meal/wheat bran. Can your chicken feed pellet mill handle these materials effectively?
Such conventional formulas fall within the basic capabilities of our chicken feed pellet mill. For high-fiber ingredients like wheat bran, we recommend a reinforced conditioning system (e.g., extended conditioning time or multi-layer conditioners) to ensure optimal pellet formation rate and hardness.
–
What is the warranty period for your chicken feed pellet mill?
The whole machine is covered by a 12-month warranty (starting from the date of arrival at the destination port). The warranty covers manufacturing defects and non-human operational failures.
After the warranty period, we will provide lifelong maintenance and service for the equipment, with material and labor costs significantly lower than market prices.
–
Can you provide remote online support in case of a malfunction? How quickly can an on-site engineer arrive?
We provide 24/7 remote online support to our customers, offering guidance on troubleshooting through video conferencing or intelligent remote control systems.
In case of emergencies or malfunctions that cannot be resolved remotely, we will dispatch an engineer to the site to repair your chicken feed pellet making machine. The fastest response time is within 48 hours (depending on the specific region and visa situation).
–
Do you provide comprehensive training on the operation and maintenance of the chicken feed pellet making machine?
We provide comprehensive free training, including:
- Providing operation manuals, maintenance videos, and fault code guides in English/local language;
- On-site practical training at the customer’s factory;
- On-site installation and commissioning training (guiding the customer team to master daily operation, maintenance, and basic troubleshooting). (View our YouTube)
