cat litter pellet machine
Overview of Cat Litter Pellet Machine
Cat litter pellet machine is a professional equipment that adopts mold-pressing technology to produce cat litter pellets. Various pre-processed powdered raw materials (such as biomass materials like sawdust, pulp, straw, soybean meal, or mineral materials like bentonite and zeolite) are forced through the holes of a ring die under the strong extrusion of rollers.
During this process, the heat generated by high pressure and friction enhances the plasticity of the raw materials, consolidating them into continuous cylindrical strips. These strips are then cut by synchronized knives into uniform cat litter pellets. The cat litter pellet machine effectively improves key properties of the product, such as density, clumping ability, and water absorption, making it essential for standardized and large-scale production of cat litter.
RICHI Machinery offers various models of cat litter pellet machine, with a single-machine output ranging from 1 to 40 tons per hour, capable of producing full-specification pellets with a particle size of 2-12 mm. We can also provide customized services according to your specific needs.
Convert Any Material to Cat Litter pellet
RICHI cat litter pellet machine demonstrates strong raw material adaptability, capable of processing various types of cat litter raw materials to meet production requirements for different material compositions. During production, simply by replacing core components such as the ring die and pressure rollers, and adjusting process parameters, the machine can produce cat litter pellets of different materials, achieving multi-functionality with a single unit.
Depending on the characteristics of the raw materials, a conditioner can be optionally installed. Mineral cat litter typically requires a conditioner, while environmentally friendly cat litter generally does not.
Universal Raw Material Compatibility
Our cat litter pellet machine is not only suitable for mineral powders such as sodium-based and calcium-based bentonite with excellent clumping properties, but also fully compatible with various eco-friendly biomass materials like wood shavings, bamboo powder, straw, soybean meal, and recycled paper pulp.
Bentonite
Coffee Grounds
Corncob
Corn Straw
Silica Eel
Soybean Meal
Pine Sawdust
Recycle Pulps
Technical Features of RICHI Cat Litter Pellet Machine
RICHI cat litter pellet machine stands out in the market as a comprehensive solution that not only boasts remarkable cost-effectiveness through optimized manufacturing processes and energy-efficient design—helping users reduce operational costs significantly in the long run—but also integrates a suite of industry-leading technologies and top-tier components.
The core components of RICHI cat litter pellet machine include: Wear-Resistant Key Parts, Precision Gear Transmission System, Compensating Serpentine Spring Coupling, Anti-Bridging Feeder, Stainless Steel Corrosion-Resistant Body, SKF Brand Bearings, High-Efficiency Conditioner, and Intelligent Variable-Frequency Motor.
With advanced configurations, RICHI cat litter pellet machine delivers exceptional equipment performance—boasting high pelletizing efficiency and low energy consumption—and produces premium-quality finished pellets that exhibit excellent water absorption, rapid clumping, and minimal dust, perfectly catering to the demands of both pet owners and commercial cat litter producers.
01
Wear-Resistant Alloy Key Parts
Key parts such as the ring die, gears, and main shaft are made of 42CrMo alloy steel, reinforced by carburizing heat treatment.
They exhibit excellent wear resistance, significantly extending the equipment’s service life and reducing the frequency of core component replacement.
02

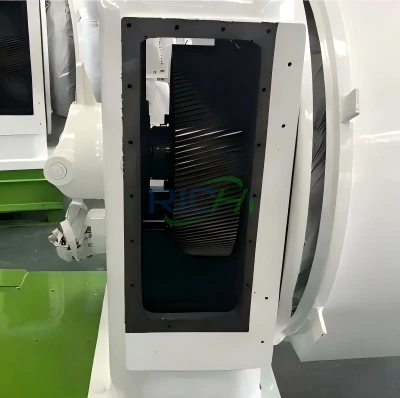

Precision Gear Transmission
Adopts gear grinding technology, resulting in low energy loss during power transmission.
It delivers stable power output, ensuring the ring die and pressure rollers maintain uniform speed and pressure, thereby improving the qualification rate of finished cat litter pellets.
03
Stainless Steel Body
Parts in contact with raw materials and the machine shell are made of 304 stainless steel, which has strong corrosion resistance.
It can adapt to the processing needs of different cat litter raw materials such as bentonite and activated carbon, while prevent raw material contamination.
04

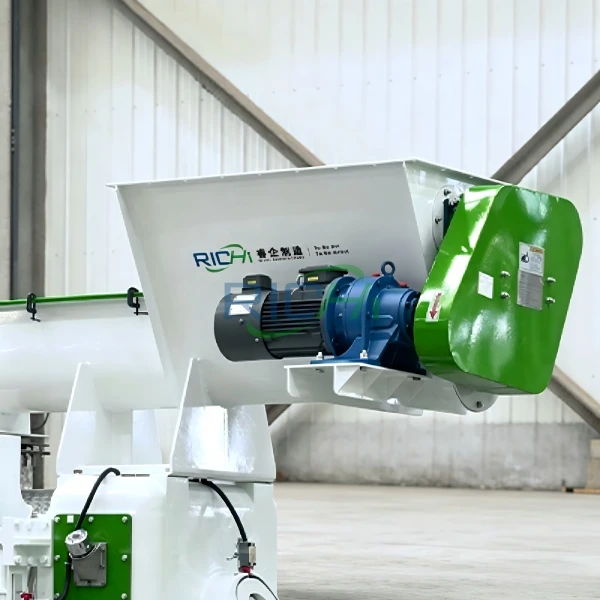

Anti-Bridging Feeder
Specifically designed for light and fluffy materials like wood shavings and bentonite, it features a spiral forced feeder combined with an anti-bridging device.
This setup can break up agglomerated materials in real time, ensuring uniform and continuous feeding of raw materials into the pelleting chamber and avoiding pellet breakage or ring die blockage due to uneven feeding.
05
Ultra-Hard Cutter Assembly
This cutter assembly is crafted from high-quality, wear-resistant alloy steel with a specially hardened and ultra-smooth blade.
Designed for long life and easy maintenance, it allows operators to precisely control pellet length by simply adjusting the cutter-ring die gap.
The result is a final product with a sleek, burr-free surface and perfectly uniform pellet size.
06
Variable-Frequency Motor
Equipped with a Siemens variable-frequency motor and overload protection device, it can adjust the speed in real time according to the characteristics of raw materials.
This not only ensures high-yield output but also avoids energy waste during no-load operation, saving 20% more energy compared to ordinary fixed-frequency motors.
07
SKF Brand Bearings
The gear shafts and main shaft use imported SKF bearings, while the roller shafts are equipped with high-quality domestic precision bearings, ensuring the stability of core components during high-speed operation.
An automatic oil injection lubrication system is also provided to reduce downtime maintenance caused by bearing wear.
08
High-Efficiency Conditioner
Depending on the characteristics of raw materials, 1 to 2 layers of conditioners can be optionally installed.
It precisely controls the moisture content of raw materials(such as hardness and humidity) , improves the hardness and water absorption of cat litter pellets, and reduces the breakage rate of finished products.
09
Full-Automatic Control System
Equipped with a touchscreen operation interface, it can real-time monitor key parameters such as pelleting temperature, pressure, and speed.
It also has a fault self-diagnosis function, which automatically alarms and indicates the fault location when abnormalities occur, reducing the difficulty of manual operation.
How the Cat Litter Pellet Machine Works
Cat litter pellet machine adopts the die-pressing forming process, which can press raw materials such as wood chips, straw, soybean meal, soybean residue, wood shavings, bentonite and silica gel into granular cat litter.
The pelleting process for cat litter pellets made from different raw materials varies slightly, but the core steps all include : feeding → conditioning → extrusion forming → cutting.
First , the crushed raw material is evenly fed through a top-mounted feeder into the conditioner. The feeder is equipped with an anti-bridging device. For woody materials, a forced feeder is additionally installed to push the material into the pelleting chamber, effectively preventing clogging and ensuring continuous and efficient operation.
Next, it’s conditioning. This step is usually used for mineral materials. Inside the conditioner, the material is mixed with steam and vigorously agitated by high-speed dual-shaft paddles. This process fully softens and gelatinizes the material, enhancing its plasticity and adhesion to ensure the resulting pellets are firm and resistant to breaking apart.
Then, the conditioned material is then conveyed into the pelleting chamber. There, it is strongly compressed between the ring die and press rollers, forcing it through the die holes to form dense, solid strands.
Finally, when raw materials are extruded from the die holes of the ring die to form long strips, the synchronized cutter will immediately cut these extruded strips accurately according to preset parameters, finally producing finished pellets with uniform length and regular shape.
Technical Specifications of RICHI Cat Litter Pellet Machine
| Model | MSZLH250 | MSZLH320 | MSZLH350 | MSZLH420 | MSZLH508 | MSZLH558 | MSZLH678 | MSZLH768 |
| Main Motor Power(kW) | 22 | 37 | 55 | 110 | 160 | 185 | 250 | 315 |
| Feeder Motor Power(kW) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Conditioner Power(kW) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 | 11 | 11 |
| Ring Die Diameter(mm) | 250 | 320 | 350 | 420 | 508 | 558 | 673 | 762 |
| Pellet Diameter(mm) | 2~12 | |||||||
| Capacity(T/H) | 1.0-1.5 | 45720 | 45783 | 45942 | 15-16 | 20-22 | 30-33 | 38-40 |
RICHI cat litter pellet machine is capable of processing diverse raw materials (biomass, mineral, and synthetic materials) to produce various types of cat litter pellets required by the market. We offer a range of models with different output capacities and power specifications to comprehensively meet our clients’ needs. Customized solutions are also available based on your specific application requirements.
Application of Cat Litter Pellet Machine
The RICHI cat litter pellet machine is capable of producing various types of cat litter, including mineral-based, plant-based, silica crystal-based, and composite types. This versatility meets diverse requirements such as different feline physiologies (e.g., kittens, adult cats, sensitive cats), usage scenarios (e.g., indoor/outdoor, odor control needs), and cost budgets, effectively expanding the market coverage of finished cat litter products.
Mineral-Based Cat Litter
The main raw material of mineral-based cat litter is bentonite. It features high water absorption and strong clumping properties, with a relatively simple production process and low production cost.
Plant Fiber-Based Cat Litter
Plant fiber cat litter is made from agricultural by-products, featuring safety and low allergenicity. It includes tofu cat litter, corn cat litter, wood-based cat litter, etc.

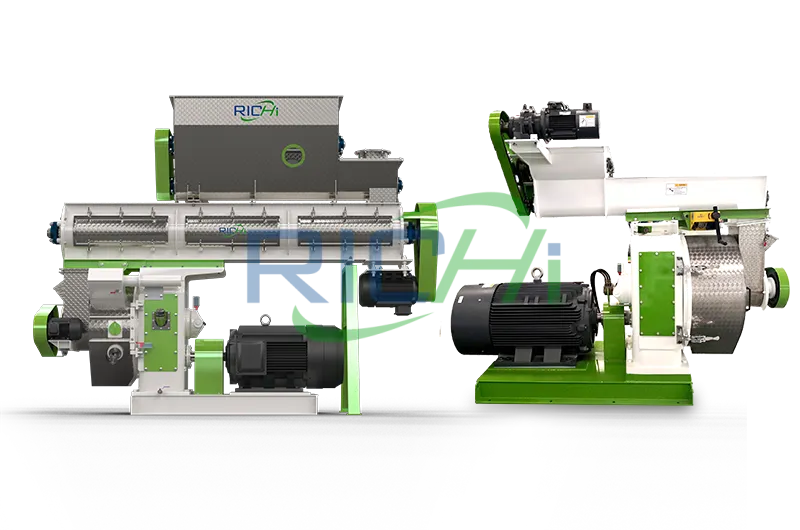

To produce this type of cat litter, a conditioner usually needs to be installed on the pellet machine.
Silica Crystal-Based Cat Litter
Crystal cat litter uses high-purity silica gel as its core raw material. Its pellets features extremely strong water absorption capacity, and no dust, but carries certain safety risks.
Composite Cat Litter
Composite cat litter is produced by blending two or more raw materials in specific proportions, such as “bentonite + wood fiber” “corn cob + zeolite” .
It delivers enhanced overall performance but has higher costs.
Auxiliary Equipment for Cat Litter Pellet Production Line
A complete cat litter pellet production line requires a range of supporting equipment in addition to the core pellet mill, including crushers, dryers, mixers/conditioners, coolers, screening machines, automatic packing scales, dust removal systems, and conveying equipment.

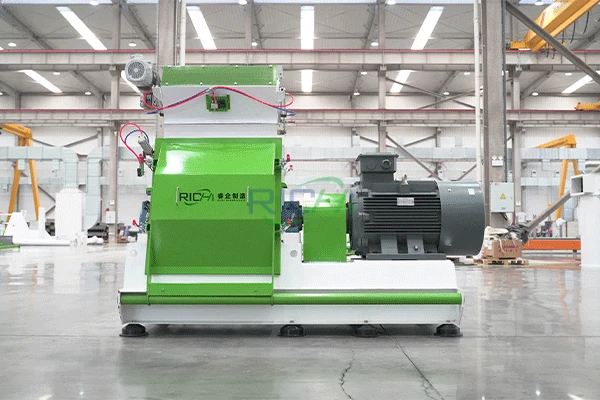

Hammer Mill
Used to crush cat litter raw materials into uniform fine particle sizes that meet the pelleting requirements . This lays the foundation for efficient pellet formation by the subsequent pellet machine and ensures the density and hardness of cat litter pellets.
- Power: 30–250 kW
- Capacity: 1–10 T/H

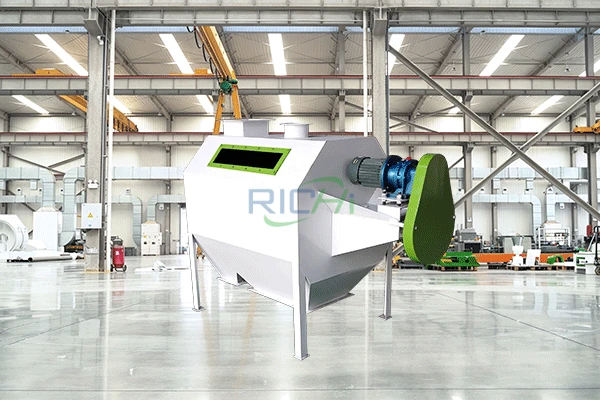

Pre-cleaning machine
It is used to removes impurities such as stones and sand from cat litter raw materials, providing clean raw materials for the subsequent pelleting process and preventing impurities from affecting the quality of finished cat litter or damaging the core components of the pellet machine.
- Power: 0.75 kW / 1.5 kW
- Capacity: 15-50 T/H

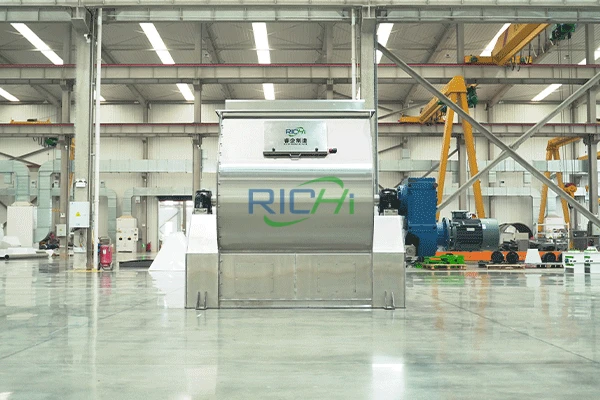

Mixing machine
Ensures uniform mixing of various powdered materials used in cat litter production, guaranteeing consistent composition in every pellet.
- Power: 5.5–30 kW
- Mixing Amount per Batch: 250–2000 kg/P
- Effective volume: 0.5m³、1m³、2m³、4m³
- Material: Carbon Steel / Stainless Steel
- Motor Connection: Chain-driven

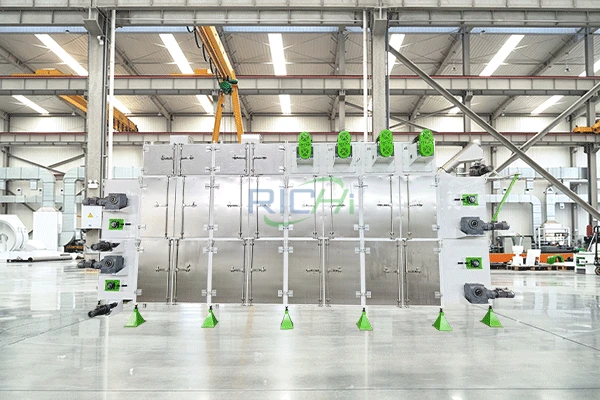

Cat litter Drying machine
Utilizes hot air to reduce material moisture content to 10% -15%. Operating parameters such as material volume, temperature, and humidity can be controlled for ease of operation.
- Power: 5.5-37 kW
- Rotation Speed: 3–12 rpm
- Evaporation Capacity: 30–80 kg/m³
- Volume: 6.03 –147.71 m³

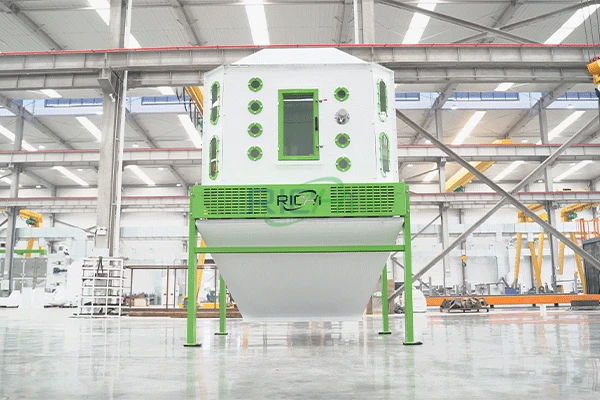

Counter-Flow pellet Cooler
Cools freshly extruded high-temperature pellets to room temperature while further reducing moisture content to 12% –15%. The octagonal cooling chamber minimizes dead zones, and the arc-shaped discharge hopper ensures no residue remains.
- Power: 1.5 / 2.2 kW
- Cooling Time: 6–15 minutes
- Capacity: 1– 40 T/H

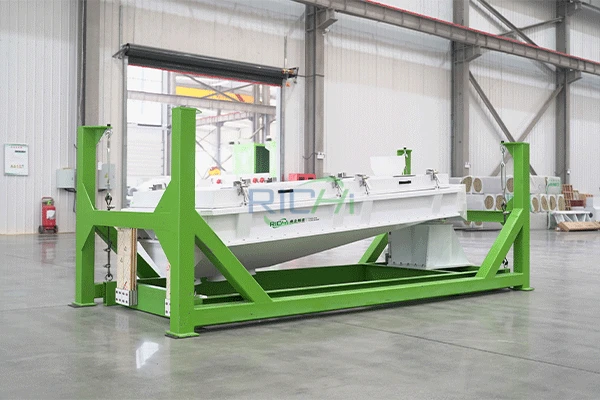

Vibrating Screen
Used for screening finished pellets, adopting a self-balancing vibration method to sieve out pellets with unqualified sizes and powder materials. The inner part of the discharge port is designed with a streamlined shape, which prevents material accumulation. It does not require oil lubrication, thus preventing oil leakage.
- Power: 0.18–0.55 kW
- Capacity: 2–50 T/H

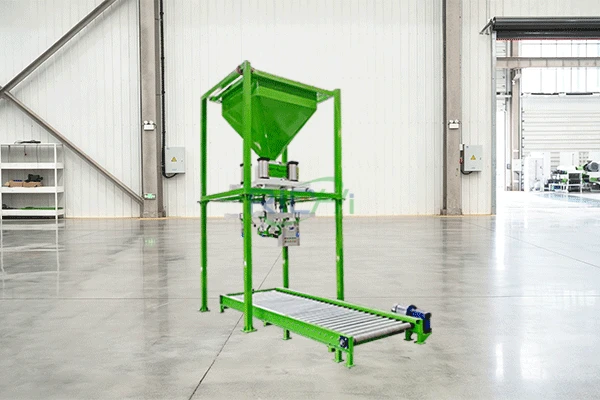

Fully Automatic Packing Scale
Provides precise weighing and packaging of finished pellets. Sealing methods include heat sealing, thread sewing, or hybrid sealing.
- Packing Speed: 2–8 bags/min
- Packing Accuracy: Static error ± 0.1%; dynamic error ± 0.2%
- Feeding Methods: Gravity feed/Auger feed/Belt feed
- Sealing Methods: Plastic Sealing/Thread Sealing,
Conveying Equipment
Machines used to transport materials to the next processing stage, including:
- Pneumatic Conveying System: For vertical transport of lightweight materials.
- Bucket Elevator: For vertical lifting and conveying of materials.
- U-Type Screw Conveyor: For short-distance horizontal or inclined transport of powdered materials.
Pulse Dust Collector
Collects dust generated during cat litter production to maintain a clean and hygienic working environment. It offers high dust removal efficiency, optional numbers of filter bags, and features such as heat resistance, moisture resistance, and anti-static properties.
- Dust Removal Efficiency: ≥ 99.8%
- Number of Filter Bags: 4–72
- Filter Area: 2–36 m²
- Compressed Air Pressure: 0.5–0.7 MPa
Global customer Cases
RICHI boasts a professional R&D and manufacturing team with 30 years of expertise in pellet mill production. Our cat litter pellet machine has been exported to over 140 countries and regions, including Thailand, America, Malaysia, Indonesia, the UK, Russia, and Italy. Below are selected international success cases for your reference. Should you require full technical proposals or detailed engineering information for any project, our engineering team is ready to provide professional support and comprehensive assistance.

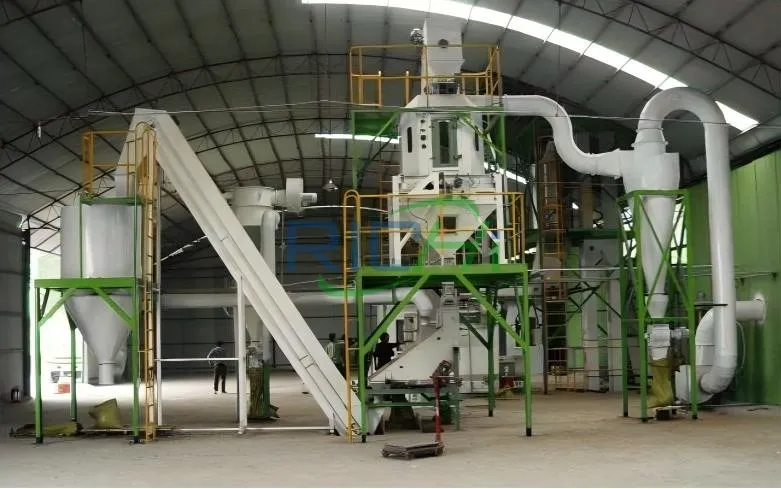

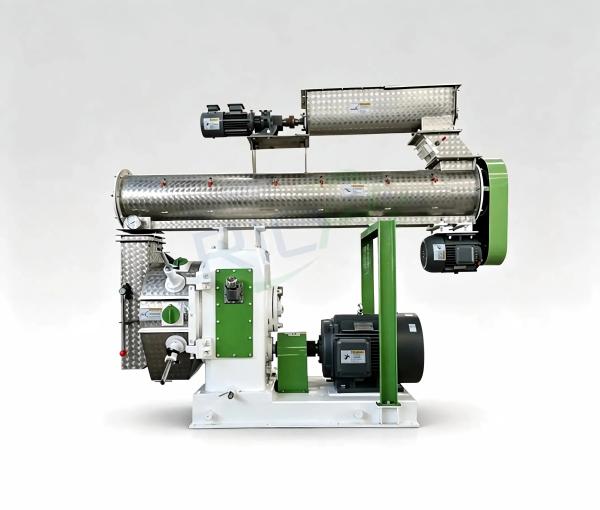

1 T/H Tofu Cat Litter pellet machine in Thailand
Boasting a production capacity of 1.0–1.5 T/H, this cat litter pellet machine processes raw materials including tofu residue, bean powder, soybean dregs, corn starch, and deodorants into high-quality pellets sized 1.5–3 mm in diameter.
The core objective of deploying this specialized cat litter pellet machine was to fully utilize locally abundant legume-based resources, enabling the production of tofu cat litter.
- Capacity: 1 T/H tofu cat litter
- Cat Litter Pellet Machine Model: SZLH250 tofu cat litter pellet machine
- Pellet Size: 1.5-3mm

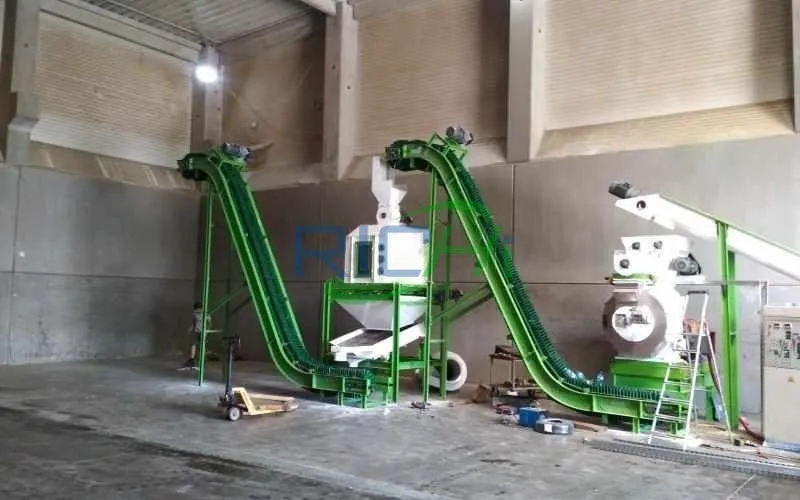

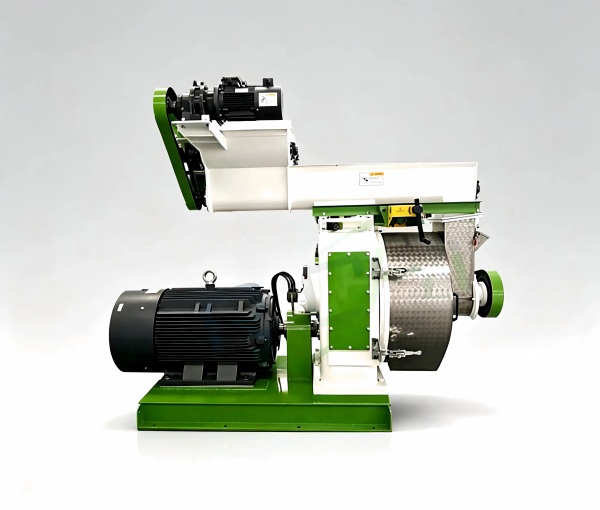

3–4 T/H wood Cat Litter pellet machine in Italy
This cat litter pellet machine tailored for a Italian client can efficiently process raw materials such as corn stalks, pine wood shavings, and fir wood shavings into eco-friendly cat litter.
A standout feature of this specialized cat litter pellet machine is its one-touch formula switching function, enabling product changeovers in under 30 minutes without complex reconfiguration.
- Capacity: 3-4 T/H wood cat litter
- Cat Litter Pellet Machine Model: SZLH250 wood cat litter pellet machine
- Pellet Size: 1.5-3mm

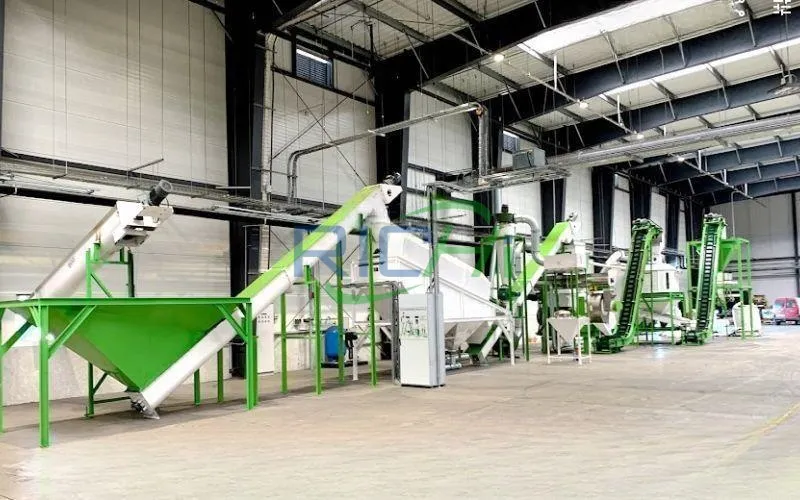

4-5 T/H bentonite Cat Litter pellet machine in USA
The American client is from Mississippi, which is the largest bentonite producer. So the client required a cat litter pellet machine which can transform bentonite into standardized cat litter products.
This cat litter pellet machine can produce three types of products: white cat litter, colored cat litter, and composite colored cat litter, with a water absorption rate of up to 300%.
- Capacity:1 T/H tofu cat litter
- Cat Litter Pellet Machine Model: SZLH250 tofu cat litter pellet machine with a capacity of 5–6 tons per hour, tailored to
- Pellet Size: 2-4mm
Frequently Asked Questions
Below are common questions from clients considering the purchase of cat litter pellet machine. For further inquiries, our technical team is readily available to assist you.
–
What types of cat litter can your cat litter pellet machines produce?
RICHI cat litter pellet machine is designed to meet diverse production needs. By adjusting the mold and process parameters, it can produce a wide range of cat litter types, including tofu litter, pine wood litter, corn litter, mineral litter, paper pulp litter, and silica crystal litter.
–
What types of raw materials can your machine process?
The RICHI cat litter pellet machine demonstrates strong raw material adaptability and is capable of processing various types of cat litter raw materials to meet the production needs of different material compositions.
- Wood-based materials: Sawdust from hardwoods such as pine, fir, oak, birch, and poplar; wood shavings; wood flour.
- Mineral-based materials: Bentonite, zeolite, silica gel.
- Plant-based materials: Straw, rice husks, corn cobs, tofu residue, soybean meal, coffee grounds.
- Paper-based materials: Recycled newspaper, pulp, waste cardboard.
- Auxiliary additives: Starch, activated carbon, antibacterial agents, baking soda.
–
Can it produce pellets in different shapes and sizes?
Various pellet shapes and sizes can be achieved by changing the mold. Standard molds are provided free of charge, and custom shapes (e.g., hexagonal, hollow pellets) are also supported to meet your specific requirements.
–
For high-moisture raw materials (e.g., soybean residue with 70% water content), is additional pre-treatment required?
For high-moisture raw materials, we recommend pairing the system with an optional drying pre-treatment unit. While the car litter pellet machine can be equipped with a conditioner to adjust moisture and temperature, initial moisture levels above 60% require pre-treatment to ensure proper pellet formation.
–
What is the finished product yield?
Under suitable raw material conditions, the finished product yield can exceed 98%. Waste materials can be recycled and reused through a recovery system to minimize loss.
–
How are dust and pellet strength controlled during production?
RICHI cat litter production line is fully equipped with pulse dust collectors to capture dust generated during operation, ensuring a clean and hygienic production environment.
Precisely calibrated compression molds ensure firm and dense pellets. A screening device is also included to separate fines and non-conforming pellets, which are then recycled for reprocessing.
–
Can the product meet clumping litter standards?
For clumping litter, rapid clumping with firm consistency can be achieved by adjusting the binder ratio and expansion temperature.
–
Is the equipment’s production capacity stable? What is the approximate hourly electricity cost?
RICHI cat litter pellet machines are equipped with Siemens variable-frequency main motors, allowing adjustable output capacity and avoiding no-load energy consumption.
Actual energy consumption may vary slightly depending on raw material characteristics and pellet size. We can provide an energy consumption estimate for your reference.
–
What does the after-sales support include? Can you provide on-site installation guidance and operational training?
We offer a comprehensive one-stop service:
- Installation Phase: Engineers are dispatched for on-site installation guidance and commissioning to ensure the equipment meets operational standards.
- Training Phase: Theoretical and practical training for operators, covering startup, maintenance, and troubleshooting.
- After-Sales Guarantee: 1-year warranty on the main machine, lifelong technical support, 24-hour response for inquiries, and on-site assistance within 48 hours if necessary. Multilingual operation manuals and video tutorials are also provided.
