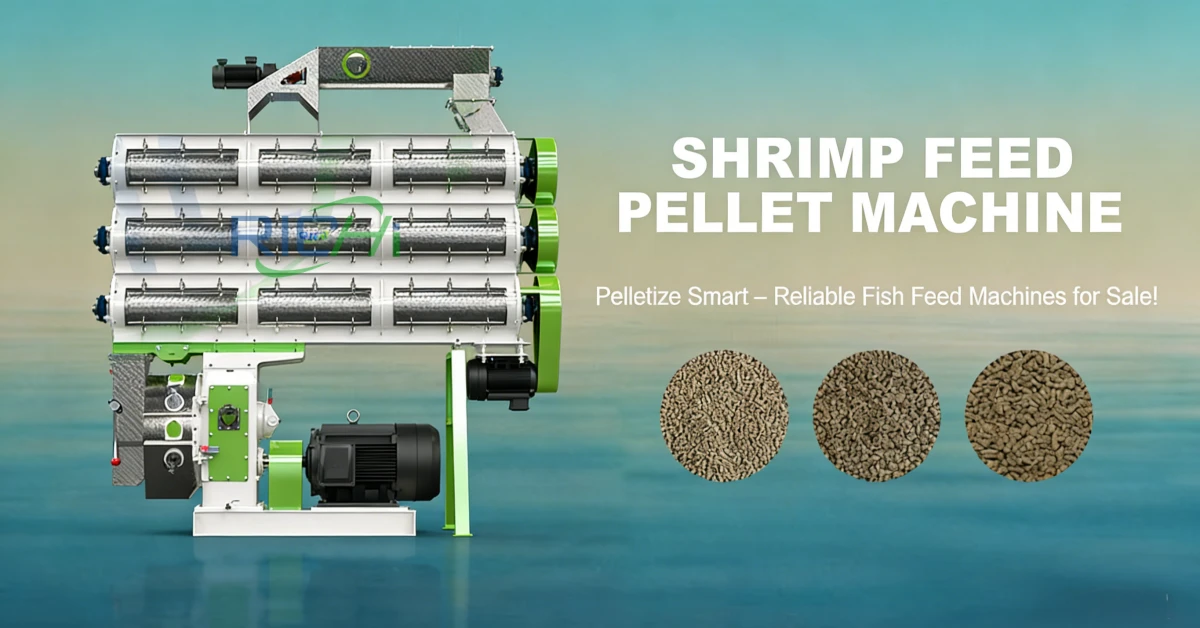

Shrimp Feed Pellet Machine
Wide Applications:
Suitable for sinking & slow-sinking aquafeed.
Superior Water Stability:
Special conditioning technology create stronger bonding, keeping pellets intact for hours in water.
CE & ISO Certified:
International quality & safety standards
One-Stop Service:
Turnkey shrimp feed production line available
Customizable Capacity:
0.3-15 T/H output–From small farms to industrial production
What Is a Shrimp Feed Pellet Machine?
A shrimp feed pellet machine is a specialized feed processing machine designed to produce sinking or slow-sinking shrimp feed pellets with high water stability and high protein formulation adaptability.
RICHI shrimp feed pellet machine uses controlled conditioning and mechanical compression to form dense, durable sinking pellets.
- Water stability >12 hours – Special press roller configuration for better binding
- Micro-pellets (1-3 mm) – Precision die technology
- High density for slow sinking – Controlled by conditioning and extrusion parameters
- Adjustable compression ratio ring die：ideal for aquafeed, and even livestock, poultry feed
Why Shrimp Feed Needs Specialized Pellet Machine?
As a benthic animal, shrimp requires slow-sinking feed with excellent water stability and small particle size for easy ingestion. Shrimp feed also features high protein and high oil content, which brings great challenges to feed production.
To produce high-quality shrimp feed, a specialized shrimp feed pellet machine is a must. It is equipped with small-bore, high-compression ring die to ensure dense pellets; advanced conditioning system for full starch gelatinization; and stable processing capacity for high-protein, high-oil materials to avoid blockage and downtime.
RICHI shrimp feed pellet machine is specially designed to perfectly meet all these challenges.
Technical Advantages of RICHI Shrimp Feed Pellet Machine
As a professional feed machinery manufacturer, RICHI Machinery has many years of experience in aquafeed projects. We have developed specialized shrimp feed pellet machines tailored to the unique requirements of shrimp feed: high protein, high oil content, and excellent water stability. Our solutions can help shrimp feed producers achieve higher pellet quality, lower production costs and more stable long-term operation.
Technical Specifications of RICHI Shrimp Feed Pellet Machine
| Model | Capacity(T/H) | Main Motor Power(kW) | Feeder Power(kW) | Conditioner Power(kW) | Ring Die Diameter(mm) | Pellet Diameter(mm) |
| SZLH320 | 0.3-1.0 | 22 | 1.5 | 2.2 | 320 | 1-3 |
| SZLH350 | 0.5-2.0 | 37 | 1.5 | 3 | 350 | |
| SZLH420 | 1.2-4.0 | 90 | 1.5 | 7.5 | 420 | |
| SZLH508 | 2.0-5.0 | 132 | 2.2 | 11 | 508 | |
| SZLH558 | 3.0-8.0 | 180/200 | 2.2 | 11 | 558 | |
| SZLH678 | 4.0-10 | 220/250 | 2.2 | 11 | 673 | |
| SZLH768 | 4.5-10 | 250/280 | 2.2 | 11 | 762 | |
| SZLH858 | 5.5-15 | 315/355 | 2.2 | 15 | 858 | |
| Ring Die Material: 42 CrMo Triple-Layer Stainless Conditioner Pelleting Chamber Door’s: 6mm/SUS304 Gear Box: HT250 Gear: 42 CrMo Gear Shaft:20CrMnTi Spindle: 42 CrMo Empty Shaft: 42 CrMo Bearings: SKF brand Main Motor: 4/6/8P Siemens motor | ||||||
Because RICHI’s technology is constantly being updated and iterated, we will continuously upgrade and innovate our equipment. Therefore, the specific equipment parameters are subject to the actual quotation. We will provide more professional customized design and production services for each customer.
How A Shrimp Feed Pellet Machine Works
The working principle of a shrimp feed pellet machine mainly relies on conditioning and physical extrusion to compress powdered feed materials into pellets.
The process is as follows:
First, the mixed powdered materials are evenly fed into the conditioner through the feeding hopper. Then high-temperature steam is introduced into the conditioner and fully mixed with the powder, which gelatinizes and matures the starch, improving feed digestibility and binding performance, while also achieving sterilization.
Next, the conditioned materials enter the pelletizing chamber. Under the high-speed and strong extrusion between the ring die and press rollers, the materials are forced out through the die holes, and quickly cut into the required pellet length by the cutting knife.
Finally, the pellets are cooled in the cooler to harden them, facilitating subsequent screening and packaging.
Versatile Applications of Shrimp Feed Pellet Machine
A professional, high-performance shrimp feed pellet machine can handle almost all raw materials needed for complete shrimp feed with ease. It achieves this thanks to its strong adaptability, precise control system and advanced mechanical design. By adjusting conditioning temperature, moisture and ring die compression ratio for different shrimp feed formulas, it stably and efficiently produces high-quality aquafeed pellets. These pellets feature high water stability and a low percentage of fines.
soybean meal
fish meal
fish oil
corn
wheat
mineral additive
RICHI shrimp feed pellet mill comes with standard ring dies of 1–3 mm. It also supports customized hole sizes. This feature allows the machine to produce multiple types of feed. It can efficiently make aquafeed for shrimp, fish, crabs and other aquatic animals. It can even process livestock and poultry feed. This helps you capture a multi-category market with just one machine.
shrimp
lobster
sinking fish
crab
pig
chicken
Global Customer Cases
RICHI shrimp feed pellet machines have been exported to various countries and regions worldwide. Aquafeed producers across the globe speak highly of these machines, thanks to their exceptional efficiency, consistent output and top-tier pellet quality. Here are some successful cases for your reference.
Indonesia 1-2 T/H shrimp feed making machine
The customer chose a special shrimp feed pellet mill with a triple-layer conditioner for producing sinking feed. The triple-layer conditioner extends conditioning time, ensuring full ripening of raw materials and greatly improves water stability and digestibility of the feed pellets.
The production line includes crushing, mixing, cooling, screening and automatic packaging systems. The whole line features an anti-corrosion design, adapting to Indonesia’s high temperature and high humidity and ensuring stable long-term operation.
- Raw Materials: fish meal, shrimp shell powder, soybean meal, tapioca flour, wheat flour, corn, astaxanthin, phospholipid oil, vitamin premix
- Pellet Size: 1.0–2.5 mm (suitable for shrimp from post-larvae to adult stages)
Iran 10-12 T/H prawn feed manufacturing machine
An Iranian customer needed to build a professional aquatic feed composite production line. To meet this demand, RICHI selected a special prawn feed pellet mill and a fish feed twin-screw extruder as the core equipment for the customer. These two devices produce sinking prawn feed and floating fish feed respectively.
The entire line integrates crushing, mixing, drying, cooling, screening and automatic packaging systems. Through PLC central control, it achieves independent operation and flexible scheduling of the two production lines.
- Raw Materials: fish meal, shrimp head powder, soybean meal, wheat bran, rice bran, phospholipid oil, sargassum powder, oil, vitamin and mineral premix
- Pellet Size: 1.0-2.5 mm high water-stable sinking prawn feed pellets; 2-8 mm floating fish feed pellets
Algeria 10 T/H Prawn Feed Making Machine
The customized prawn feed making machine designed by RICHI is powerful. By changing the die and adjusting conditioning parameters, you can flexibly switch between producing sinking prawn feed and ruminant feed (such as cattle and sheep feed) on the same production line.
The entire line adopts a modular design. It integrates crushing, mixing, pelleting, cooling, screening and automatic packaging systems in a limited space. Through PLC intelligent control, it realizes quick formula switching.
- Raw materials:barley, corn, fish meal, meat and bone meal, wheat bran, premix, fish oil
- Pellet size: 1.0–2.5 mm high water-stable sinking prawn feed (water stability ≥ 12 hours); 6-12 mm ruminant feed pellets
main Equipment of a Complete Shrimp Feed Production Line
RICHI supplies not only core shrimp feed pellet machines, but also full-line supporting aqua feed machine— sifters, grinder, screeners, crushers, mixers, dryers, coolers, bagging machines and more. All equipment can be fully customized to your production scale, raw material and process needs.
Precleaning Machine
Ultra-Fine Grinder
Feed Hammer Mill
Shrimp Feed Mixer
Mesh Type Drying Machine
Counterflow Cooler
Vibrating Screen
Packing Machine
Storage Silo
Oil Spraying Machine
Frequently Asked Questions
Below are some questions you may have when you purchasing a shrimp feed pellet machine. If you have any inquiries, please feel free to contact us. Click here to learn more about RICHI and our service.
–
How many tons of shrimp feed can your shrimp feed pellet machine produce per hour? My farm needs 5,000 tons per year. Which model should I choose?
Our shrimp feed pellet machines come in various series with hourly outputs ranging from 0.3 ton to 15 tons. For your annual requirement of 5,000 tons (based on 10 hours/day, 300 days/year, requiring approximately 1.5-2 tons/hour), I recommend our SZLH 350 or 420 shrimp feed making machine. It meets your current needs and has a 20% buffer for peak season expansion. We can provide detailed factory layout drawings based on your available space.
–
How long can your pellets hold their shape in water? Can they last for 2 hours?
Our shrimp feed pellet machine is equipped with a three-layer extended conditioner, ensuring the starch is fully gelatinized (up to 90%+ maturity). Under standard formulas, our shrimp feed pellets achieve water stability for 12 hours. This guarantees shrimp can consume complete nutrients while minimizing water pollution.
–
Can your shrimp feed pellet mill produce small-diameter pellets uniformly?
Absolutely. RICHI shrimp feed pellet mills are designed for the high precision required in aquaculture:
- Minimum Die Size: Standard dies go down to 1 mm, ideal for shrimp starter feed.
- Cutting System: We feature a multi-blade cutter system, allowing pellet length to be precisely controlled (typically 1-1.5 times the diameter) with minimal fines.
- Customization: For the specific sizes you mentioned, we can supply tailored high-alloy steel dies with the exact hole diameters you need.
–
My formula contains a lot of soybean meal, rapeseed meal, cottonseed meal, and oil. Can your shrimp feed pellet machine handle these? Is it prone to blocking?
This is where our shrimp feed pellet mill excels. To handle high ratios of unconventional ingredients (like high fiber or oil), we use larger diameter rollers and thicker ring dies, coupled with a variable frequency speed control feeder. If raw material viscosity varies, you can adjust the feed rate and conditioning temperature in real-time. This prevents blockages and ensures a pelletizing rate above 98%.
–
What is the service life of easily worn parts such as ring dies and press rollers? Are spare parts available?
We use ring dies made of high-quality alloy steel (42CrMo) with carburizing treatment. Under normal shrimp feed production (without excessive sand or abrasive materials), one die can last over 1000 hours (depending on the feed’s corrosiveness). Commonly used models are always in stock to prevent production delays.
–
Is this shrimp feed pellet machine complicated to operate? How many people are needed?
It is very user-friendly. We include a PLC control system as standard, featuring one-button start, automatic lubrication, and self-diagnostic functions. Under normal conditions, one person can monitor 2-3 pellet mills simultaneously.
–
What after-sales services do you offer?
RICHI Machinery offers a 12-month warranty for our shrimp feed pellet machines. In addition, we offer free on-site installation and commissioning, on-site operator training, and a free annual inspection to ensure worry-free use. （View our YouTube）
