RICHI livestock feed production line offers a flexible capacity range of 1-100 T/H and produces pellets with a diameter of 2-12 mm, suitable for cattle, sheep, pigs, poultry, rabbits, and other livestock. We provide customized solutions including crushing, mixing, conditioning, pelleting, cooling, and packaging.
RICHI High-Efficiency Livestock Feed Production Line
Our livestock feed production line processes grain raw materials and agricultural by-products into high-quality, uniform, and nutritionally balanced feed pellets, precisely meeting the feeding needs of various livestock and poultry such as pigs, cattle, horses, sheep, and rabbits.
RICHI Machinery provides one-stop turnkey engineering services, offering full support from solution design to installation and commissioning, helping your farms and feed companies achieve substantial profits.
۱-۱۰۰ تن در ساعت
ظرفیت (تن در ساعت)
$10,000-$3,000,000
هزینه سرمایهگذاری (دلار آمریکا)
۳۰ سال تجربه در صنعت
With 30 years of deep cultivation and professional experience, we possess profound insights into the actual challenges and needs faced by customers of different sizes and in different markets worldwide, providing them with stable and reliable complete production systems.
خدمات کامل پس از فروش
RICHI offers an industry-leading end-to-end service system, including a one-year warranty, on-site installation and commissioning, operator training, and lifetime technical support.
ساختهشده بر اساس نیازهای شما
We can provide fully customized engineering designs to meet the diverse needs of customers in terms of raw material type and production scale, while also adapting to special site conditions and automation goals.
Application of Livestock Feed Production Line
RICHI livestock feed production line stands out for their exceptional adaptability and high flexibility, making them widely applicable to a variety of feed production scenarios.
مجموعه جامع محصولات برای همه گونههای دام
A single livestock feed production line can meet all the feed production needs of your farm or feed mill. It can precisely produce feed for various animals, including cattle, sheep, horses, pigs, rabbits, and chickens, at all stages of their growth.
By adjusting the ring die aperture and processing parameters (such as mixing time and steam temperature) of the livestock pellet mill, this production line can easily produce pellets with a diameter of 2-12 mm.
Furthermore, our livestock production line can also be used to produce powdered feed or premixed feed.
خوک
گاوها
گوسفند
اسب
خرگوش
مرغ
سازگاری استثنایی با مواد اولیه
Our livestock feed production line boasts exceptional raw material adaptability. It can process various types of grain raw materials or forages, such as corn, wheat, barley, soybean meal, rice bran, alfalfa, cassava residue, sugarcane bagasse, peanut meal, oils, vitamin and mineral premixes, functional additives, and more. This robust material adaptability allows users to flexibly utilize local resources, reduce procurement costs, and freely design cost-effective feed formulations based on nutritional principles, freeing them from equipment limitations.
ذرت
گندم
جو
آرد سویا
شاخهها
روغن سبوس برنج
سبوس گندم
کاه برنج
ترهلاری
علف فیل
ماده افزودنی معدنی
نفت
فرآیند کار Livestock Feed Production Line
The complete livestock feed production line involves multiple steps: raw material cleaning, batching & mixing, raw material crushing, pelleting, cooling, screening and packaging.
With 30 years of experience in R&D and production of دستگاه خوراکدهی حیوانات, RICHI Machinery ensures pellet quality and production line efficiency through professional technology.
تمیز کردن مواد اولیه
01
Using a cleaning screen and iron remover, impurities are removed from various raw materials such as corn, wheat, and soybean meal, ensuring feed safety while preventing damage to equipment.
خرد کردن
02
A feed grinder grinds the raw materials into powder form, facilitating subsequent pelleting.
بچینگ و مخلوط کردن
03
The ground raw materials are weighed and proportioned according to the formula. Then, all raw materials are fed into a mixer for thorough mixing, ensuring a balanced nutritional profile in the feed.
پلت کردن
04
The mixed material is fed into a pellet mill. It is formed into long strips by the strong extrusion of a ring die and pressure rollers, and then cut into small pellets of uniform length by a cutter.
خنک کننده
05
The high-temperature, high-humidity pellets are sent to a cooler to cool to room temperature and remove moisture, preventing mold growth and improving pellet hardness.
پرتونگاری
06
The cooled pellets are screened. Qualified pellets are sent to the packaging process. Dust or oversized pellets are recycled for secondary processing.
بسته بندی
07
Weigh, bag, and seal the finished pellets using a packing scale.
Main Equipment of a Livestock Feed production Line
ماشینآلات ریچی provides a complete range of machinery for livestock feed production, including crushing machine, mixing machine, دستگاه تولید پلت خوراک دام, cooling machine, vibrating screen, packaging machine and more.
مواد خام را به ذرات ریز تبدیل میکند تا هضم و پلتسازی بهتر انجام شود.
ظرفیت
۳-۵۰ تن در ساعت
توان
۳۷-۲۲۰ کیلووات
تمام مواد را بهطور یکنواخت مخلوط میکند تا در هر لقمه تغذیهای یکنواخت را تضمین کند.
ظرفیت
۲۵۰-۲۰۰۰ کیلوگرم/کیسه
توان
۵.۵ تا ۳۰ کیلووات
دستگاه پلت خوراک دام
پودر مخلوط را با استفاده از بخار و فشار به پلتهای متراکم و بادوام فشرده میکند.
ظرفیت
۱-۴۰ تن در ساعت
توان
۲۲-۲۵۰ کیلووات
Feed Pellet Cooling Machine
گلولههای داغ را خنک و خشک میکند تا سفت شوند و برای نگهداری پایدار گردند.
ظرفیت
۱-۴۰ تن در ساعت
توان
۱.۵-۲.۲ کیلووات
الک لرزشی
پلتهای نهایی را از پودرها و ذرات بزرگتر از حد جدا میکند تا اندازه یکنواختی را تضمین کند.
ظرفیت
۱-۵۰ تن در ساعت
توان
0.18-0.55 کیلووات
به طور خودکار خوراک نهایی را وزنکشی و در کیسهها برای ارسال بستهبندی میکند.
ظرفیت
۶-۱۲ کیسه در دقیقه
توان
۰.۵۵-۲.۵ کیلووات
خردکن پلت خوراک
پلیتها را به خردههای کوچکتر مناسب برای طیور جوان خرد میکند.
ظرفیت
۳-۸ T/H
شماره رولر
۲-۳ غلتک
سیلوی ذخیره سازی
مواد خام یا خوراکهای آماده را به صورت عمده ذخیره میکند.
ظرفیت
تا ۱۰٬۰۰۰ تن
مواد سیلو
فولاد ضدزنگ
Projects Cases Of RICHI Livestock Feed Production Line
In the highly competitive feed machinery industry, RICHI has earned an irreplaceable core competitiveness thanks to its 30 years of experience, customer-centric comprehensive services, and customized solutions. To date, we have built livestock feed production lines for over 2,000 clients and received widespread acclaim. Below are some successful project case studies for your reference.

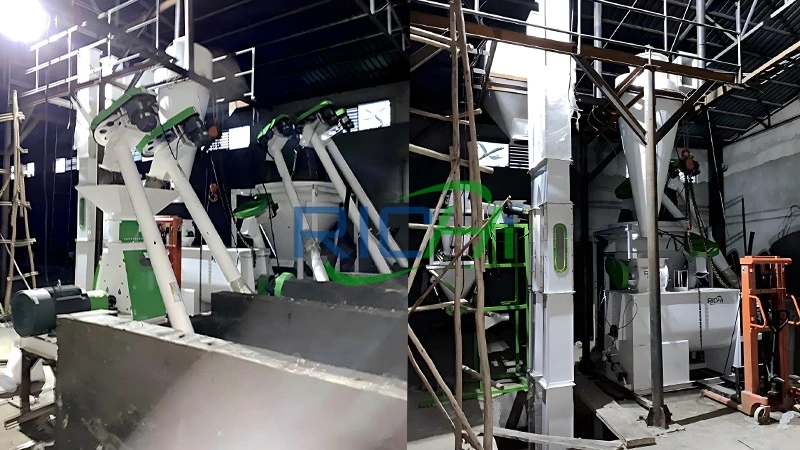

3-4 T/H Livestock Feed production Line in Ethiopia
RICHI provided an Ethiopian customer with a production line for powdered pig feed with a capacity of 3-4 tons per hour.
The solution utilizes a highly efficient grinding and precise batching system to ensure uniform raw material fineness and thorough mixing.
- Installation Period: 20 Days
- Guide Price: $30,000 USD
1-2 T/H Livestock Feed Production Line for Sale Uzbekistan
RICHI designed a livestock feed production line with a drying system for a client in Uzbekistan. The client’s raw materials included a large quantity of alfalfa hay.
The production line is equipped with a heavy-duty grinder and a high-efficiency conditioning system, capable of processing high-fiber alfalfa hay to produce nutritionally balanced, palatable cattle and sheep pellets.
- دوره نصب: ۳۰ روز
- Guide Price: $100,000 USD
Afghanistan 8-10 T/H Livestock Feed Production Line
RICHI provided this multi-functional livestock feed production line to a client in Afghanistan, suitable for producing feed for cattle, sheep, and chickens.
The entire line integrates crushing, batching, mixing, pelleting, cooling, screening, and packaging processes, with a high degree of automation, helping the client quickly establish modern feed processing capabilities.
- دوره نصب: ۹۰ روز
- قیمت راهنما: $340,000 دلار آمریکا
15 T/H Livestock Feed Production Line in Uganda
RICHI provided a large-scale livestock concentrate feed production line with a capacity of 15 tons per hour to a customer in Uganda.
The production line is relatively simple in configuration, consisting only of a pellet mill, cooler, screening machine, and baler. The investment cost is low.
- Installation Period: 20 Days
- Guide Price: $46,000 USD
Iran 3-4 T/H Livestock Feed Production Line
RICHI designed a flexible, multi-variety feed production line for its Iranian clients, capable of simultaneously producing fish feed and livestock feed.
The solution features interchangeable ring molds and multiple formulation management systems to meet the nutritional needs of different animals, achieving versatility and reducing equipment investment costs.
- دوره نصب: ۶۰ روز
- Guide Price: $130,500 USD
Argentina 3-4 T/H Livestock Feed Production Line
RICHI designed a premium cattle feed production line for a client in Argentina. The solution, tailored to different stages of beef cattle fattening and dairy cow milk production, incorporates a precision feeding system and efficient conditioning and pelleting equipment. Thus this line can produce high-nutrient-density, uniformly sized premium cattle feed, helping the client build a high-end feed brand.
- مدت زمان نصب: ۱۵ روز
- Guide Price: $83,000 USD
Video of RICHI Livestock Feed Production Line
The following are real-life videos of RICHI livestock feed production lines that have been successfully delivered to customers. Through these videos, you can see the actual appearance of the production lines we have built for our customers and experience firsthand the exquisite craftsmanship of our livestock feed production equipment.
Customized Production Lines with Different Capacities
RICHI offers livestock feed production lines with capacities ranging from 1 to 100 tons per hour, catering to the diverse needs of everyone from small family farms and startups to large feed producers. Furthermore, we provide customized services, tailoring solutions to meet the specific production processes, facility conditions, and investment budgets of our clients.

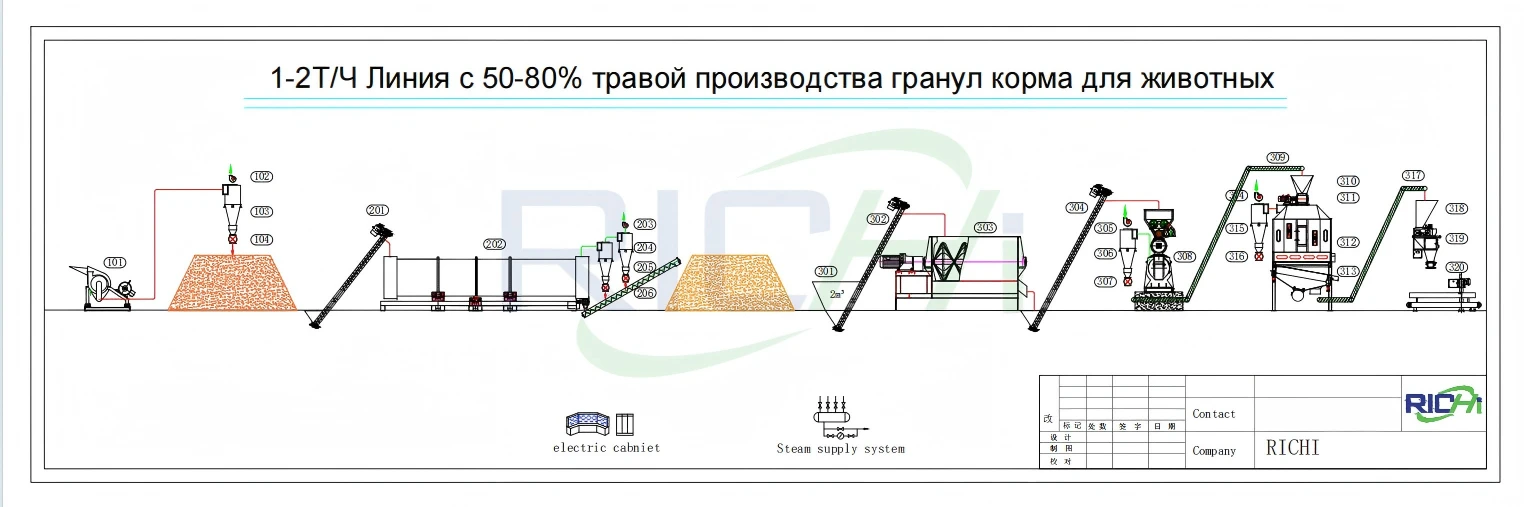

1-2 T/H Livestock Feed Production Line with Drying System
نوع خوراک تولیدی: pelleted feed for cattle and goat
جریان فرآیند: crushing system – drying system – mixing system – pelletizing system – cooling & screening system – packaging system
تجهیزات اصلی مورد استفاده: forage crushing machine, feed mixer machine, ماشین پلتسازی خوراک بز, cooling machine, vibrating screen, packing machine, screw conveyor
5-6 T/H Livestock Feed & 1.5-2 T/H Fish Feed Production Line
نوع خوراک تولیدی: pelleted feed for cattle, goat, and fish
جریان فرآیند: crushing system – mixing system – pelletizing system – drying system – cooling & screening system – packaging system
تجهیزات اصلی مورد استفاده: feed hammer mill, feed mixer machine, ماشین اکسترودر خوراک ماهی, belt type dryer, sheep feed pellet machine, cooling machine, vibrating screen, packing machine, conveyor
10-15 t/H High-End Livestock Feed Production Line
نوع خوراک تولیدی: livestock feed pellets
جریان فرآیند: receiving system – crushing system – batching & mixing system – pelleting system – cooling & screening system – packaging system
تجهیزات اصلی مورد استفاده: SFSP66*80 feed hammer mill, batching bin, 1T/P feed mixer, cattle feed pellet machine, cooling machine, SSLG15*150 feed pellet crumbler, rotary screen, packing machine, screw conveyor, bucket type elevator

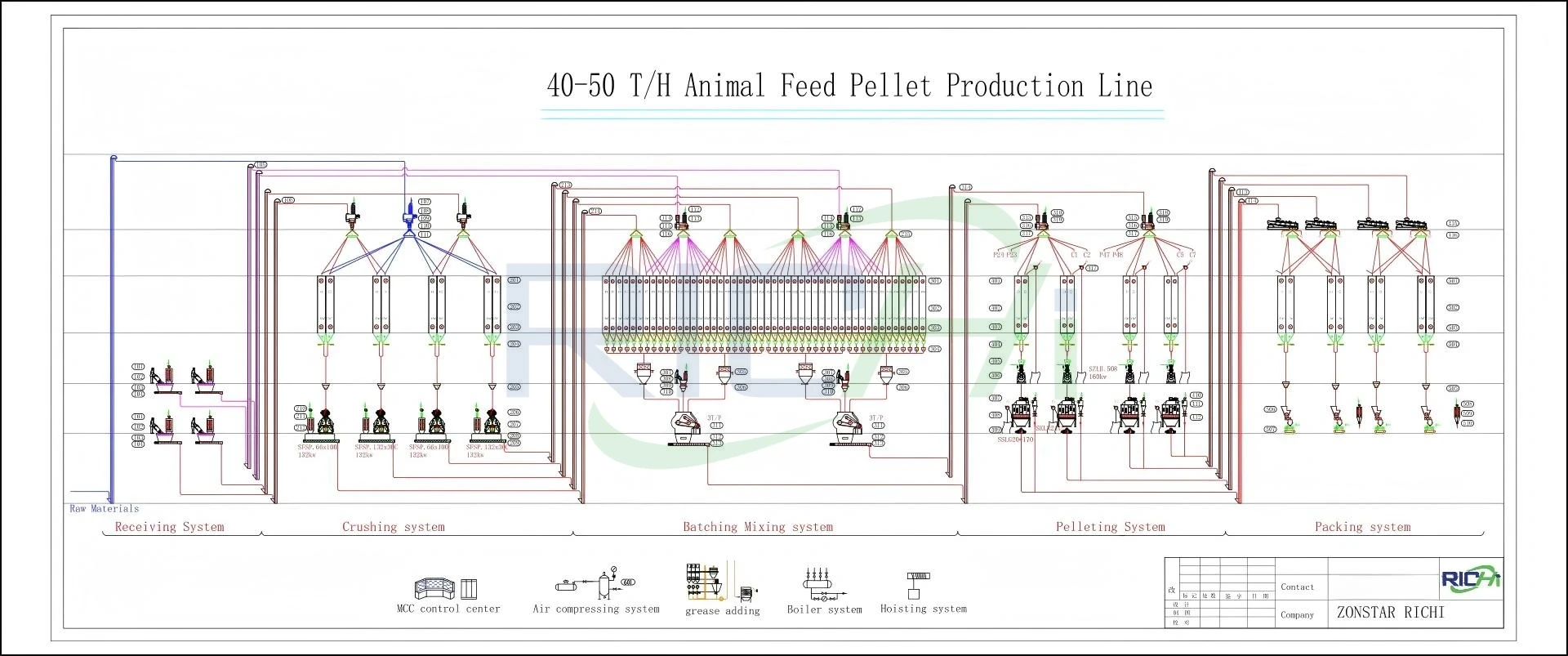

40-50 T/H Industrial Livestock Feed Production Line
نوع خوراک تولیدی: poultry feed and livestock feed pellets
جریان فرآیند: سیستم دریافت – سیستم خردایش – سیستم اختلاط – سیستم پلتسازی – سیستم خنککاری – سیستم بستهبندی
تجهیزات اصلی مورد استفاده: آسیاب چکشی خوراک SFSP66*80، مخزن مخلوطکن، میکسر خوراک ۱ تن در دقیقه، SZLH-420 دستگاه تولید پلت خوراک دام, ، دستگاه خنککننده، خردکن پلت خوراک SSLG15*150، الکگردان چرخشی، دستگاه بستهبندی، نوار نقاله مارپیچی، بالابر سطلی
سوالات متداول
The following is a summary of frequently asked questions from clients when investing in and constructing a livestock feed production line. Please feel free to با ما تماس بگیرید if you have any further questions.
What is the initial investment for a livestock feed production line? How long does it take to recoup the costs?
+
Investment costs vary depending on capacity configuration, level of automation, and plant conditions, ranging from tens of thousands of US dollars for small lines to millions of US dollars for large lines. Under normal operating conditions, the payback period for a typical medium-sized commercial feed mill (5-10 tons/hour) is approximately 1-3 years, depending on local raw material costs, feed prices, and market sales. RICHI can provide detailed quotes.
What adjustments are needed to the livestock feed production line when producing different animal feeds (pigs, cattle, sheep, chickens, etc.)?
+
Main adjustments include:
- Grinding fineness: Pig and poultry feed requires fine grinding (1-2mm), while ruminant feed requires coarse grinding (3-5mm).
- Formulation system: Multiple feed scales and micro-addition systems are required.
- Pellet size: Different aperture sizes (2-12mm) can be achieved by changing the ring die.
- Conditioning requirements: Aquatic feed requires high maturation, while ruminant feed requires fiber protection.
RICHI livestock feed production lines adopt a modular design, allowing for rapid switching of formulations and process parameters to meet the needs of multi-variety production.
How long does it take to install a livestock feed production line?
+
Small production lines (1-5T/H) take approximately 15-30 days, medium-sized lines (5-20T/H) take approximately 45-60 days, and large production lines take 60-90 days.
What is the quality of the finished pelleted feed?
+
The feed pellets produced by our livestock feed production line are of exceptionally high quality, primarily due to the following three aspects:
- Uniform nutrient mixing: All nutrients (corn, soybean meal, vitamins, etc.) in each batch of feed are mixed very evenly.
- Strong and resistant to breakage: The pellets have a durability index exceeding 95%.
- Excellent gelatinization and easy digestibility: Through steam conditioning, the starch in the feed is fully gelatinized, making it easier for animals to digest and absorb.
What does your after-sales service include?
+
RICHI provides:
- On-site installation and commissioning guidance;
- 12-month warranty;
- Lifetime technical support;
- Spare parts inventory (including consumable parts such as ring dies, pressure rollers, and screens). （View our یوتیوب）
