Animal feed pellet making machine for sale
Introduction of Animal Feed Pellet Making Machine for Sale
Animal feed pellet making machine is a professional equipment designed to process raw materials such as corn, sorghum, wheat, wheat bran, soybean meal, cake meal, forage grass, and fish meal into pellet feed through steam conditioning, pressing, and cutting. It can produce feed for animals including chickens, ducks, geese, pigs, cattle, sheep, rabbits, camels, fish, shrimp, and crabs, and is suitable for farmers to prepare feed by themselves for feeding, as well as for large and medium-sized feed processing plants to produce pellet feed.
RICHI Machinery specializes in producing household and industrial feed pellet machine. Our animal feed pellet making machine for sale features high output, low energy consumption, and excellent pellet forming quality, capable of producing high quality pellet feed for poultry, livestock, aquatic animals, and ruminants. Up to now, our products have been exported to 140 countries and regions, and have won consistent praise from customers at home and abroad.
We can provide a variety of models of feed pellet making machine, with an single-machine output range of 1-40T/H. In addition, we also provide other supporting equipment for feed production lines, such as crushers, mixers, coolers, cleaning and screening equipment, finished product packaging equipment, and conveying equipment.
- Applicable raw materials：corn, wheat, rice, sorghum, wheat bran, soybean meal, forage grass, meat and bone meal, amino acids, and fish meal,etc.
- Capacity: 1-40 T/H
- Main power: 22-315 kW
- Pellet meter: 2-12 mm
- Type: ring die pellet machine
- Custom-made: Yes

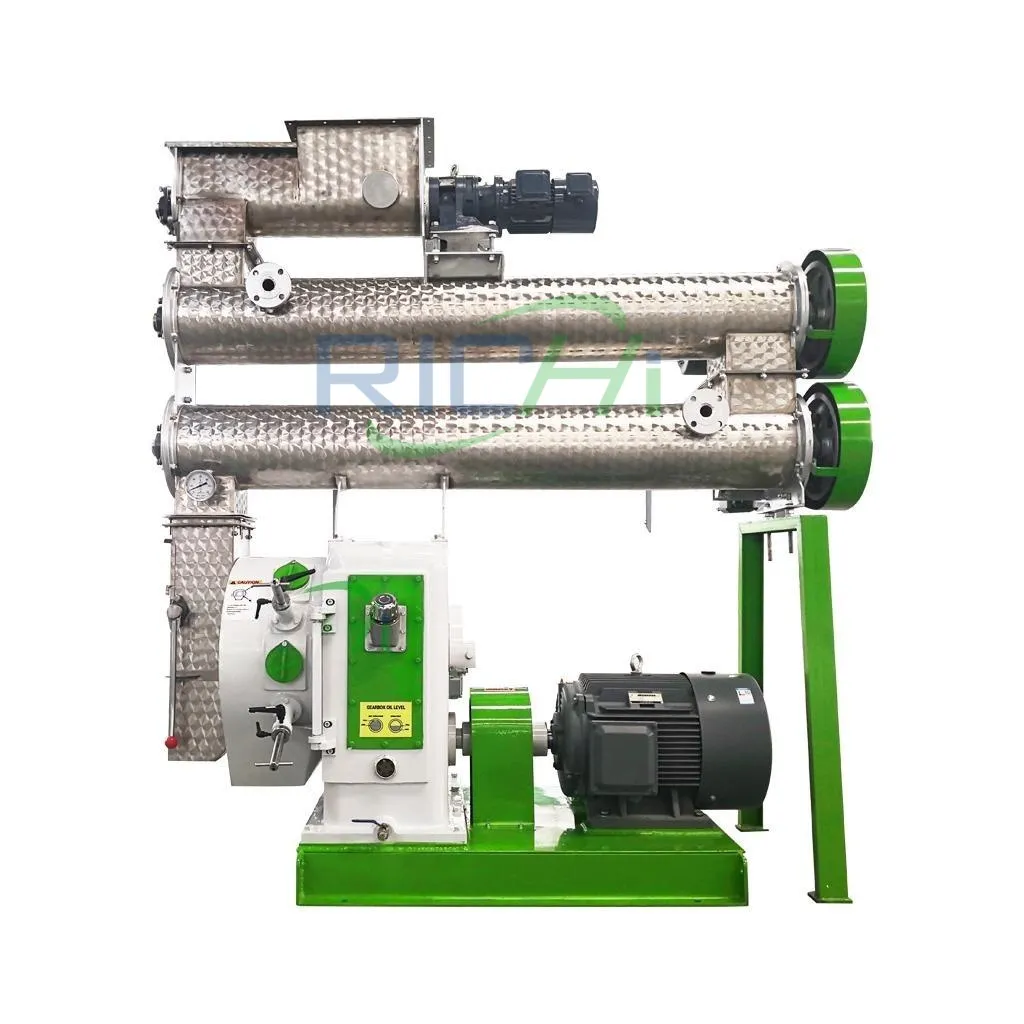

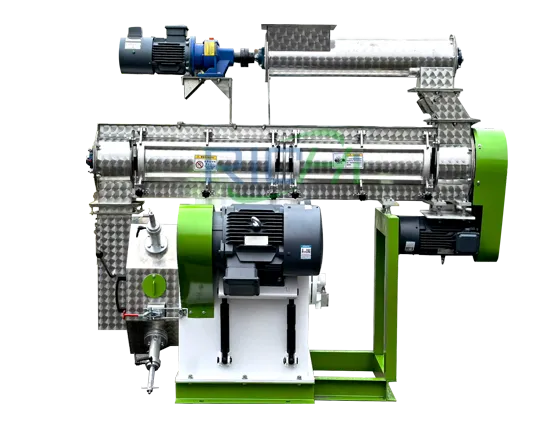

- Conditioner: 1-3 layers. Customers can add conditioners based on different animal feed needs. Single-layer conditioners are generally used for poultry (chicken, duck) and livestock (pig) feeds; double-layer ones for suckling pig or sinking fish feeds; and three-layer ones for shrimp feed.
Versatile Feed Pellet Machine: Your Go-To for All Animal Feed Types
SZLH series animal feed pellet making machine for sale offers wide applicability and is capable of producing high-quality pellet feed for various animals, including: Poultry (chickens, ducks, geese, pigeons, etc.), Livestock (cattle, sheep, pigs, rabbits, etc.), Ruminants (reindeer, deer, camels, alpacas, antelopes, etc.), Aquatic species (fish, shrimp, crabs, etc.)
Various Pellet sizes for Different Animals
Animal feed pellet machine produce various pellets by adjusting formulations and ring dies. Poultry require 2-4mm pellets to prevent selective feeding; ruminants need 4-8mm pellets for proper digestion; fish and shrimp use 1-3mm pellets to avoid nutrient loss in water.
Chicken
Cattle
Duck
Sheep
Rabbit
Fish
Pig
Goose
Technical Features
RICHI animal feed pellet making machine for sale is designed and manufactured using industry-leading technologies and equipment. It features stable performance, high output, low energy consumption, long service life, and a wide application range.
The core components of our feed pellet machine include: wear-resistant alloy steel ring die, high-precision gear transmission system, Siemens high-efficiency motor, configurable 1-3 layer intelligent conditioner, alloy press roller assembly, and variable frequency feeding device. These components work synergistically to ensure exceptional performance in production capacity, energy consumption control, and finished product quality.
01

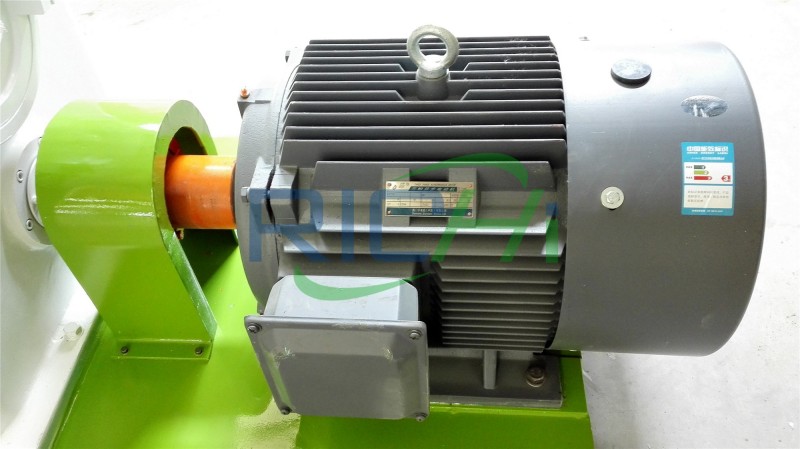

Siemens Motor
Powered by a premium Siemens motor with a speed of up to 1,400 rpm, it ensures robust high-output performance and stable operation. Its energy-efficient design significantly reduces power consumption, effectively saving electricity while maintaining consistent performance.
02

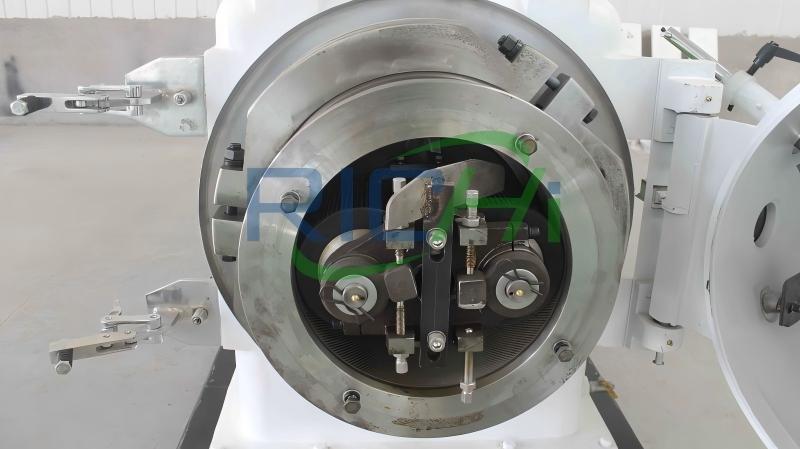

Roller Assembly
Both the press roller shell and the press roller core are made of high-quality alloy materials. After heat treatment, they exhibit strong wear resistance.
Their unique structural design ensures a uniform and stable extrusion effect between the press roller and the ring die, thereby producing high-quality pellet feed.
03

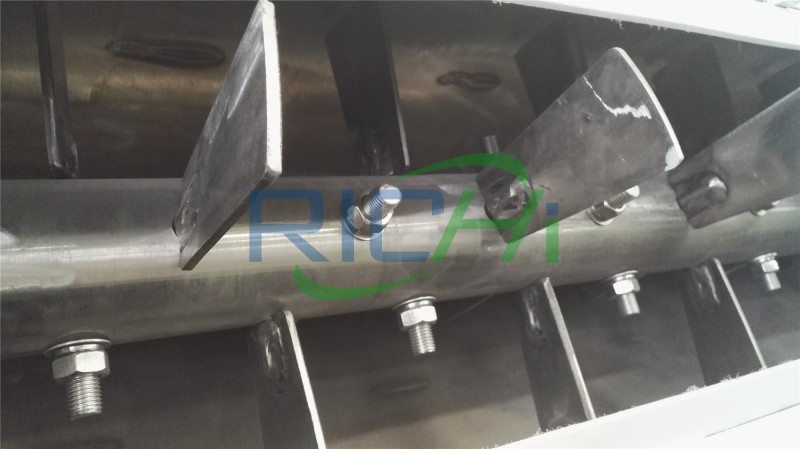

Larger Conditioner
The conditioner has been reinforced and elongated to enhance feed gelatinization. Configurable with 1 to 3 layers to meet different feed production requirements, it offers wider applicability.
The paddles are forged from 304 stainless steel, delivering exceptional wear resistance and hardness.
04

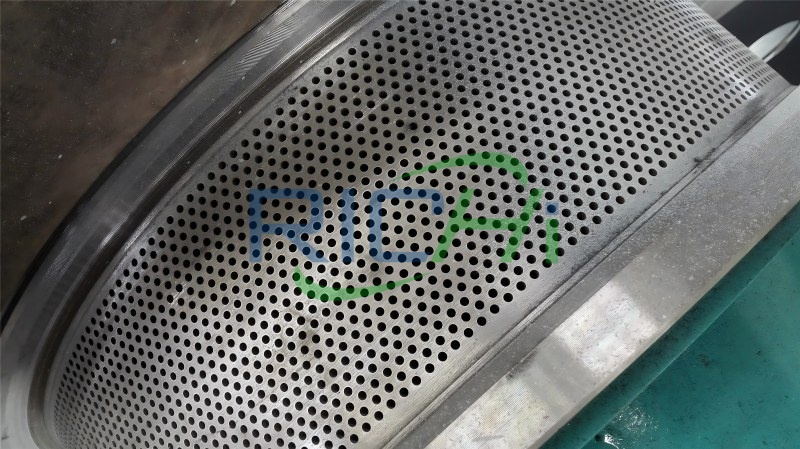

Stainless Steel Ring Die
Made of high-quality alloy steel, it offers exceptional wear resistance and a service life exceeding 10,000 hours. It comes equipped with interchangeable dies featuring various aperture sizes to accommodate different raw materials and achieve desired pellet hardness and dimensions.
05

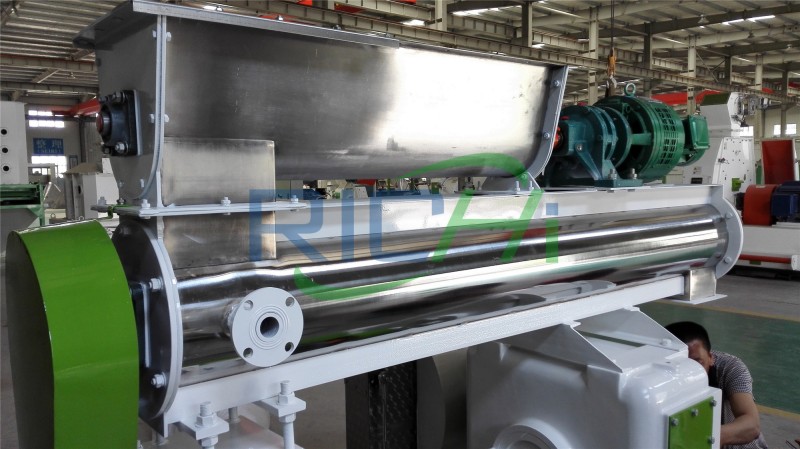

Variable Frequency Feeder
The feeder is controlled by a variable-frequency speed-regulating motor. It can flexibly adjust the feeding speed according to different feed production requirements to achieve precise and uniform feeding. At the same time, it can effectively prevent raw material blockage and improve operation efficiency.
06

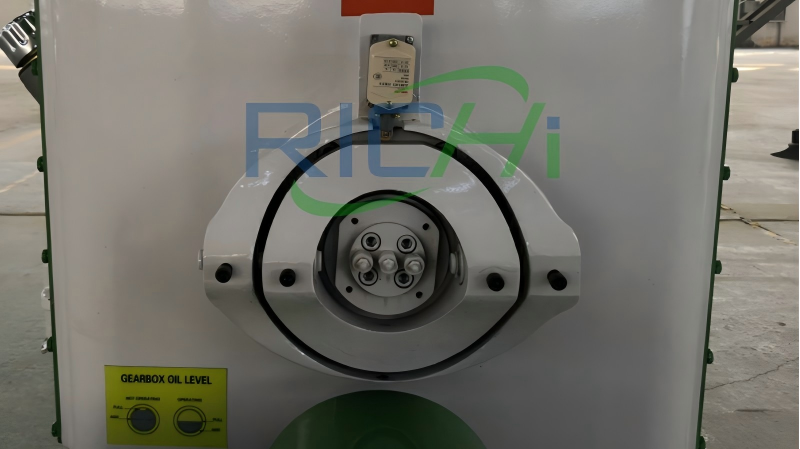

Safety Device
When the equipment is overloaded or an abnormal condition occurs, the safety pin will break and the machine will immediately cut off power, triggering an automatic shutdown to protect key components from severe damage and prevent potential operational hazards.

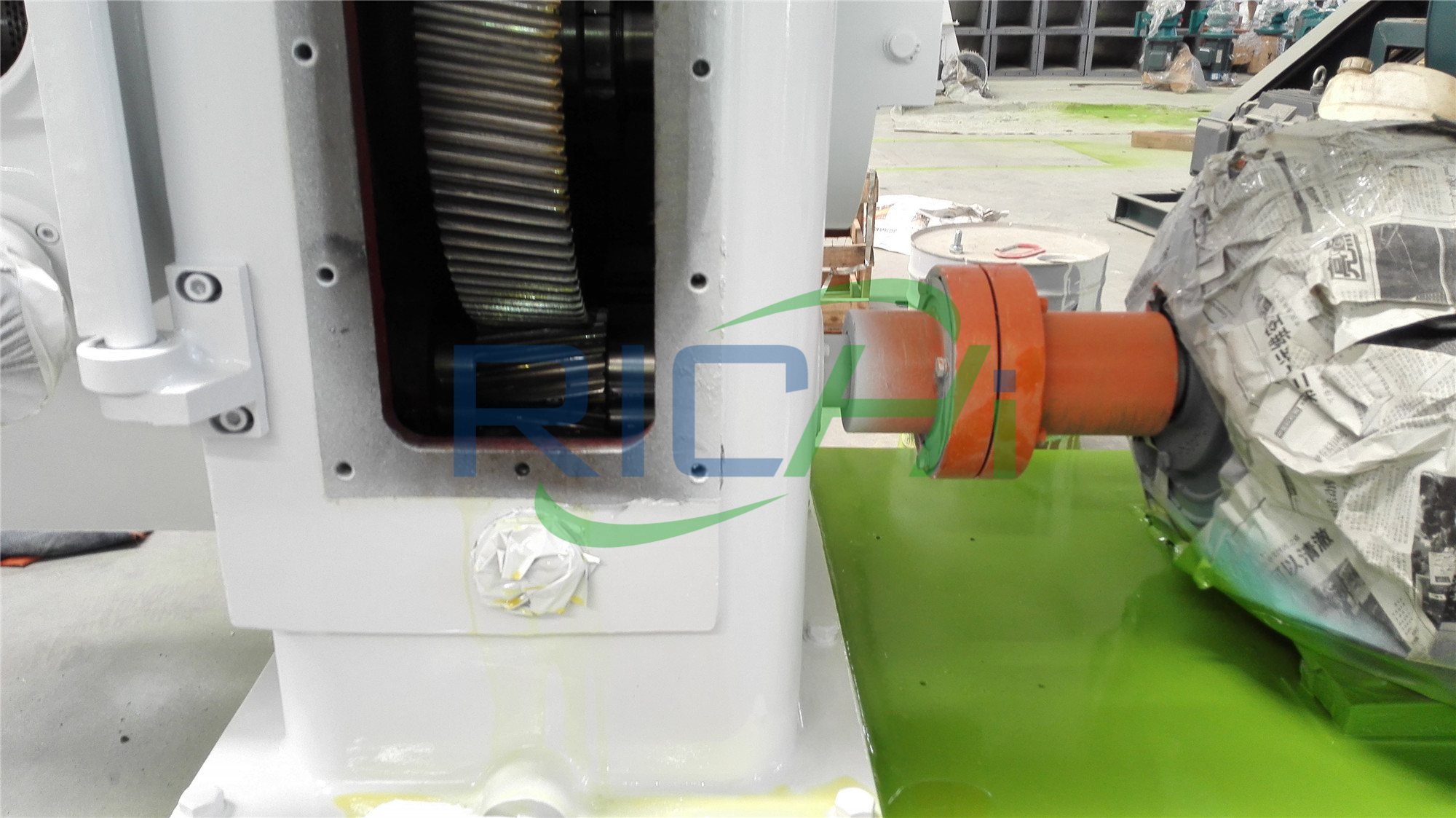

Gear Transmission
Adopts high-precision gear transmission technology, delivering 15-20% higher output compared to belt-driven models. The gears undergo aerospace-grade grinding processing, ensuring superior feed processing precision, stable transmission operation, and significantly reduced noise levels.
With exceptional wear resistance, the system offers a service life of up to 15 years.
Cutting Device
Equipped with a high-efficiency cutter system to precisely control pellet length by adjusting the distance between the cutter and ring die. Crafted from wear-resistant alloy with special surface treatment, the cutter ensures outstanding durability and easy maintenance.
Featuring a modular design for quick disassembly and assembly, it guarantees uniform pellet shape while significantly reducing maintenance time and cost.

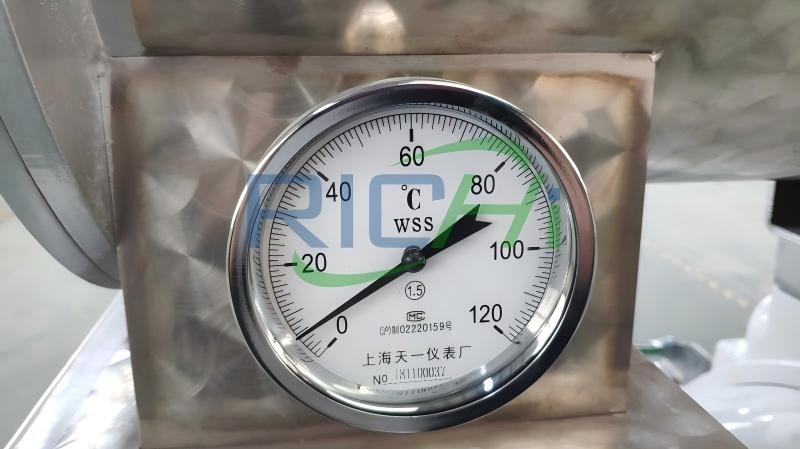

Temperature Gauge
A temperature gauge is installed at the outlet of the conditioner to monitor whether the material conditioning meets the standard. If the produced feed fails to reach the specified value, it indicates insufficient mixing of steam and raw materials.
Adjust the steam valve to introduce more saturated steam, ensuring the feed entering the ring die for pelleting is in an ideal state.

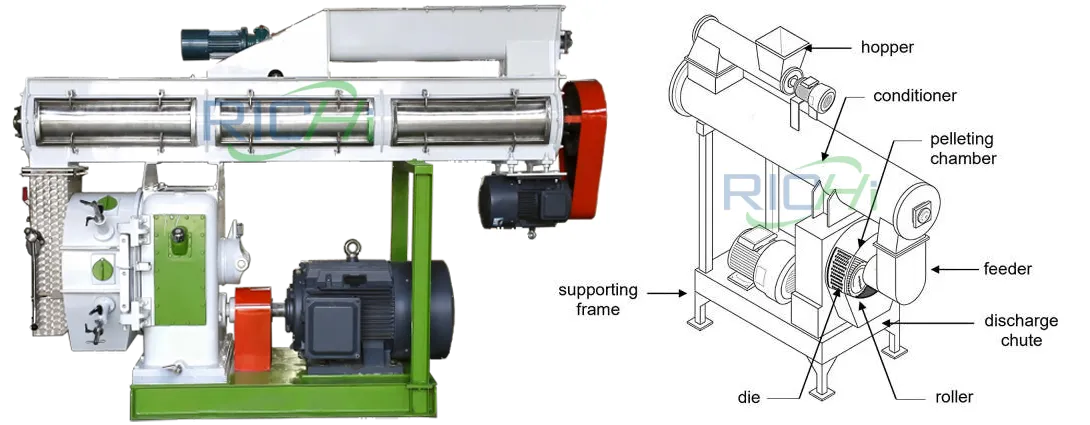

How the Animal Feed Pellet Making Machine Works
As the core equipment for producing pellet feed, the animal feed pellet making machine plays a crucial role in the pelleting process. Through the coordinated operation of each procedure, the pretreated raw materials are converted into pellet feed with uniform specifications.
Below are the working process of feed pellet making machine.
First , the crushed and mixed raw materials—often a blend of grains, protein sources, and additives—are fed into a variable-frequency feeder. This feeder, controlled by a frequency conversion motor, allows for precise adjustment of the feeding speed, ensuring a steady and consistent flow of materials into the next stage.
Next, in the conditioner, raw materials are fully mixed with steam to increase their moisture content. This process simultaneously achieves sterilization, gelatinization, and ripening of the raw materials, ensuring the safety and hygiene of the feed, enhancing its digestibility, and thereby making it more nutritious for animals. The conditioner’s design, often featuring specialized paddle structures, ensures optimal mixing and heat distribution, with some advanced models even allowing for multi-layer conditioning to extend treatment time.
Once conditioned, the materials are transported via a chute into the pelleting chamber, where the heart of the process takes place. Here, a ring die and press rollers work in tandem to exert strong extrusion pressure on the materials. The ring die, made of high-quality alloy steel and featuring precisely drilled holes, rotates while the press rollers force the material through these holes, forming cylindrical pellets. A cutting blade positioned near the die adjusts to slice the extruded feed into the desired length, ensuring uniformity in the final product.
The temperature of the feed pellets coming out of the feed pellet making machine is approximately 80°C, which requires cooling treatment. If smaller feed pellets are needed, a crusher can be used for re-crushing, and finally, a packaging machine is used for packaging.
Technical Specifications of Animal Feed Pellet Making Machine for sale
| Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 | SZLH558 | SZLH678 | SZLH768 |
| Capacity(T/H) | 1-1.5 | 3-4 | 5-6 | 10-12 | 15-16 | 20-22 | 30-33 | 38-40 |
| Main Motor Power(kW) | 22 | 37 | 55 | 110 | 160 | 185 | 250 | 315 |
| Feeder Power(kw) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Conditioner Power(kW) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 | 11 | 11 |
| Pellet Diameter(mm) | 2-12 | |||||||
| Ring Die Inner Diameter(mm) | 250 | 320 | 350 | 420 | 508 | 558 | 673 | 762 |
RICHI animal feed pellet making machine for sale is capable of processing a wide variety of raw materials. We offer multiple models with different output capacities and power specifications to meet diverse customer needs. Customized solutions are also available based on your specific production requirements.
Benefits Of Animal Feed Pellet Making Machine for sale
Animal feed pellet making machine for sale can produce pellet feed. During production, it undergoes steam conditioning, compression, and cutting, with steam sterilization in the process ensuring feed safety. Compared with powdered feed, pellet feed not only has better palatability and higher nutrient absorption efficiency but also is more convenient to store and transport, boasting significant advantages.
Video of Animal Feed Pellet Making Machine for Sale
These video demonstrates the detailed workflow of our animal feed pellet making machine. Through this video, you will gain an intuitive understanding of how raw materials such as corn, sorghum, wheat, wheat bran, soybean meal, cake meal, forage grass, and fish meal into pellet feed through steam conditioning, pressing, and cutting.
Customer Cases
Since its establishment in 1995, RICHI Machinery has successfully assisted thousands of enterprises worldwide in achieving industrial upgrading of animal feed pellet production. Below are our successfully delivered cases globally, and we sincerely invite you to browse and refer to them. If you need to understand the complete technical solutions and implementation details of any project, our engineering team is always ready to provide you with professional interpretation.

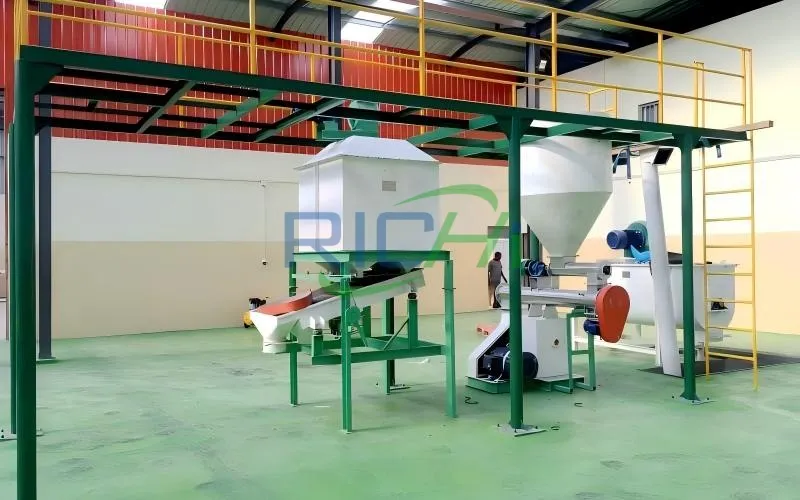

Congo 1-2 T/H animal feed pellet making machine for poultry
The client is a consortium of individual farmers from the Congo. With abundant local cassava resources and fish meal as a high-nutritional-value raw material, they can produce high-quality poultry feed.
Taking into account the power supply conditions and operating costs of the consortium of individual farmers, the project employs equipment with a total power of 22KW. This not only enables efficient and stable production but also effectively controls energy consumption expenses.
- Capacity: 1-2T/H
- Model: SZLH-250 animal feed pellet making machine for sale
- Main motor power: 22kw
- Pellet diameter: 2-4mm
- Raw materials: cassava flour, rice bran, soybean meal, fish meal

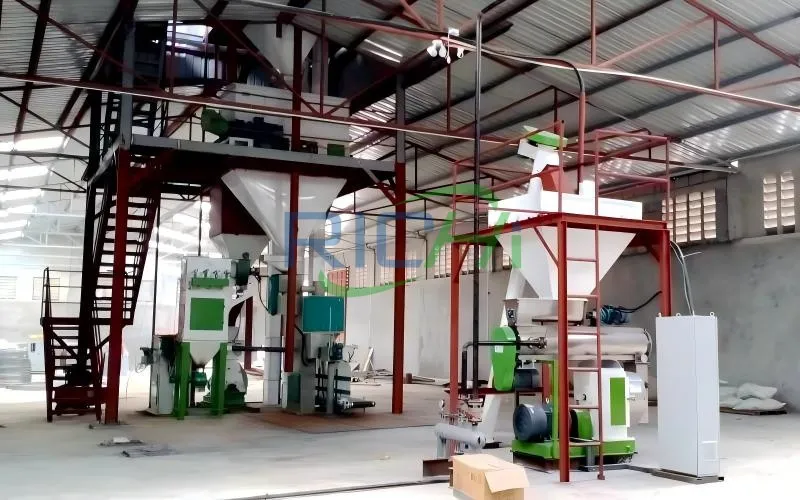

Tanzania 3 – 4 T/H animal feed pellet maker
The client is a small-scale family farm cooperative utilizing locally sourced crops such as corn and cassava as primary raw materials.
To meet the client’s requirements, the animal feed pellet making machine must achieve an hourly output of 3-4 tons while maintaining strict control over both equipment investment and operational costs.
This pellet machine is specifically designed to produce 2-4mm poultry feed pellets tailored to meet the feeding requirements of poultry at different growth stages and easy to operate and maintain.
- Capacity: 3-4T/H
- Model: SZLH-320 animal feed pellet making machine for sale
- Main motor power: 37kw
- Pellet diameter: 2-4mm
- Raw materials: corn, soybean meal, cassava, etc

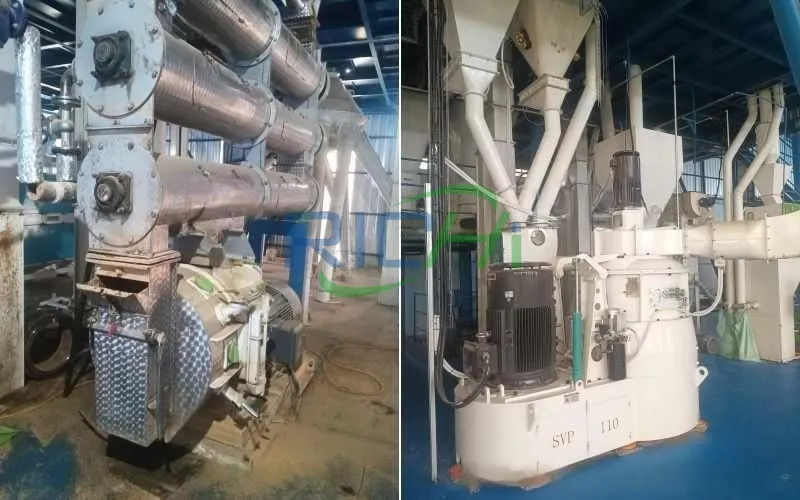

Brazil 5 T/H Fish feed pellet making machine
This Brazilian customer requires a fish feed pellet machine to produce high-value specialty fish feed using unique protein raw materials from the Amazon basin (such as special fish meal, insect protein, and plant protein).
To ensure superior product quality, the feed pellet machine incorporates high-quality ring dies and efficient conditioning systems. A medium-scale production line of 5-10 tons/hour is selected to balance cost-effectiveness and stable operation.
- Capacity: 5T/H
- Model: SZLH-350 animal feed pellet making machine for sale
- Main motor power: 55kw
- Pellet diameter: 1-3mm
- Raw materials: unique protein raw materials from the Amazon Basin
Other Related Animal Feed Pellet Production Equipment
RICHI Machinery is a professional manufacturer specializing in the production of complete sets of equipment for animal feed production lines. In addition to pellet mills, we also provide other supporting equipment for animal feed production lines, such as crushers, mixers, coolers, cleaning and screening equipment, finished product packaging equipment, and conveying equipment.

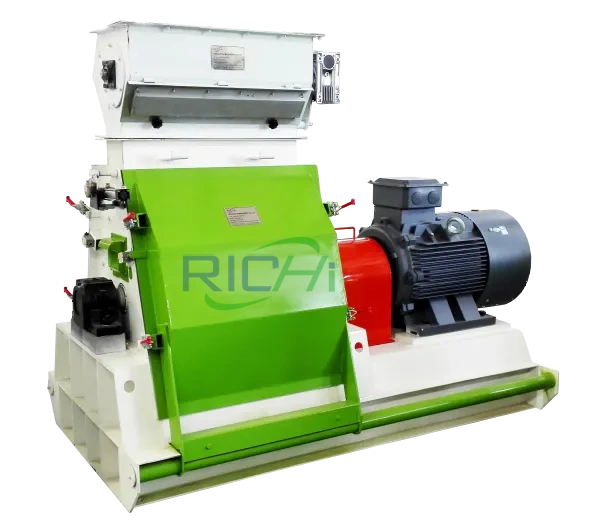

Crushing Equipment
Used in the raw material pretreatment process to crush raw materials to a size suitable for pelleting.

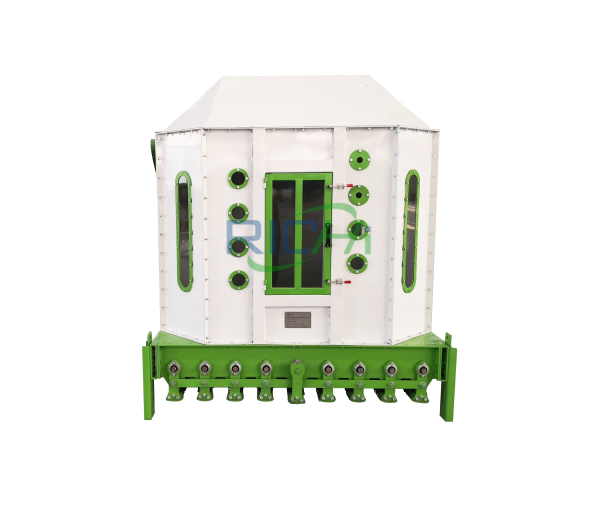

Cooling Equipment
Used to cool the pressed pellet feed to room temperature for easy packaging.

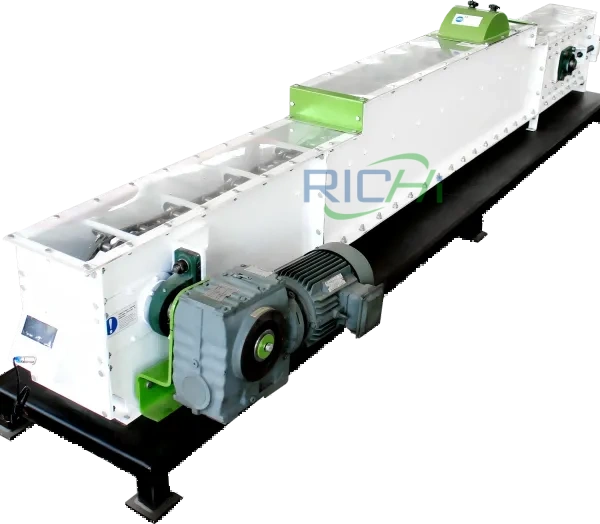

Conveying Equipment
Used to transport materials to designated equipment for processing or to silos.

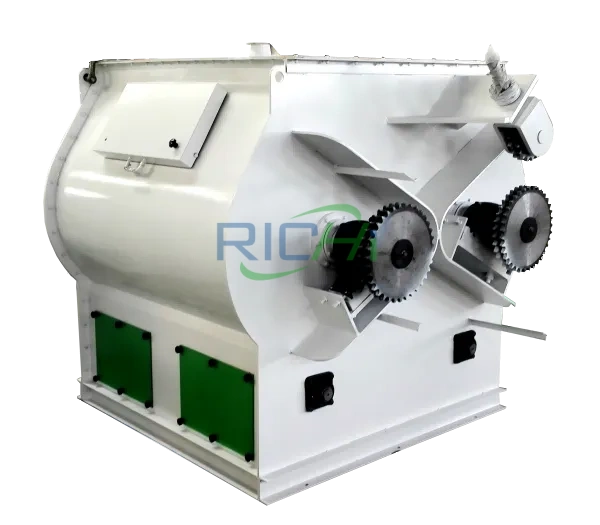

Mixing Equipment
Used to uniformly mix various raw materials together, facilitating subsequent pelleting.

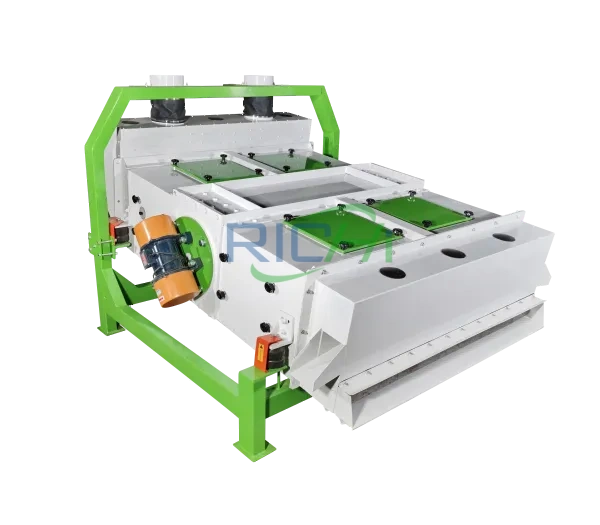

Screening Equipment
Used to remove impurities from materials or sift out unqualified finished pellets.

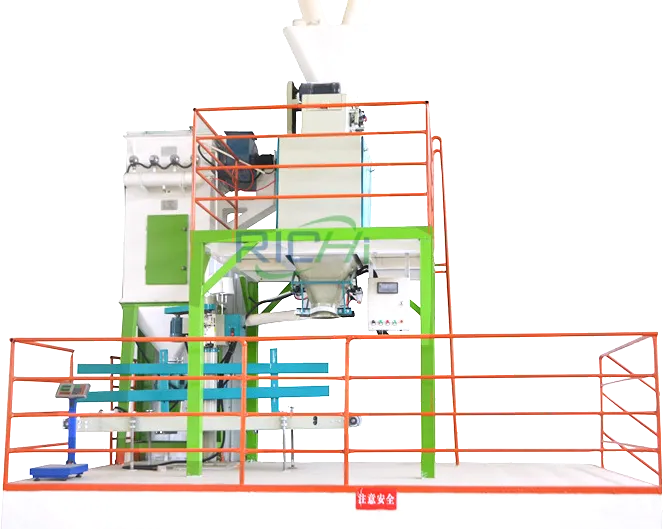

Packaging Equipment
Used to accurately weigh, and sealing finished feed pellets according to the preset weight.
Frequently Asked Questions
Here are some questions you may want to ask. If you have any problem, please contact us.
–
What raw materials can SZLH series animal feed pellet making machine use?
RICHI SZLH series animal feed pellet making machine for sale can process a wide range of raw materials, including corn, sweet potatoes, sorghum, wheat, wheat bran, soybean meal,and wood, along with additives such as fish meal, whey powder, meat and bone meal,and amino acids to produce high-quality feed pellets.
–
What types of animal feed can SZLH feed pellet machine produce?
SZLH series animal feed pellet making machine offers wide applicability and is capable of producing high-quality pellet feed for various animals, including:
- Poultry (chickens, ducks, geese, pigeons, etc.)
- Livestock (cattle, sheep, pigs, rabbits, etc.)
- Ruminants (reindeer, deer, camels, alpacas, antelopes, etc.)
- Aquatic species (fish, shrimp, crabs, etc.)
This versatility allows the machine to fully meet diverse production requirements.
–
How to choose the right animal feed pellet machine?
- Based on the type of animal feed required:
- Poultry (chickens, ducks): Suitable for small pellet feed with a diameter of 2-4mm to avoid feeding difficulties;
- Ruminants (cattle, sheep): Suitable for medium and large pellet feed with a diameter of 4-8mm, matching their chewing and digestive characteristics;
- Aquatic animals (fish, shrimp): Mostly ultra-fine pellet feed with a diameter of 1-3mm to prevent nutrient loss after dissolving in water.
- Based on production scale:
- Small-scale farmers/cooperatives (5-20 tons per day): Select pellet machines with a capacity of 1-4 T/H
- Medium-sized farms (20-50 tons per day): Select pellet machines with a capacity of 5-10 T/H
- Large-scale ranches/feed factories (over 50 tons per day): Select production lines with a capacity of over 10 T/H
–
Do you provide replacement parts?
Yes. We sells the spare parts of the animal feed pellet making machine we produce separately, making it convenient for customers to replace them and reducing your investment costs at the same time.
–
Do you provide after-sales service?
Our animal feed pellet making machine comes with a one-year warranty. In addition, our company provides customers with free lifetime technical guidance and support. If you have any needs, you can consult us at any time—we have customer service staff online 24/7 who will promptly provide services and answer your questions.
